ASSEMBLY AND FITTING OF 3 AND 4 SIDED SURROUND
FOR FLAT FRONT MODEL IS 700
IMPORTANT NOTE: When fitting the surround to
the heater the main door and the lower front panel
must be removed. Please keep the wiring intact when
removing the lower front panel.
Note: Door and lower front panel
must not be in place when fitting the
surround to heater.

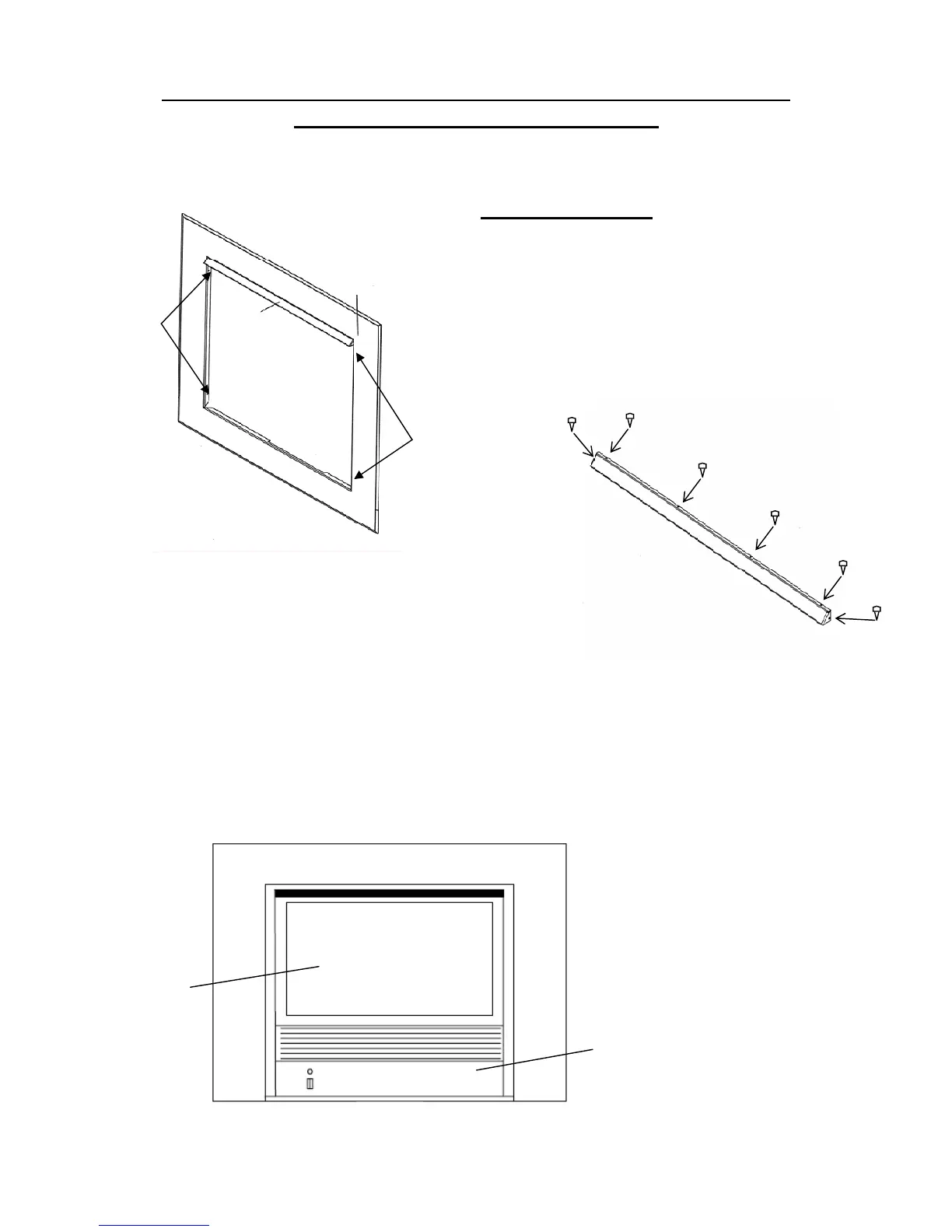

FITTING OF LOUVRE
Place the louvre in the surround as
shown in Diagram A and fasten with
the six screws supplied as shown in
Diagram B.
DIAGRAM B
FITTING OF SURROUND
Place the surround as shown in Diagram A on the flat
front heater as shown in Diagram C and fasten the
surround to the heater with the 4 screws supplied at
points A, B, C and D.
DIAGRAM A
Fastening
Points
1. Surround
2. Louvre
Fastening
Points
(A)
(B)
(C)
(D)
(2)
(1)
DIAGRAM C
(3)
(4)
3. Main Door
4. Lower Front Panel
27
