Auslock Slim 31B - Installation; Installation Diagram

2
3. Installation

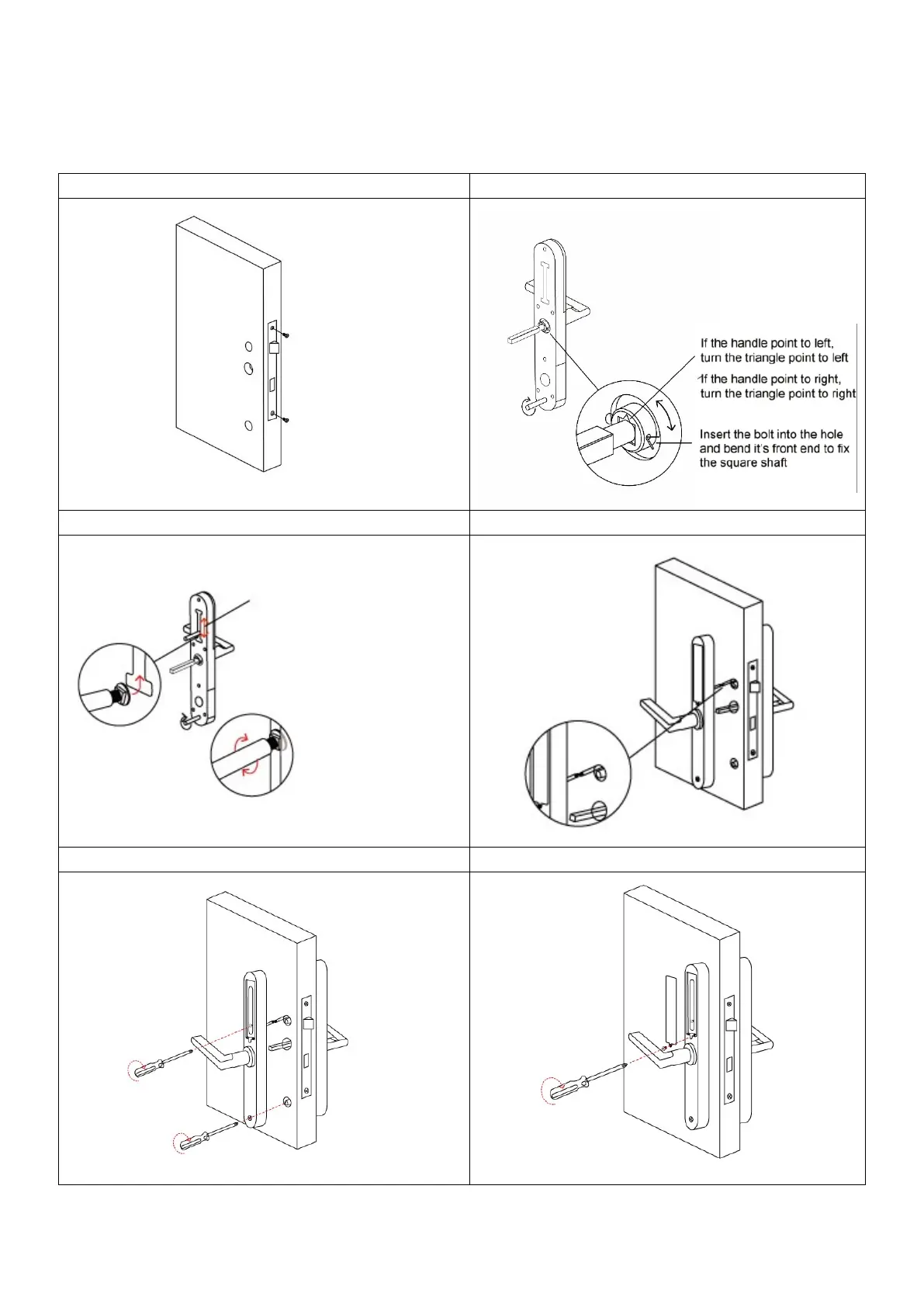

3.1 Installation Diagram
Step 1 Install Mortise
Step 2 Install Square Shaft
Step 3 Install Sliding Screw Casing
Step 4 Connect Front and Back Panels
Step 5 Install Back Panel
Step 6 Install the Battery
The screw casing
place is adjustable
from 55mm to 100mm
far from the square
shaft.
Depending on the
location of the hole-
drilling or the old door
hole..
