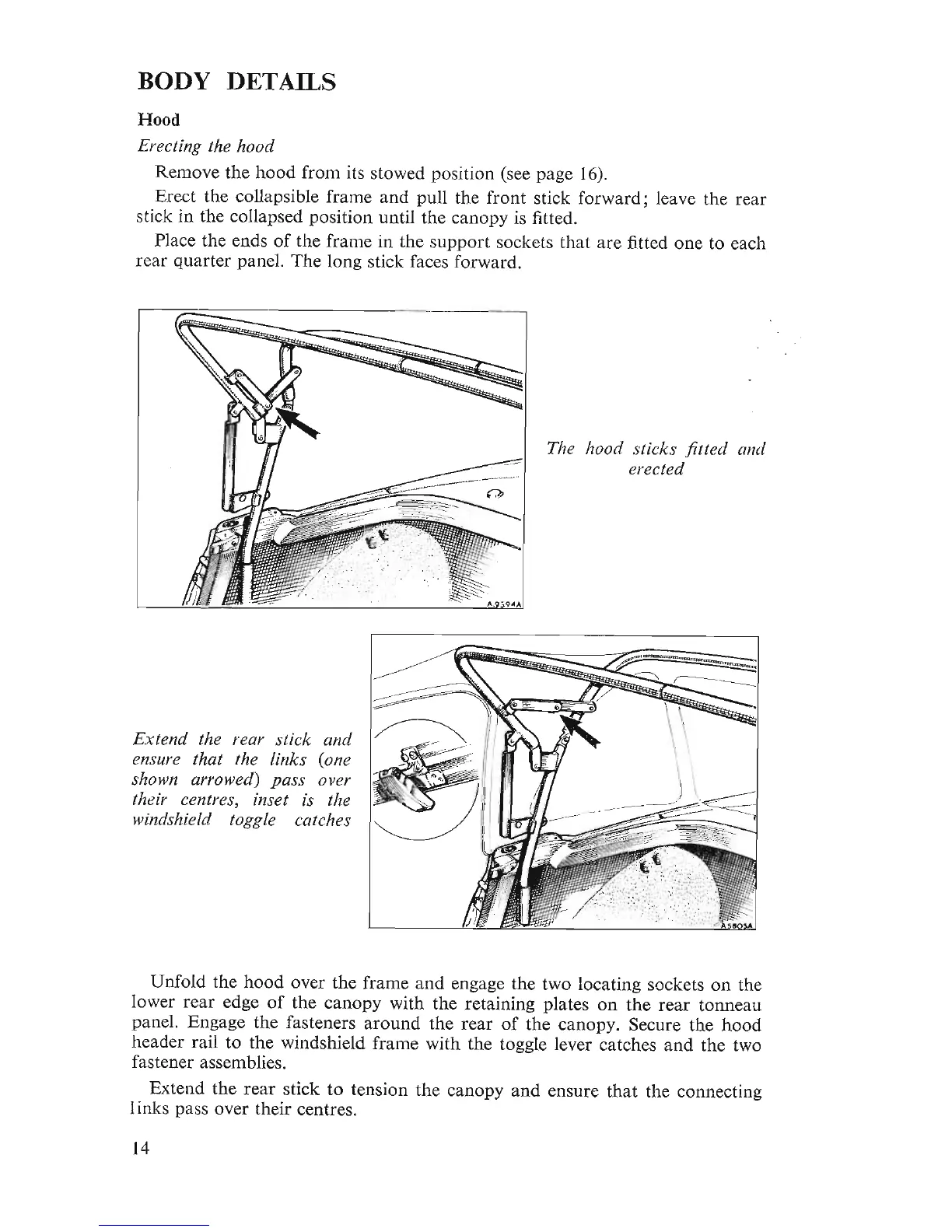

BODY DETAILS
Hood
Erecting the hood
Remove the hood from its stowed position (see page 16).
Erect the collapsible frame and pull the front stick forward; leave the rear
stick in the collapsed position until the canopy is fitted.
Place the ends of the frame in the support sockets that are fitted one to each
rear quarter panel. The long stick faces forward.
The hood sticks fitted and
erected
E
xtend
the rear stick and
ensure that the links (one
shown arrowed) pass over
their centres, inset
is the
windshield toggle catches
Unfold the hood over the frame and engage the two locating sockets on the
lower rear edge of the canopy with the retaining plates on the rear tonneau
panel. Engage the fasteners around the rear of the canopy. Secure the hood
header rail to the windshield frame with the toggle lever catches and the two
fastener assemblies.
Extend the rear stick to tension the canopy and ensure that the connecting
Iinks pass over their centres.
14
