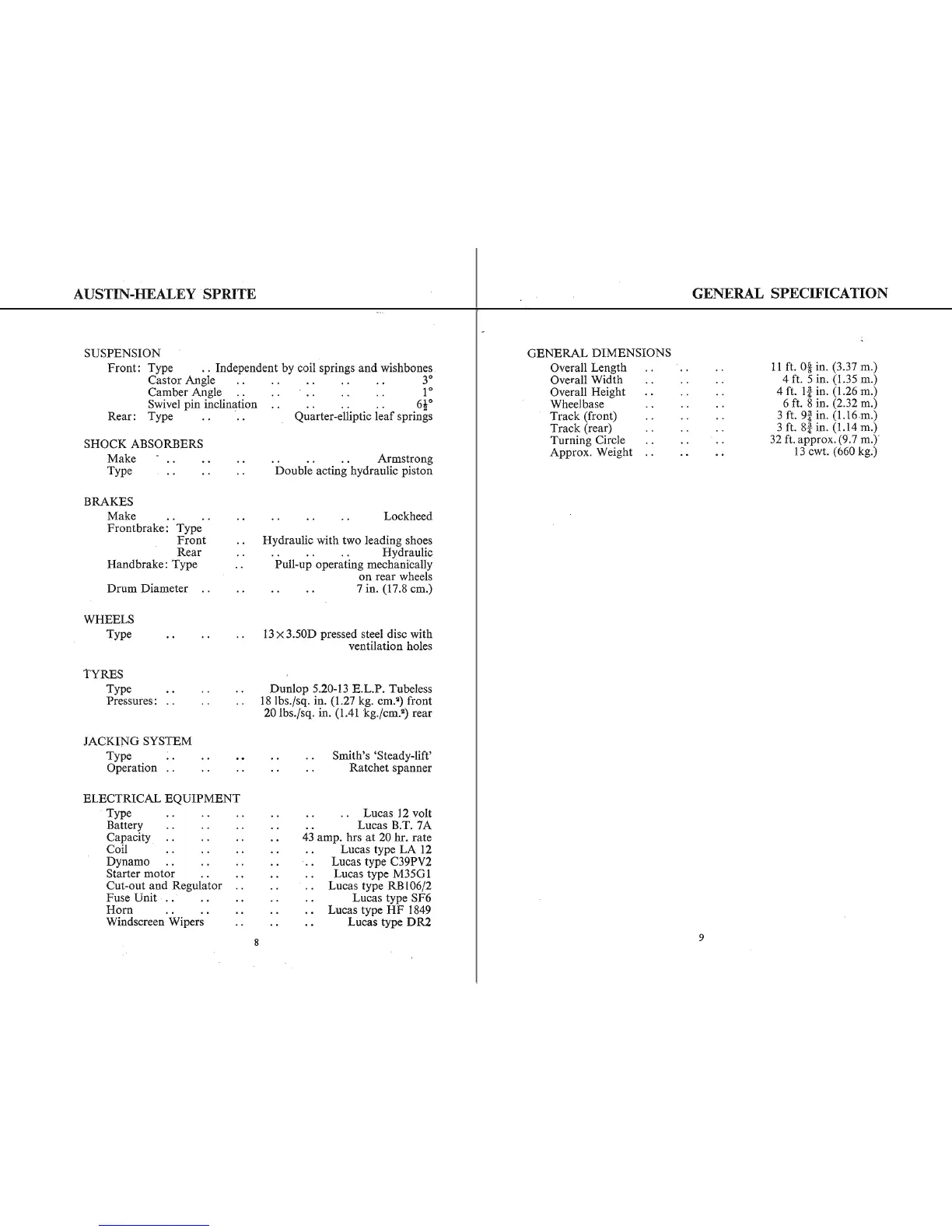

GENERAL SPECIFICATION
AUSTIN-HEAI,EY SPRITE
SUSPENSION GENERAL DIMENSIONS
Make
Type
Rear: Type
SHOCK ABSORBERS
Front: Type . . Independent
Castor Angle
Camber Angle
Swivel pin inclination
by coil springs and wishbones,
3
0
1
0
6p
Quarter-elliptic leaf springs
Overall Length
Overall Width
Overall Height
Wheelbase
Track (front)
Track (rear)
Turning Circle
Approx. Weight
11 ft. 0$ m. (3.37 m.)
4 ft. 5 in. (1.35 m.)
4 ft. 1( in. (1.26 m.)
6 ft. 8 in. (2.32 m.)
3 ft. 9
4' in. (1.16.m.)
3 ft. 8 —,' in. (1.14 m.)
32 ft. approx. (9.7 m.)'
13 cwt. (660 kg;)
Armstrong
Double acting hydraulic piston
BRAKES
Make
Frontbrake: Type
Front
Rear
Handbrake: Type
Drum Diameter
Lockheed
Hydraulic with two leading shoes
Hydraulic
Pull-up operating mechanically
on rear wheels
7 in. (17.8 cm.)
WHEELS
Type 13 x 3.50D pressed steel disc with
ventilation holes
TYRES
Type
Pressures:
Durilop 5.20-13 E.L.P. Tubeless
18 lbs./sq. in. (1.27 kg. cm.') front
20 lbs./sq. in. (1.41 kg./cm.') rear
JACKING SYSTEM
Smith's 'Steady-lift'
Ratchet spanner
Type
Operation
ELECTRICAL EQUIPMENT
Lucas 12 volt
Lucas B.T. 7A
43 amp. hrs at 20 hr. rate
Lucas type LA 12
Lucas type C39PV2
Lucas type M3561
Lucas type RB106/2
Lucas type SF6
Lucas type HF 1849
Lucas type DR2
Type
Battery
Capacity
Coil
Dynamo
Starter motor
Cut-out and Regulator
Fuse Unit
Horn
Windscreen Wipers
