Autech Technology R202 - Receiving Units

RECEIVING UNITS
3
A
B
F
E
D
C
Drilling template
A = 150mm
B = 75 mm
C = 357,5mm
D = 118,5mm
E = 167mm
F = 350,5mm

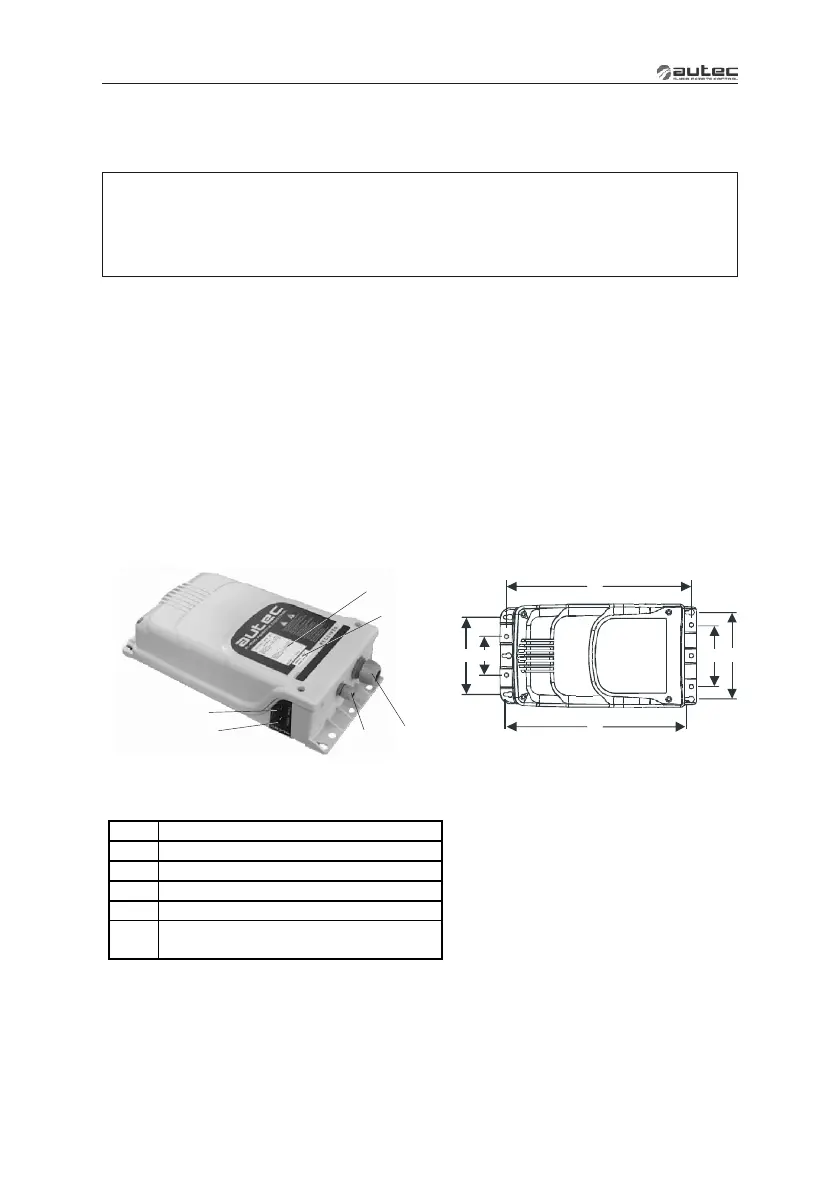

RECEIVING UNIT TYPE R202
These receiving units are equipped with a safety function called SAFETY that protects
the “radio remote control + machine” system, when it is in neutral (rest position), from
involuntary movements caused by possible radio remote control faults.
LIE&LAA0
A
B
C
D
F
E
Page 5
The receiving unit
- SERIES LIGHT
- SERIES MODULAR
Type R202 and Type R302 can be used with the following transmitting
unit:
A
cable holder (opt. plug)
B
data technical plate
C
identification plate
D
POWER light
E
ENABLE light
F
coaxial cable exit for stylus antenna
or for blinker (when present))
