Desktop operation when all keys of Mercedes-Benz
vehicle are lost
Use this method for all Mercedes-Benz vehicle EISs
supported by Autel Diagnostic tablets supporting IMMO
and Key Programming functions.
Reading engine password operation on bench
Use this method for Bosch ECUs supported by Autel
Diagnostic tablets supporting IMMO and Key
Programming functions.
IMPORTANT: Follow diagrams exactly and use the proper accessory adapter when connecting G-BOX3 to vehicle EIS/ECU.
Packing List
Warranty
Autel guarantees that the G-BOX is free from material and manufacturing for a period of 12 months. Autel will at its discretion replace any
merchandise during the warranty period. The warranty shall be void if any of the following occurs:
1. Improper installation of the product;
2. Improper use;
3. Product damage due to collision, man-made damage or natural disasters;
4. Exceed the product-specific use restrictions.
2
3

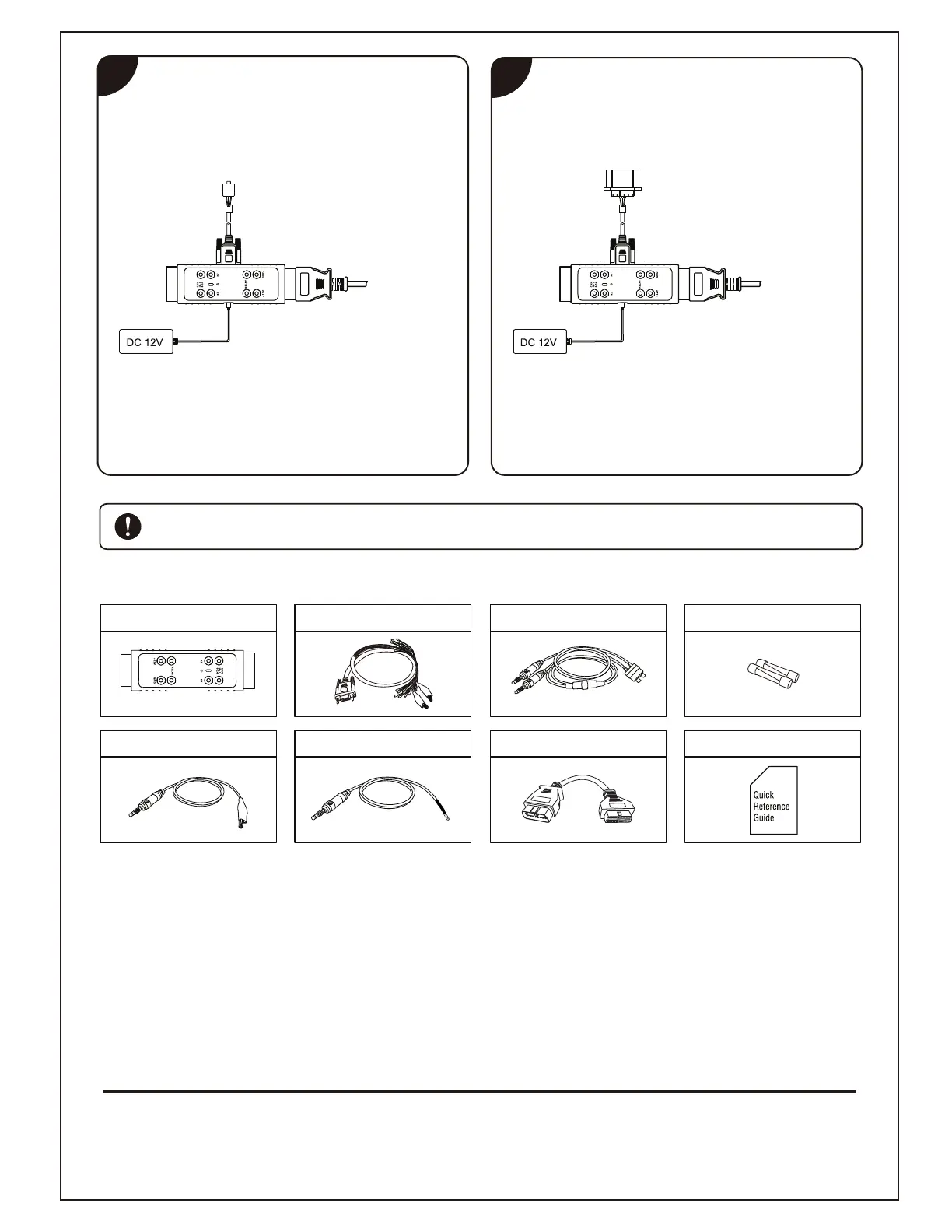

Connection Steps:
1. Connect the G-BOX3 to the Mercedes-Benz EIS using
the supplied DB15 cable.
2. Connect to the DC port of G-BOX3 using a power
adapter (DC 12V).
3. Connect the G-BOX3 to the Autel Diagnostic Tablet.
Connection Steps:
1. Connect the G-BOX3 to Autel Diagnostic Tablet.
2. Connect the G-BOX3 to engine ECU.
3. Connect to the DC port of G-BOX3 using a power
adapter (DC 12V).
G-BOX3
Clamp Cable x2 OBDII Extension Cable
DB15 Cable Fuse Cable
Quick Reference Guide
Fuse(5A) x2
K-line Cable
http://pro.autel.com / www.autel.com / support@autel.com
0086-755-86147779 (China HQ) / 1-855-288-3587/1-855-AUTELUS (North America)
0049 (0) 61032000522 (Europe) / (+507) 308-7566 (South America) / 03 9480 2978 / +61 476293327 (Australia)
©Autel Intelligent Technology Corp., Ltd. All Rights Reserved.
For service and support, please contact us.
Connect to EIS
Connect to
Autel Diagnostic
Tablet
Connect to Engine ECU
Connect to
Autel Diagnostic
Tablet
