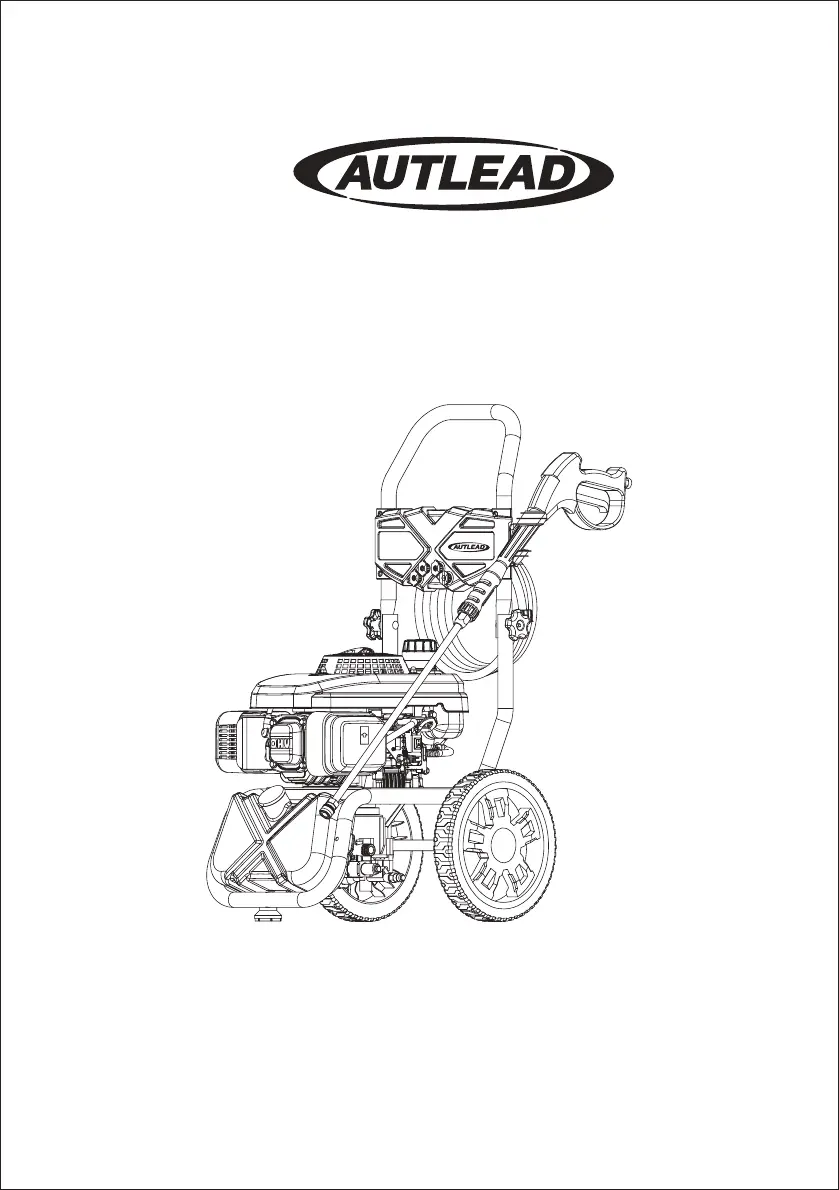

AUTLEAD GSH01A - User Manual

Questions and Answers

M
Mr. Lawrence MillerAug 4, 2025
Why AUTLEAD GSH01A Pressure Washer not reaching high pressure?
- K
  Kenneth CallahanAug 5, 2025
  If your AUTLEAD Pressure Washer isn't reaching high pressure, there might be a few reasons: * The diameter of your garden hose might be too small. Try replacing it with a 5/8 inch or larger hose. * Your water supply could be restricted. Check the garden hose for any kinks, leaks, or blockages. * You might not have enough inlet water supply. Ensure the water is turned on full force and inspect the hose for issues. * The water inlet filter might be clogged. Remove the filter and rinse it in warm water. * The black detergent nozzle may be attached. Replace it with a high-pressure nozzle.
M
Melissa BuckleyAug 10, 2025
Why does AUTLEAD GSH01A pressure go up and down?
- M
  Michael KingAug 10, 2025
  If the output pressure of your AUTLEAD Pressure Washer varies between high and low, it could be due to several reasons. The pump might be sucking air, so check that hoses and fittings are airtight, then turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle. Also, the water inlet filter may be clogged; remove it and rinse it in warm water. An obstructed spray nozzle can also cause this issue; blow out or remove any debris with a fine needle. Lastly, a calcified gun, hose, or spray wand can cause pressure variations; run distilled vinegar through the detergent tank to resolve this.
J
johnbellAug 14, 2025
What to do if AUTLEAD GSH01A not sucking detergent?
- T
  tinacoxAug 14, 2025
  If your AUTLEAD Pressure Washer isn't dispensing detergent, several factors could be the cause. First, check that the detergent suction tube is properly connected to the machine. If it is, the detergent might be too thick; try diluting it, or use Kärcher detergent for best results. A clogged filter on the detergent suction tube could also be the culprit; run warm water through it to remove any debris. Additionally, inspect the detergent suction tube for damage or clogs, and remove any obstructions or replace the tube if necessary. Ensure a high-pressure nozzle isn't attached, and replace it with the black detergent nozzle. Also, check the spray nozzle for obstructions, and blow out or remove any debris with a fine needle. Finally, make sure all fittings are tightened.
B
Brandon NorrisAug 19, 2025
How to fix AUTLEAD GSH01A spray wand leaks?
- C
  Christopher SmithAug 20, 2025
  If the spray wand of your AUTLEAD Pressure Washer is leaking, it might not be properly attached, or the o-ring or plastic insert could be broken. Try turning the swivel nut of the gun clockwise until the connection is tight.
C
Christopher HallAug 26, 2025
Why is AUTLEAD GSH01A pump noisy?
- O
  ohartAug 26, 2025
  If your AUTLEAD Pressure Washer pump is noisy, it could be due to not enough gas or engine oil. Check that hoses and fittings are airtight. Turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle.
E
Eric McconnellAug 30, 2025
Why is my AUTLEAD GSH01A leaking water from pump?
- A
  Alicia HollandAug 30, 2025
  Water leaking from the pump of your AUTLEAD Pressure Washer (up to 10 drops per minute is permissible) can be due to loose fittings or damaged/worn water seals. Check the fittings. It could also be due to the activation of the thermal protection device, which will auto-reset. Avoid running the pump for more than 5 minutes without spraying.

Summary

Specifications

Model Overview

Hazard Levels

DANGER Definition

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING Definition

Indicates a potentially hazardous situation, which, if not avoided, could result in death or injury.

CAUTION Definition

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury or property damage.

Safety Instructions

General Safety Precautions

Read instructions, stay alert, avoid fatigue/influence, clear area, maintain balance, wear protection, follow maintenance.

Injection and High Pressure Hazards

Do not direct stream at persons. High pressure jets are dangerous if misused against persons, animals, or devices.

Electrical and Chemical Hazards

Do not spray electrical connections. Do not use acids, solvents, or flammable materials.

Gun Kickback and Safety Lock

Hold with both hands due to gun kickback. Engage safety lock when not in use or replacing nozzles.

California Proposition 65 Warning

Engine exhaust contains chemicals known to cause cancer, birth defects, or reproductive harm. Spark arrestor may be required.

Asphyxiation and Fire;Explosion Risks

Operate in well-ventilated areas away from open flames. Do not add fuel when hot. Do not spray flammable liquids.

Hot Surfaces and Operation

Machine has hot surfaces causing burns. Operate away from children. Do not touch hot surfaces. Do not leave unattended. Avoid tipping.

Water Supply (Cold Water Only)

Water Supply Requirements

Follow local regulations, use filter, minimum 5/8" hose, 2.6 GPM flow rate, max 122°F/50°C temperature.

Water Contamination and Operation Warnings

Do not draw contaminated water. Use clean source and filter. Do not operate without water turned on.

Assembly Instructions

Part Identification

Diagrams showing main frame, handle, gun hook, knobs, bolts, and pressure hose.

Handle and Frame Assembly

Attach the handle and main frame using knobs and bolts.

Gun Hook Attachment

Attach the gun hooks to the handle.

Wheel Installation

Install wheels onto the main frame by inserting the spring-loaded axle.

Preparation

Oil Level Check and Refill

Check oil level using dipstick. Fill with SAE 10W-30 oil if low. Change oil after 5 hours, then every 50 hours.

Fuel Level Check

Ensure sufficient fuel before operating. The engine is 4-cycle, requiring separate fuel and oil reservoirs.

Air Filter Maintenance

Check air filter after storage. Replace annually. Clean filter with kerosene and engine oil if dirty.

Operating Instructions

Starting Procedure

Connect garden hose, connect spray gun/hose, open water source.

Engine Start-up

Turn engine switch ON, pull choke CLOSE, release pressure, pull recoil cord, pull choke OPEN. Repeat if needed.

Cleaning Procedure

Position wand 6-8" (15-20cm) from surface at a 45° angle.

Using the Accessories

Quick Connect Nozzles

Use color-coded nozzles (0°, 15°, 40°, Soap) for different spray widths and cleaning tasks.

Nozzle Application Guidelines

0° (Red): Stubborn dirt. 15° (Yellow): Surface dirt. 40° (White): Moderate dirt. Soap (Black): Low pressure detergents.

Nozzle Safety Checks

Ensure nozzles click securely into place. Pull nozzle to confirm proper seating before operation.

General Spraying Safety

Never point spray nozzle at yourself, others, or animals to avoid serious injury.

Working with Detergents

Detergent Application

Use black detergent nozzle for low pressure. Fill detergent tank with approved detergent.

Detergent Usage Warnings

Do not use bleach, solvents, ammonia, or acid-based products. These can damage the unit and surface and void warranty.

Shutting Down & Clean Up

Detergent Flush Procedure

Flush detergent system with 1 gallon of fresh water to remove residue.

Engine and Water Shutoff

Turn engine OFF, close fuel valve, turn off water source. Release pressure and engage safety lock.

Hose Disconnection and Storage

Disconnect garden and high-pressure hoses. Store hoses properly. Avoid kinks.

Pump Protection (No Guard)

If Guard is unavailable, disconnect water, run engine briefly to expel water, turn off immediately.

Storage Precautions

Store in a room not reaching freezing temperatures. Do not store near heat sources.

Winterizing & Long-Term Storage

Antifreeze Application

Use antifreeze for winter storage and cleaning to protect pump from freezing and wear.

Winterizing Procedure

Turn engine off, disconnect hoses, add antifreeze to pump, pull starter rope to circulate.

Maintenance Instructions

Pump Inspection

Routinely inspect pump for oil leaks. Contact service center if leaks are noticed.

Engine Maintenance

Perform engine maintenance according to the engine manufacturer's specifications.

Cleaning Tips

Deck Cleaning

Pre-rinse deck, limit work area, apply detergent, rinse at high pressure, clean top-to-bottom, left-to-right.

Cars, Boats & Motorcycles Cleaning

Pre-rinse vehicle, apply detergent bottom-to-top, rinse at high pressure, wipe dry.

House Siding Cleaning

Pre-rinse siding, limit work area, apply detergent bottom-to-top, rinse at high pressure, clean top-to-bottom.

Cement Patios, Brick & Stone Cleaning

Pre-rinse surface, limit work area, apply detergent, rinse at high pressure, clean top-to-bottom, left-to-right.

Barbecue Grills, Outdoor Power Equipment & Gardening Tools Cleaning

Pre-rinse equipment, apply detergent, rinse at high pressure, clean top-to-bottom, left-to-right.

Patio & Lawn Furniture Cleaning

Pre-rinse furniture, apply detergent at low pressure, rinse at high pressure, clean top-to-bottom, left-to-right.

Recommendations

Surface Cleaning Tests

Test spray pattern and distance on inconspicuous area before cleaning.

Painted Surface Caution

Use caution on peeling/chipping painted surfaces as pressure washer may remove loose paint.

Food Contact Surfaces

Flush surfaces with drinking water if they come in contact with food.

Optional Accessories

Troubleshooting

Engine Will Not Start

Check fuel, choke position, ignition switch, and pressure release. Refer to engine manual for details.

Unit Does Not Reach High Pressure

Check hose diameter, water supply, inlet filter, and ensure correct nozzle is attached.

Output Pressure Varies

Check for air in pump, clogged inlet filter, obstructed spray nozzle, or calcified parts.

No Detergent

Check detergent tube connection, filter, thickness, or if a high-pressure nozzle is attached.

Garden Hose Connection Leaks

Tighten fittings or insert a new rubber washer if missing/worn.

Spray Wand Leaks

Ensure spray wand is properly attached. Check for broken o-ring or plastic insert.

Pump Is Noisy

Check fuel/oil levels and hose/fitting tightness. Purge pump if necessary.

Water Leaks From Pump

Check for loose fittings. Water seals may be damaged or worn. Thermal protection may activate.

Oil Drip

Oil seals may be damaged or worn. Visit website or service center for assistance.

Warranty Information

Engine and Component Warranties

OHV engines, pumps, engines warrantied for 2 years. Frames, handles, tanks for 1 year. Accessories for 90 days.

Warranty Claim Process

Provide purchase receipt for warranty claims. Locate service center via website.

Warranty Exclusions

Warranty does not cover reconditioned, used, demonstration models, or items purchased on auction sites.

AUTLEAD GSH01A Specifications

General

Flow Rate	1.6 GPM
Power Source	Electric
Hose Length	20 ft
Cord Length	35 ft
Water Flow	1.6 GPM
Motor Power	1800 W
Motor	Universal
Nozzles Included	0°/15°/25°/40°
