8 13
Important Note: A damaged battery must be replaced before
proceeding.
Carefully perform the following before attempting any battery
charging.

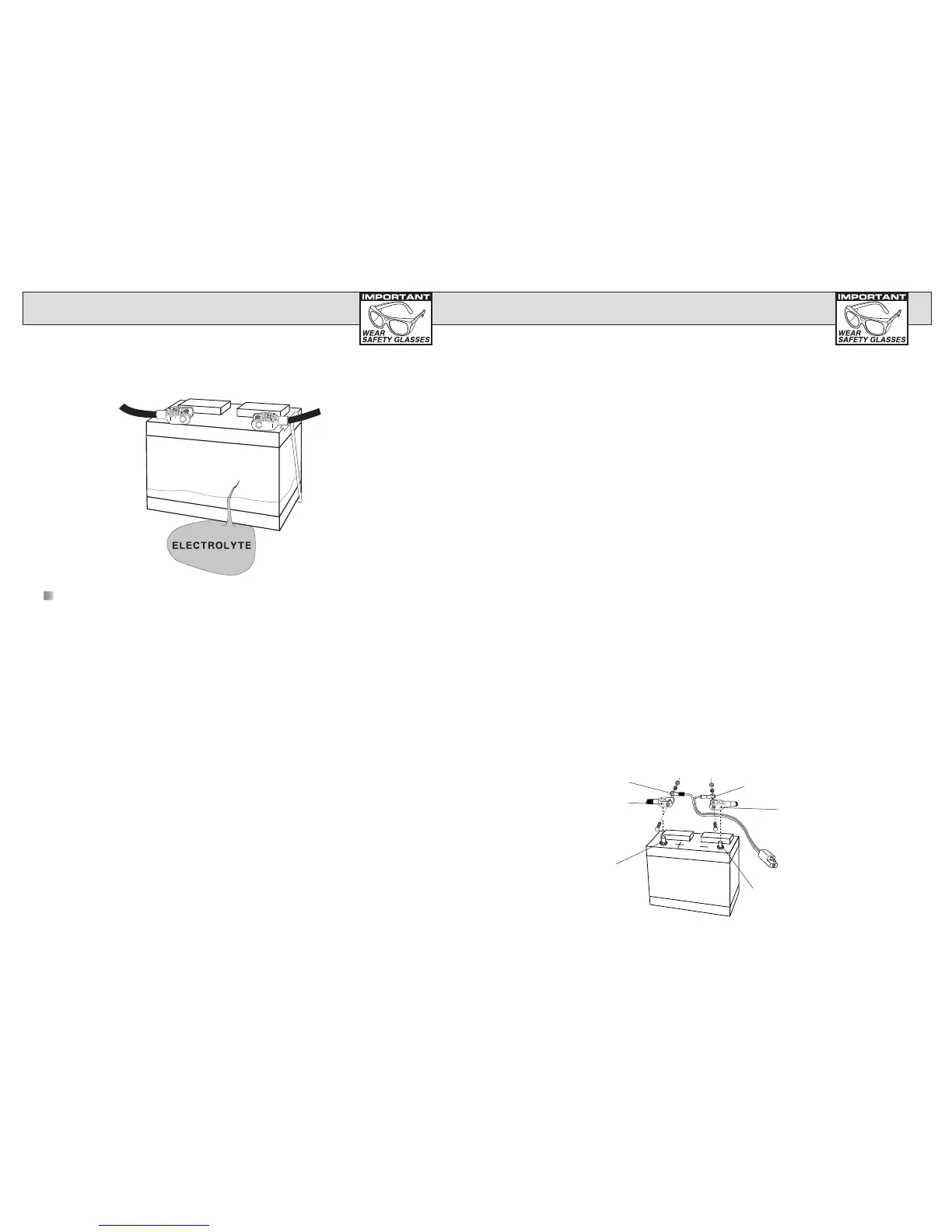

VISUAL CHECK
OPERATING INSTRUCTIONS
1. Check that the Battery Extender is NOT plugged in to an AC outlet before
connecting the ring terminals to the battery.
2. Locate the positive (+) terminal post of the battery, it is usually larger than
the negative (-) terminal post. Connect the RED (+) ring terminal to this
battery terminal.
3. Connect BLACK (-) ring terminal to negative (-) battery terminal.
4. Double check that the square two pin connector on the lead set is firmly
plugged into the square out put connector of the Battery Extender
(see illustration in “FOR USE WITH SPRING CLIPS”).
5. Secure the lead set out of the way of fan blades, belts, pulleys, and hot
items like exhaust manifolds. Nylon ties work great in this situation.
6. Make sure the Battery Extender is safely located away from the battery and
in a nonhazardous location.
7. Plug the AC cord in to a grounded outlet.
8. Set the Battery Type button to match the battery type you are charging.
(Standard, AGM, Gel Cell). (Model BEX-3000 and BEX-5000 only)
9. Set the 6/8/12/16 volt button to the voltage rating of the battery you are
connecting to. (Model BEX-5000 only.)
BA T T E R Y
Red (+)
Ring
Terminal
Smaller
Negative (-)
Post
Larger
Positive (+)
Post
Black (-)
Ring Terminal
Red (+)
Battery
Cable
Black (-)
Battery Cable
2 Pin Connector
FOR USE WITH PERMANENT RING TERMINALS
For batteries installed in vehicles or other equipment we have
provided a lead set with ring terminals. Since many installed batteries are in
space-restricted locations or compartments, these ring terminals (see illustration
below) have been designed to provide a safe and convenient connection.
Follow these steps for connection and operation:
NOTE: The BEX-1500 and BEX-3000 must only be used with 12 Volt
batteries.
