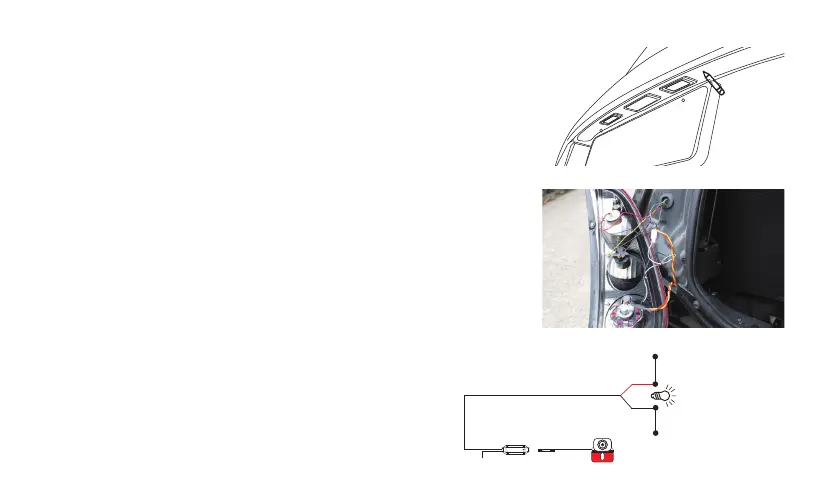

Step5: Hole for camera cable.
Look for an opening or drill a hole near the license plate to thread the camera cable
into the interior of the vehicle.
For good visibility and easy installation, we would recommend you to remove the
interior trim near the license plate.
Step6: Connect the camera cable.
Connect the camera cable to the 4-pin socket of the power box. Make sure the
cables are not pinched or knotted.
Step7: Connect the power box wire.
● Open the inner plastic panel and remove it from the hatch or tailgate. (The panels
are usually attached to the tailgate by clips. This may take a bit longer time to
avoid clip damages. Once this panel is removed, the work will be done easily.)
● How to find the reverse light (Positive)?
a. Please switch the key to ACC position, then shift your car into R-gear.
b. Prepare a car test light, connect its clip or clamp to a known ground source,
then use the pointed end to pierce the plastic insulation on a wire. If the bulb
lights up, it means the wire may be the potential reversing light's positive
power source.
c. Please shift your car into another gear, then use a test light to test
all the wires which used to light up the bulb again, if there is one
wire that doesn't light up the bulb, it's the reversing light's positive
power source.
Camera
Power box
Antenna
Red(+)
Black(-)
Ground
(iron part of the vehicle)
Reversing light
+ 12V-24V
Reversing light power wire
