Toyota RLO Testing
Toyota RLO Testing
Toyota
M
IG
RLO
L

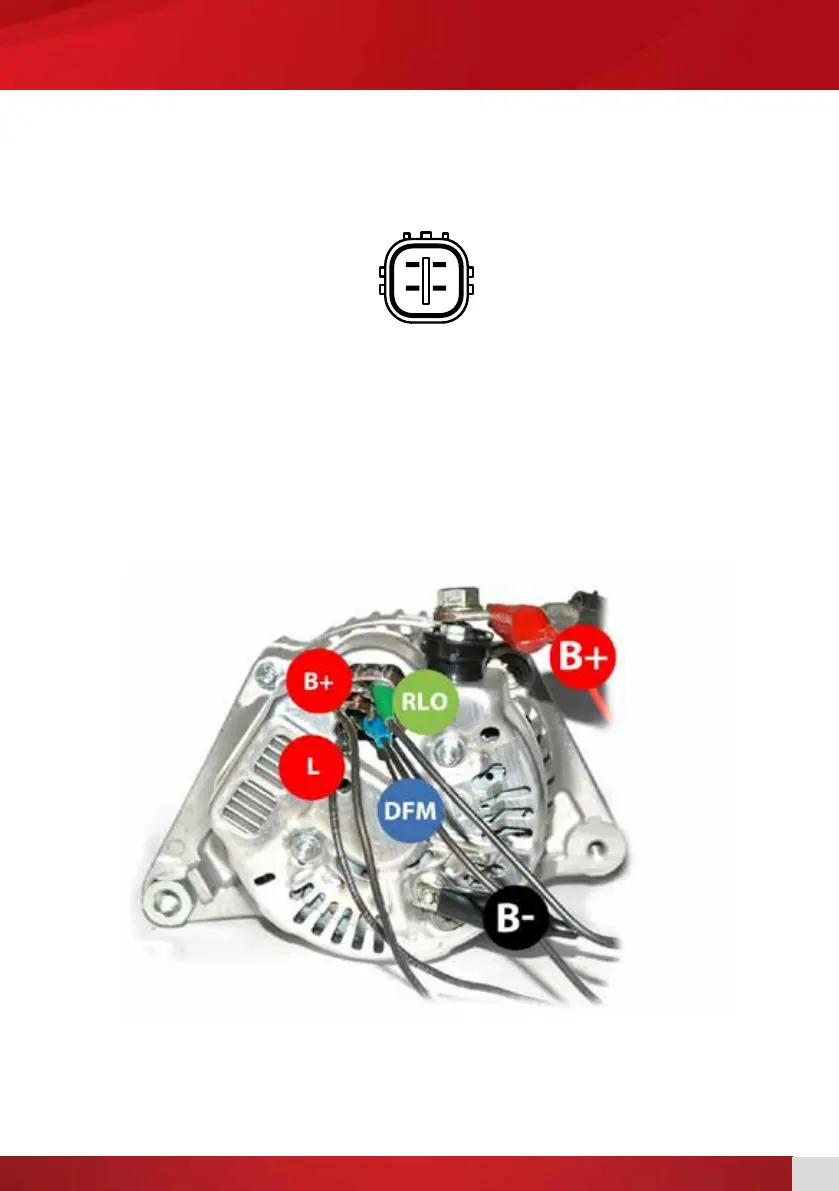

Alternator connection:
IG pin Existing IG connection.
RLO pin RC (Green)
L pin Existing L (Control Lamp) connection.
M pin (DFM) M (Blue)
B+ connection B+ (Red)
Alternator bracket/casing B- (Black)
The connection of the L and IG pins are implemented independently of the AD100+, by using the
connectors located in the vehicle or on the testbench.
