AUTODIAGGER AD100+ - i-STARS Testing: Connector and Connection; i-STARS Connector and Plug Information

15
Toyota RLO Testing i-STARS Testing
i-STARS Testing
PSA
B+ D D LIN GND

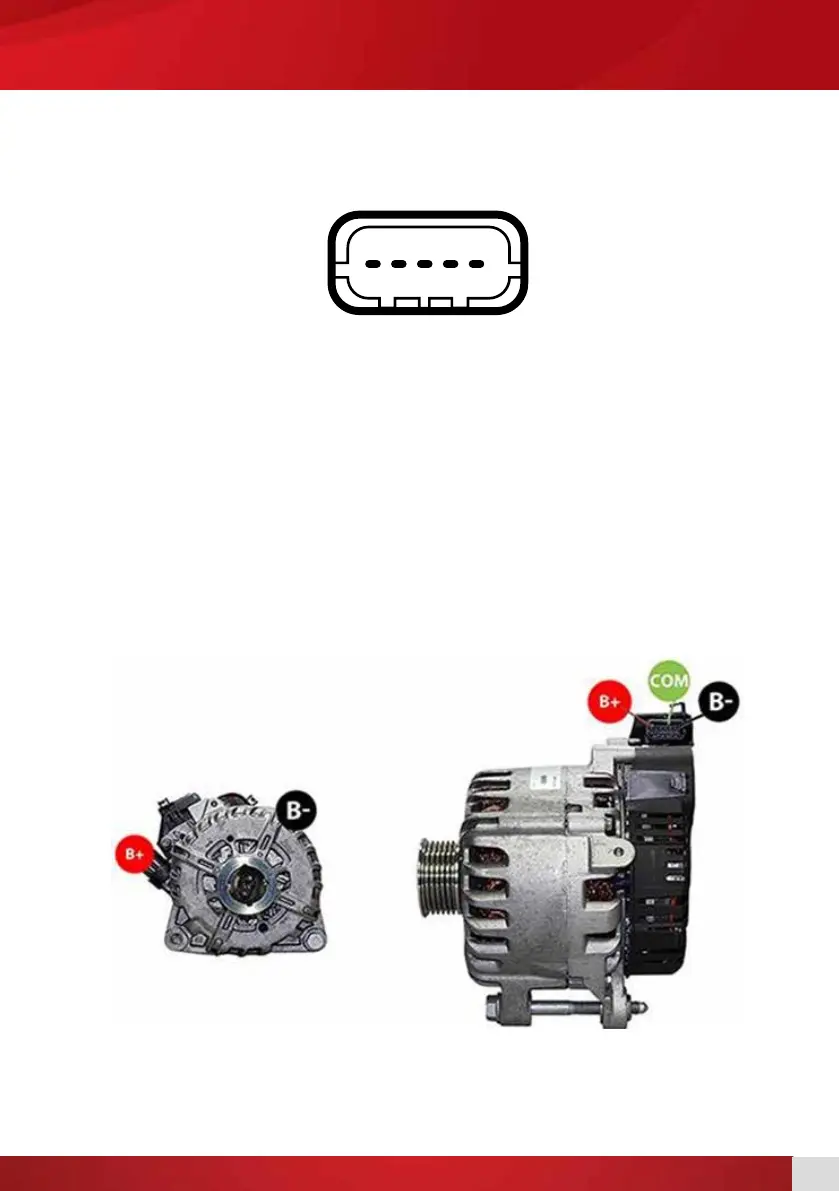

i-STARS connections:
Plug:
B+ connection Existing alternator battery positive.
LIN pin RC (Green)
GND pin Existing alternator ground.
Power cables:
B+ connection B+ (Red)
Alternator bracket/casing B- (Black)
The M (Blue) is left disconnected when testing.
The connection of the B+ and GND pins are implemented independently of the AD100+, by using the
connectors located in the vehicle or on the testbench.
