AUTODIAGGER AD100+ - LIN 24 V Testing GRC: Connector and Connection; Connector for LIN 24 V GRC Testing; Alternator Connection for LIN 24 V GRC

5
COM, LIN, BSS Testing LIN 24V Testing
LIN 24V Testing GRC
Mercedes

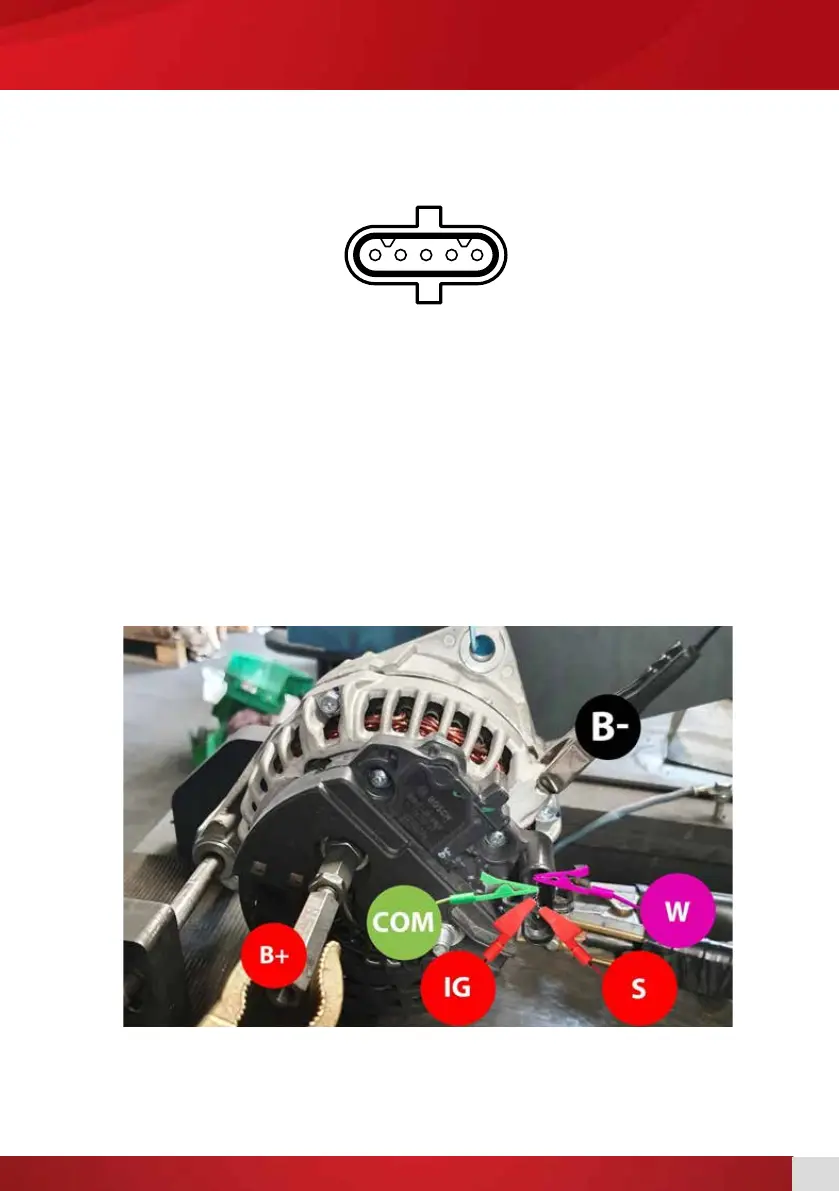

Alternator connection:
W pin Existing tachometer connection.
LIN pin RC (Green)
15 pin (IG) Existing 15 / ignition connection.
S pin (Battery Sense) Existing S / battery sense connection.
DFM pin Leave disconnected.
B+ connection 24V B+ (Red)
Alternator bracket/casing 24V B- (Black)
The M (Blue) is left disconnected when testing.
The connection of the S, 15(IG), and W pins are connected independently of the AD100+, by using the
connectors located in the vehicle or on the testbench.
W LIN 15 S DFM
