AUTODIAGGER AD100+ - Ford SIG Testing: Connector and Connection; Connector for Ford SIG Testing; Alternator Connection for Ford SIG

7
LIN 24V Testing Ford SIG Testing
Ford SIG Testing
Ford, Mazda, Volvo
SIG
FR S

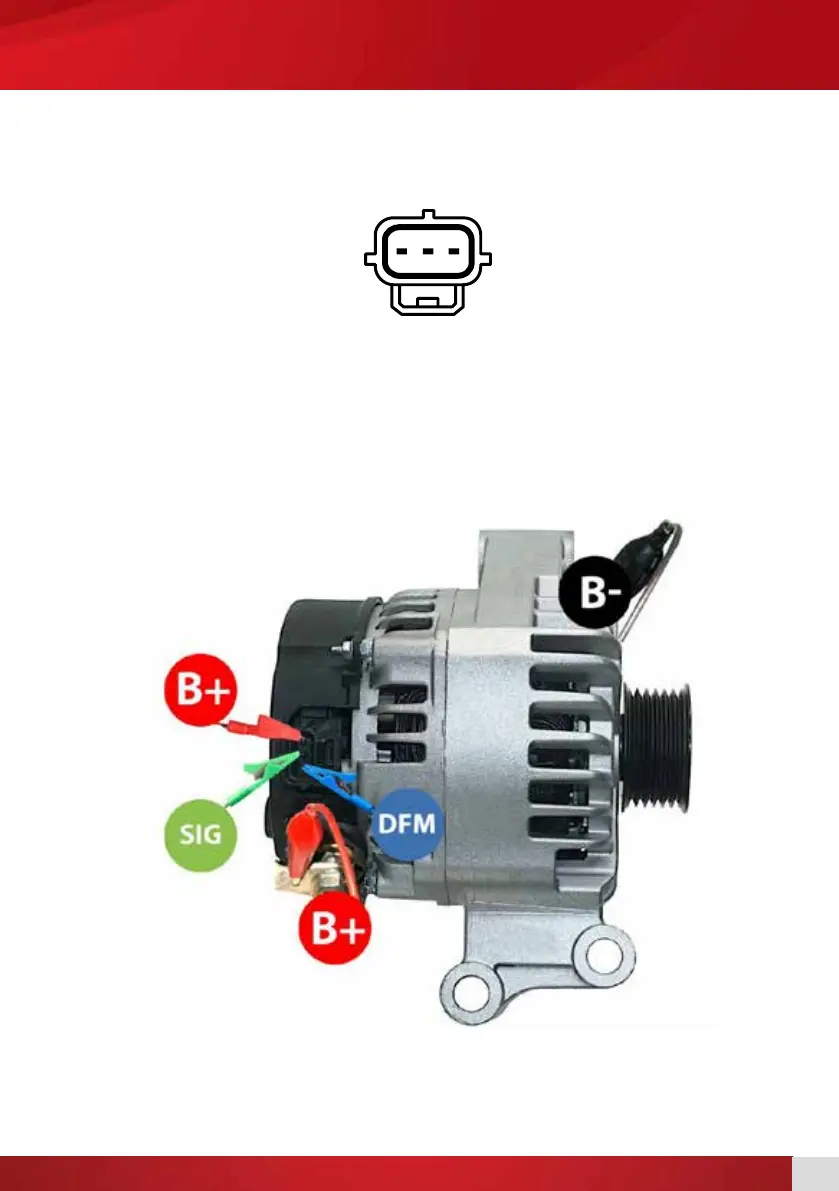

Alternator connection:
FR pin M (Blue)
SIG pin RC (Green)
S pin Existing S / battery sense connection
B+ connection B+ (Red)
Alternator bracket/casing B- (Black)
The connection of the S pin is connected independently of the AD100+, by using the connectors located
in the vehicle or on the testbench.
