This document provides installation and safety instructions for Calix Roof Boxes, manufactured by Autoform. It covers various models including Nordic Loader, H18, H20, H22, M22, and Aero Loader.

Function Description

Calix Roof Boxes are external storage solutions designed to be mounted on the roof racks of vehicles, providing additional cargo space. They are intended for transporting luggage and other items securely. The boxes feature a locking mechanism to secure contents and prevent theft, and they are designed to be water-resistant.

Important Technical Specifications

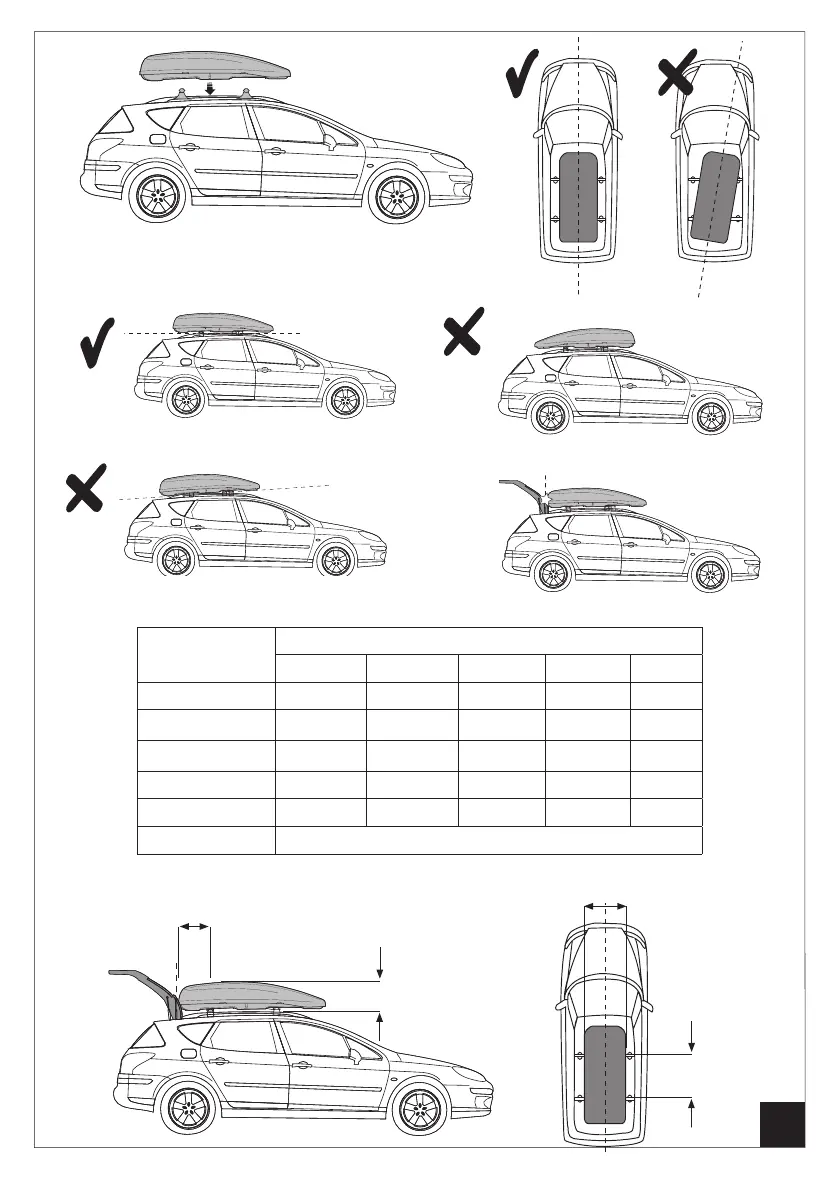

Dimensions (in mm):

Model	Lmin	Lmax	W	H	Rmin
Nordic Loader	700	1100	937	248	440
H18	600	850	901	433	460
H20	700	1100	937	350	425
H22	700	1100	941	362	570
M22	700	1010	810	310	575
Aero Loader	700	1100	809	361	590

Maximum Permitted Roof Load (including the roof box itself):

Model	Weight (kg)
Nordic Loader	30
H22	26
H20	22
H18	19
M22	23
Aero Loader	20

The maximum load for items inside the roof box is 75 kg. The total permitted roof load for the car (roof box + contents) should not exceed the maximum specified in the car's driver's manual.

Compatibility with Roof Rack Dimensions:

Maximum roof rack width: 32 mm
Minimum roof rack height: 15 mm
Maximum roof rack width (for the Quick Grip system): 100 mm
Minimum roof rack height (for the Quick Grip system): 25 mm

Speed Limit:

Maximum recommended speed with the roof box mounted: 130 km/h. A sticker is provided to be placed on the dashboard as a reminder.

Water Resistance:

The roof box is water-resistant but not completely waterproof.

Usage Features

Installation:

Unpacking: The roof box comes with keys (A), loading straps (B) (x3), a speed limit sticker (C), and Quick Grip mounting hardware (D) (x4).
Opening the Box: Use the key to unlock the roof box and open the lid.
Mounting the Quick Grips:
- Unlock the Quick Grip by rotating the knob until the orange indicator is in the unlocked position.
- Push the hooks apart to position them around the roof rack.
- Place the Quick Grip onto the roof rack.
- Push the hooks together until both hooks meet the roofrack.
- Turn the knob clockwise until a "click" is heard, indicating it is locked and ready to go.
- Repeat this process for all four Quick Grips.
Loading:
- All load/items must be fastened with the provided loading straps to prevent shifting during transit.
- Distribute the load evenly within the box. The manual illustrates a recommended distribution of 1/4, 1/2, 1/4 of the load across the length of the box.
Securing the Box:
- Close the lid and turn the key to lock the roof box.
- Remove the key and close the cover to protect the lock from dirt and weather.

Safety Considerations:

Driving Behavior: Be aware that the car's behavior will change with a roof box mounted, especially concerning crosswinds, cornering, and braking.
Height Clearance: Be mindful of the increased height of the car with the roof box mounted, especially when entering garages or low-clearance areas.
Wind Noise: Wind noise may occur when driving with the roof box mounted.
Washing: Remove the roof box from the car if it is to be washed in an automatic car wash.

Maintenance Features

Regular Checks:

Quick Grips: Check that all Quick Grips are firmly mounted before driving.
Post-Installation Check: Repeat the Quick Grip check after the first 10 km of driving.
Periodic Checks: Perform Quick Grip checks 4 times a year by turning the knob clockwise until a "click" is heard to ensure the roof box is secured.
Dirt Check: Check for dirt on the Quick Grips before each use.

Storage:

Store Quick Grips in a clean environment when not in use.
The roof box must always be kept in a lying down position when not in use.
For energy saving and safety reasons, remove the roof box and roof racks when not in use.

Documentation:

Keep the roof box manual together with the car's instruction manual for easy reference.

Warranty:

Installation and handling that deviate from this manual will void the warranty and can cause damage to the car and the surrounding environment.
