Automess 6150AD - Software Characteristics

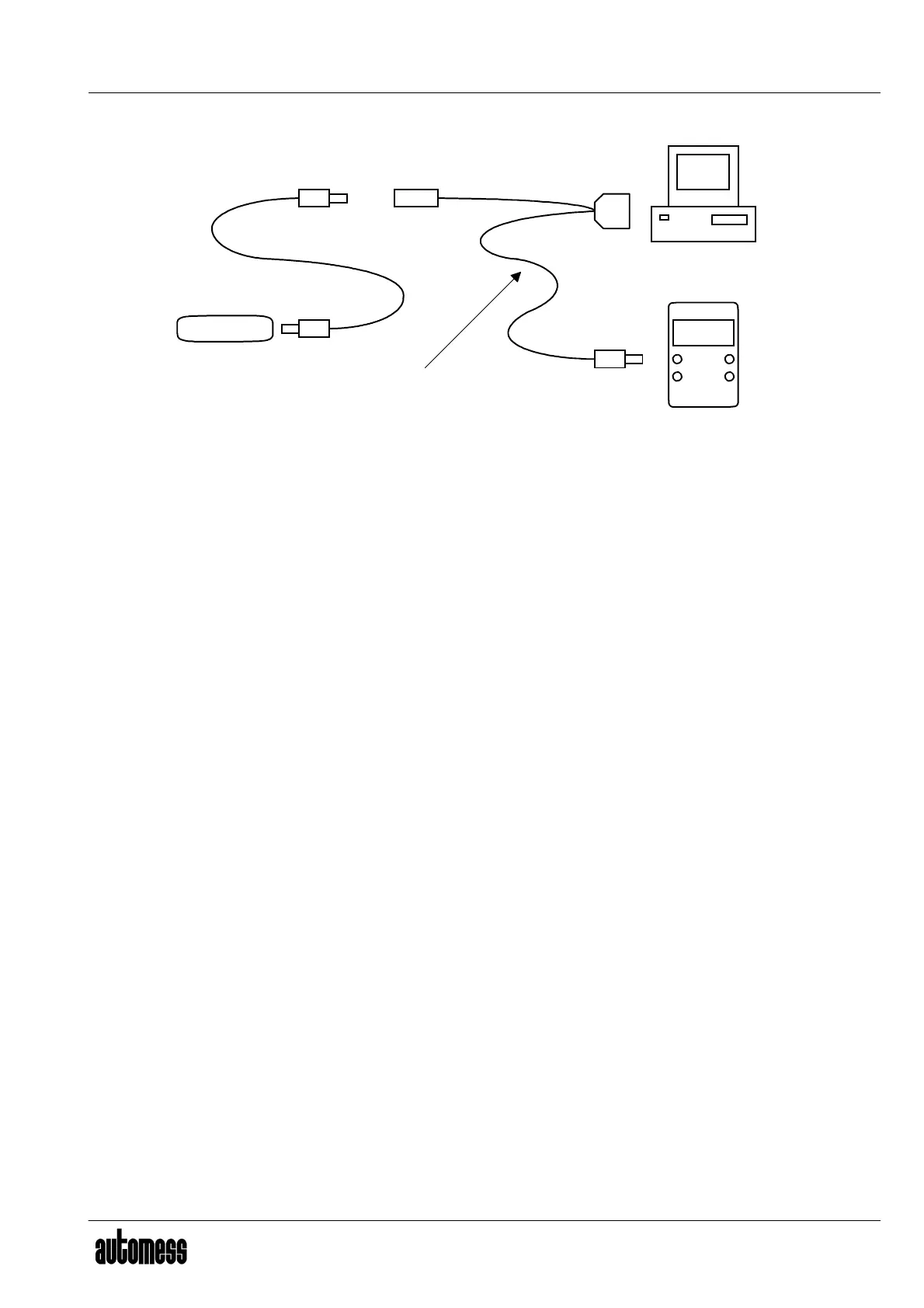

A typical setup to read the 6150AD by a PC (optionally with a probe connected) would be:
The cable EB84-0193 is basically a probe extension cable with a »T« connection making the GND and
Term signals available at the 9 pin sub-D connector.
2
.
1
.
2
Software Characteristics
Interface settings are
4800 Bd (9600 Bd for special 6150AD1-BiZa version)
8 data bits
no parity
1 stop bit
The character string sent approximately every second consists of the following six bytes:
1
.
STX (02H) as the start of text character
2
.
type of detector/6150AD
3
.
dose rate mantissa (low byte)
4
.
dose rate mantissa (high byte)
5
.
dose rate exponent
6
.
block check character
The second byte (type of detector/6150AD) contains:
Bit 0-5:
detector in use:
0 = probe 6150AD-0
7 = probe 6150AD-b
15 = probe 6150AD-15
17 = probe 6150AD-17
18 = probe 6150AD-18
19 = probe 6150AD-19
20 = 6150AD internal tube
21 = probe 6150AD-t, low range tube
22 = probe 6150AD-t, high range tube
Bit 6:
type of internal tube:
0 = ZP1200 (6150AD2/4/6)
1 = ZP1310 (6150AD1/3/5)
Bit 7:
measuring quantity:
1 = 6150AD »/E« model (6150ADx/E)
0 = other (6150ADx or 6150ADx/H)
PC
standard probe cable
probe (optional)
connecting cable »PC - 6150AD - probe«
DB-9
Automess part number EB84-0193
6150AD
