Autopage RF-320 - Page 11

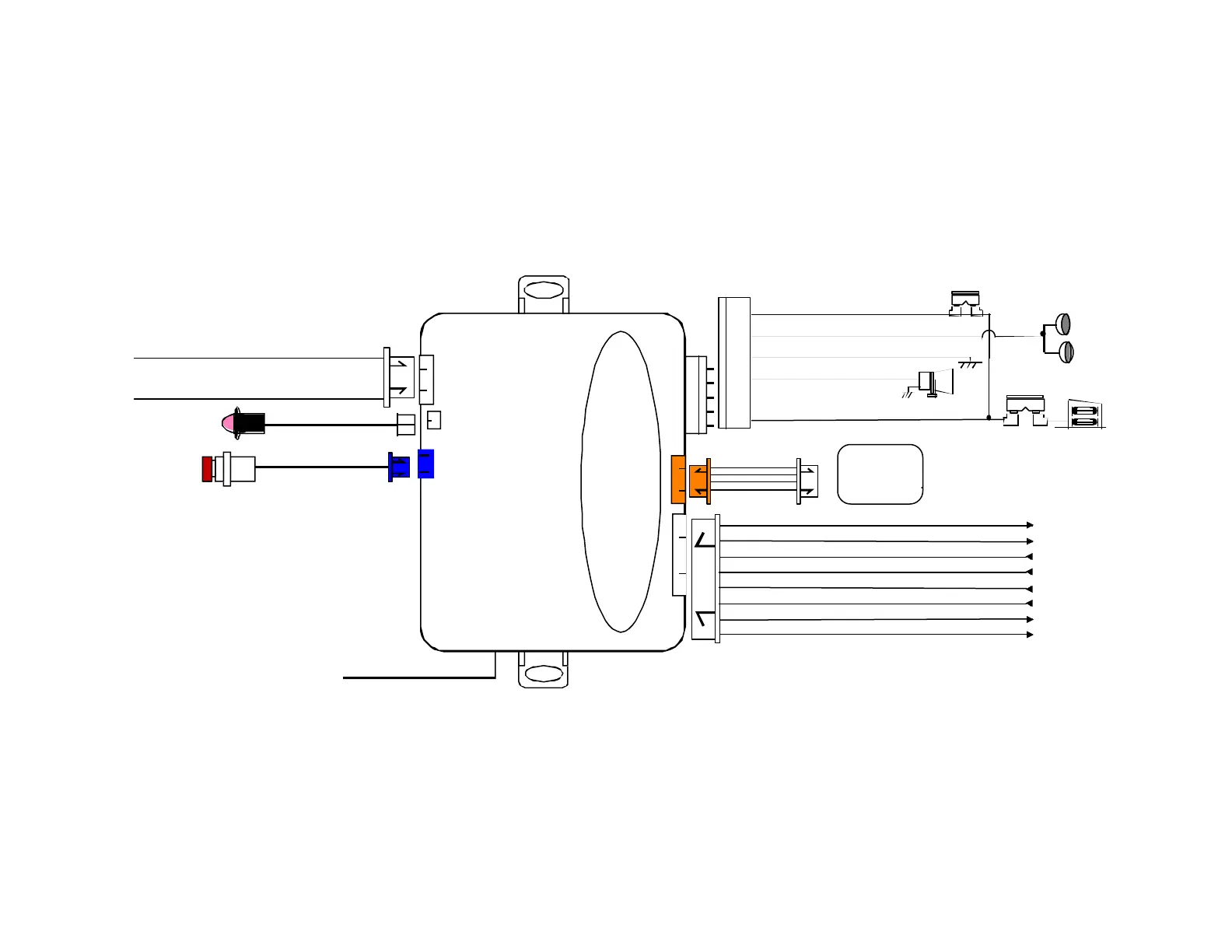

RF-315
Blue: (-) Unlock Pulse or (+) Lock Pulse
Green: (-) Lock Pulse or (+) Unlock Pulse
H7 3-Pin
White
H6 2-Pin White
H5 2-Pin Blue
H4 Black Wire
Black Antenna Wire
Valet Switch
LED Indicator
H1 Main 5-Pin
White Harness
Dual Stage
Shock Sensor
H2 4- Pin Orange
H3 8-Pin Mini
White Connector
(RELAY REQUIRED)
GRAY...2ND CHANNEL OUTPUT
WHITE...DOME LIGHT / 3RD CHANNEL OUTPUT
ORANGE...STARTER INTERUPT OUTPUT
(RELAY REQUIRED)
GREEN...NEGATIVE DOOR TRIGGER (-) INPUT
YELLOW...IGNITION INPUT
VIOLET...POSITIVE DOOR TRIGGER (+) INPUT
BROWN/WHITE...(-) HORN OUTPUT
BLUE...NEGATIVE INSTANT (-) INPUT
5. Red Wire: +12V T
o Constant Battery Source
4. Brown Wire: Positive output to Siren
3. Black Wire: Ground to Vehicle FRAME
2. White Wire: Parking Light Relay Output
3A Fuse
1. Red / White Wire: Parking Light Relay input
15A FUSE
