Autopage RF-320 - Page 7

7

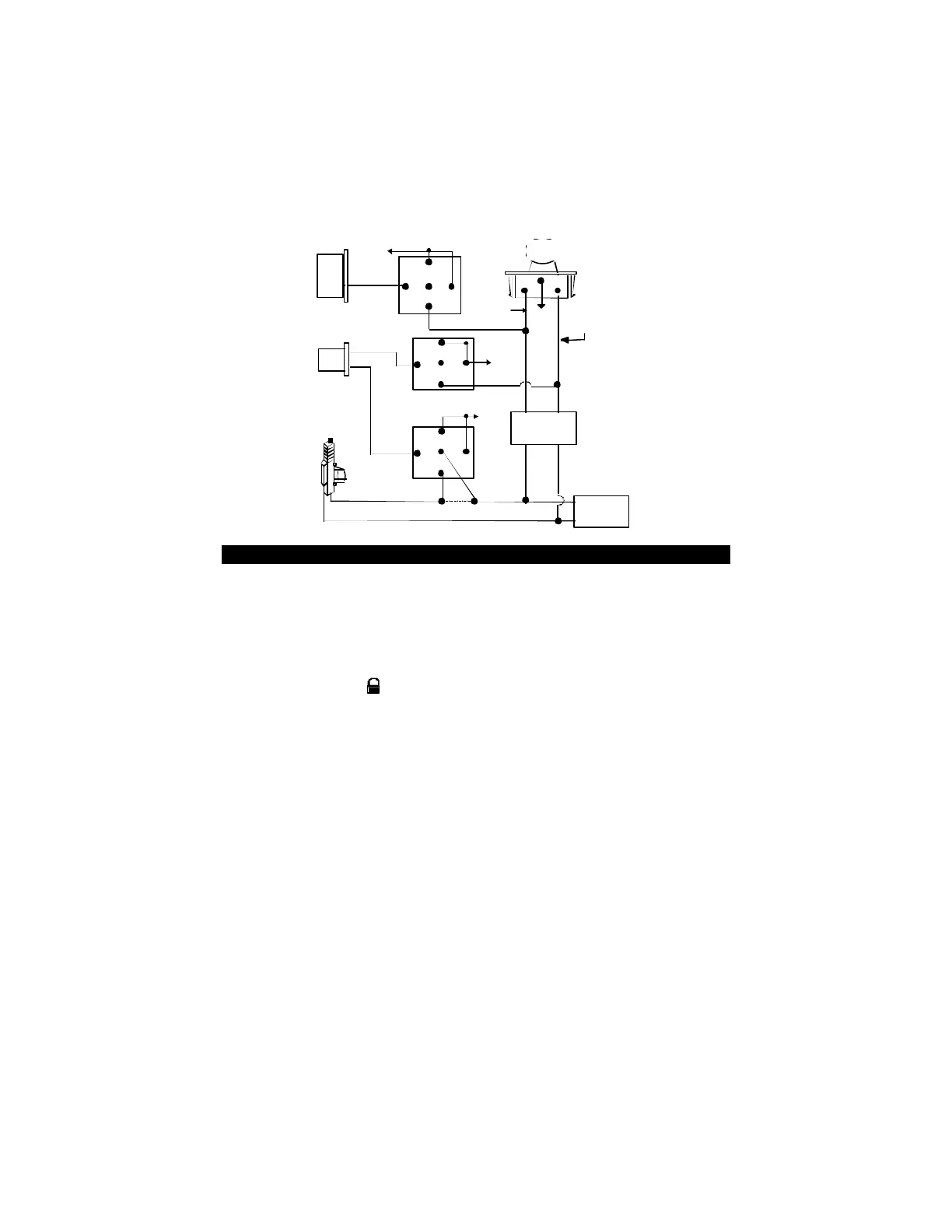

2 STEP DOOR UNLOCK WIRE CONNECTION FOR
POSITIVE SWITCHED DOOR LOCKS
Cut Existing Unlock
X
Lock Unlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
6-Pin
Plug
From
Alarm
H3/8
Gray Wire
OEM Driver's
Door Lock
Motor
+ 12V
Existing Pos.
Lock Wire
Existing Pos.
Unlock Wire
30
87A
87
86 85
+12V
+ 12V
OEM Door
Lock Relay
86
30
85
87
87A
H7/1 Blue
Wire
Door Unlock
H7/3 Green
Wire
Door Lock
+ 12V
86
30
85
87
87A
PROGRAMMING:
Note: This system can keep up to 4 remote transmitters in its memory. If more than 4
transmitters programmed, the system will keep only the last 4 transmitters.
PROGRAMMING THE REMOTE TRANSMITTER
Enter:
1. Turn the Ignition ‘switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 2 times. (Holding in on the 2nd push) until you hear a long chirp.
The transmitter is ready to program.
Program:
1. Press any button on the transmitter until the siren responds with a confirming chirp
the first transmitter is now programmed.
2. Press button on the second transmitter until the siren responds with a confirming
chirp, the second transmitter is now programmed.
3. Apply the same procedure to program 3rd and 4th
.
Exit: Turn Ignition to ‘OFF’ position, or leave it for 15 seconds. A 3 long chirps & 3 parking
light flashes to confirm exit.
