AUX ARV SERIES INDOOR UNIT – DC&AC TYPE Technical&Service Manual
8

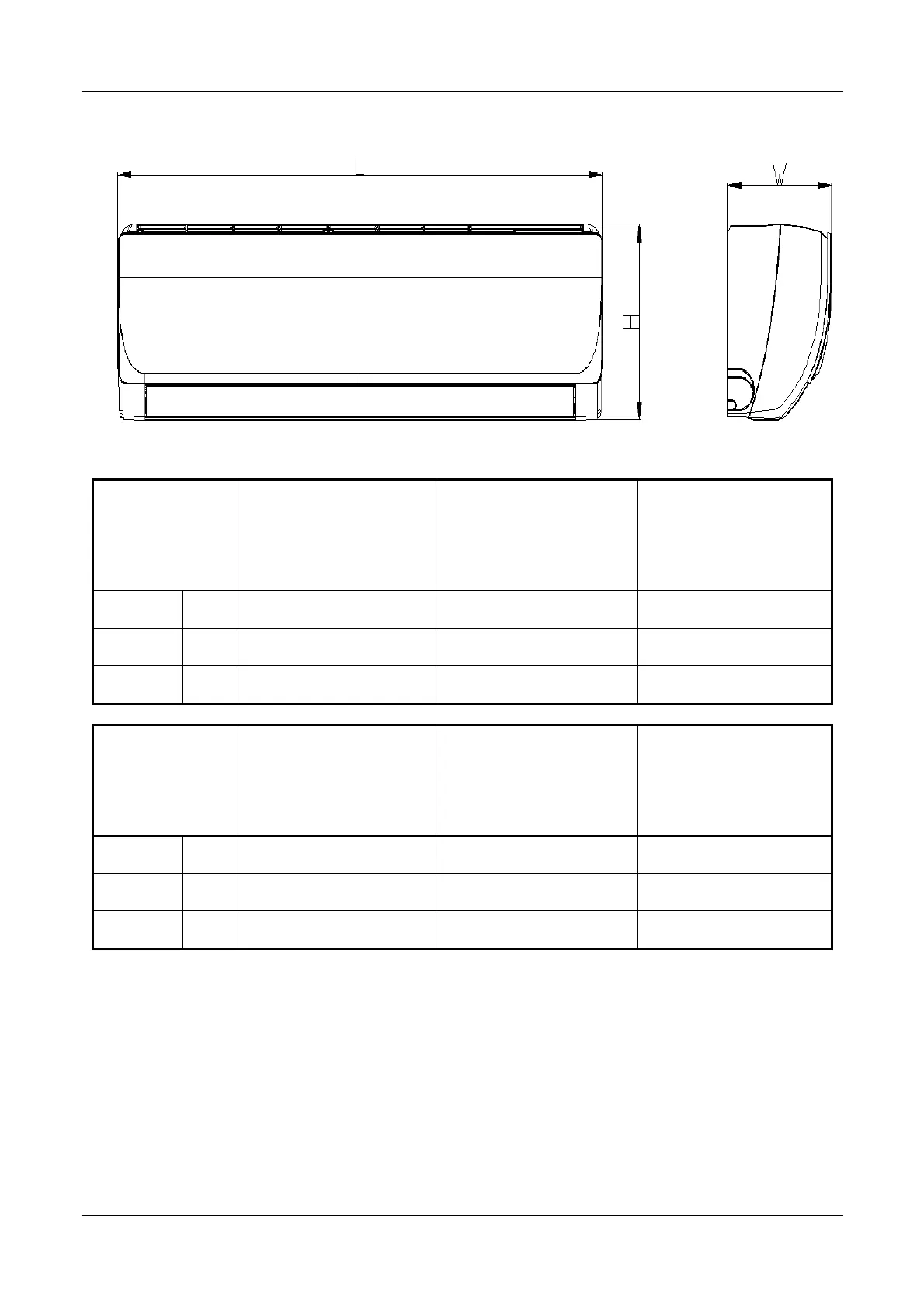

Physical
Dimension
ARVWM-H022/R1X(LI)
ARVWM-H022/4R1A(LH)
ARVWM-H022/2R1A(LH)
ARVWM-H028/R1X(LI)
ARVWM-H028/4R1A(LH)
ARVWM-H028/2R1A(LH)
ARVWM-H036/R1X(LI)
ARVWM-H036/4R1A(LH)
ARVWM-H036/2R1A(LH)
Length mm
850 850 850
Height mm
300 300 300
Width mm
198 198 198
Physical
Dimension
ARVWM-H045/R1X(LI)
ARVWM-H045/4R1A(LH)
ARVWM-H045/2R1A(LH)
ARVWM-H056/R1X(LI)
ARVWM-H056/4R1A(LH)
ARVWM-H056/2R1A(LH)
ARVWM-H071/R1X(LI)
ARVWM-H071/4R1A(LH)
ARVWM-H071/2R1A(LH)
Length mm
970 970 1100
Height mm
315 315 330
Width mm
235 235 235
