AVANT 735 2020 - Telescopic boom control lever; Joystick - 8 function (optional extra)

Controls and options of the Loader Avant 735
52

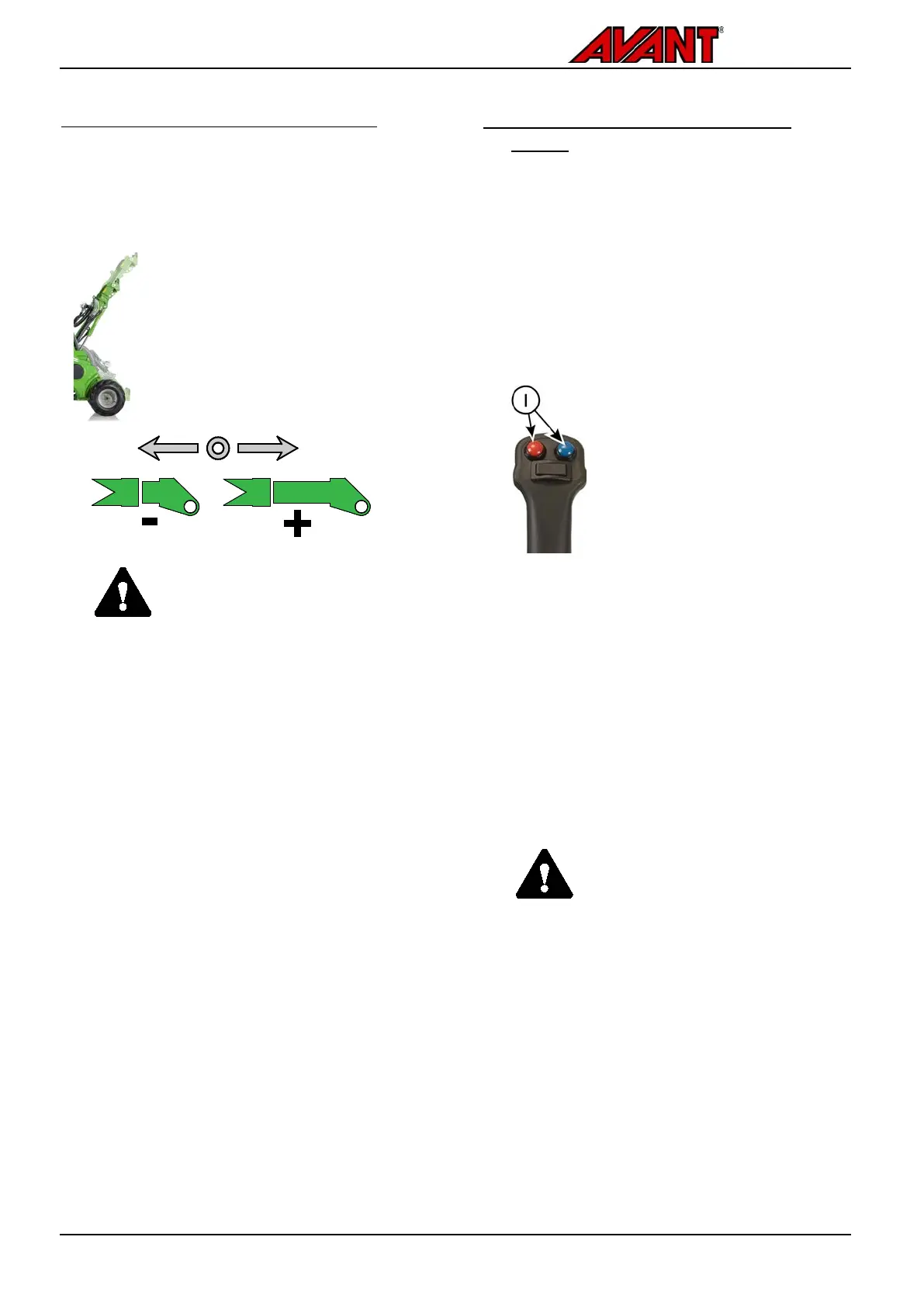

3. Telescopic boom control lever
The telescopic boom makes many tasks easier, also
those that do not involve lifting. You can, for
example, push material further with a bucket, reach
into difficult areas, and improve visibility to the work
area with some attachments.
The telescopic boom can be
extended by 600 mm. It increases
the maximum lifting height by 485
mm.
Turn the control lever of the
telescopic boom to the right to
extend the boom,
and turn to the
left to retract it.
WARNI
NG
Risk of tipping over - Extended
boom can cause the loader to tip
over. Use telescopic boom with
caution.
The stability of the loader
depends on the distance of the
load from the front of the loader.
Wh
en you extend the boom, you
increase the effect
of the weight
and reduce safe handling capacity.
See pages 39 and 84
for further
instructions about tipping load and
safe material handling.
.
4. Joystick - 8 function (optional
extra)
The loader can be equipped, as an option, with an 8-
function joystick. You can use either manual control
lever or the electric pushbuttons to control the
auxiliary hydraulics and the telescopic boom.
1. Electric control of auxiliary hydraulics
If the loader is equipped with the optional 8 function
joystick, the auxiliary hydraulics can be controlled
with electric buttons on the joystick:
Pus
h and hold either button to
control the direction
of auxiliary
hydraulics flow.

The operation of the buttons
depends on the attachment,
see the Operator’s Manual of
each attachment.

Release buttons to stop.

Make sure the manual control
lever is not locked
when
operating electric joystick.

When using the electric switches, the manual
control lever will also move. Either way can be
used to control the attachment as needed.

Keep the hydraulic pump setting at 1-pump
setting, unless higher hydraulic flow to the
attachment is required. Lower flow of hydraulic
oil will help to control the attachment more
accurately.
CAUTION
Avoid abrupt movements of an
attachment -
Use electric
buttons with caution.
When you
use certain attachments with the
electric joystick
buttons, the
attachments can move abruptly.
This
can cause falling of material
from the attachment, loss of
stability, or damage to attachment.
Use the manual control lever for
work or attachments requiring
smooth movements.
