5(18)
*Normally the installation kit A48130 is supplied with the backhoe.
The installation for 300-series loaders and 500-series, manufactured before 2008, depends on the
boom type. Contact AVANT dealer for more information.
Table 2 – Bucket options
Product number: A2896 A2887 A2932 A2871
Width: 280 mm 400 mm 1000 mm
Grading bucket with
hydraulic tilting, 700 mm

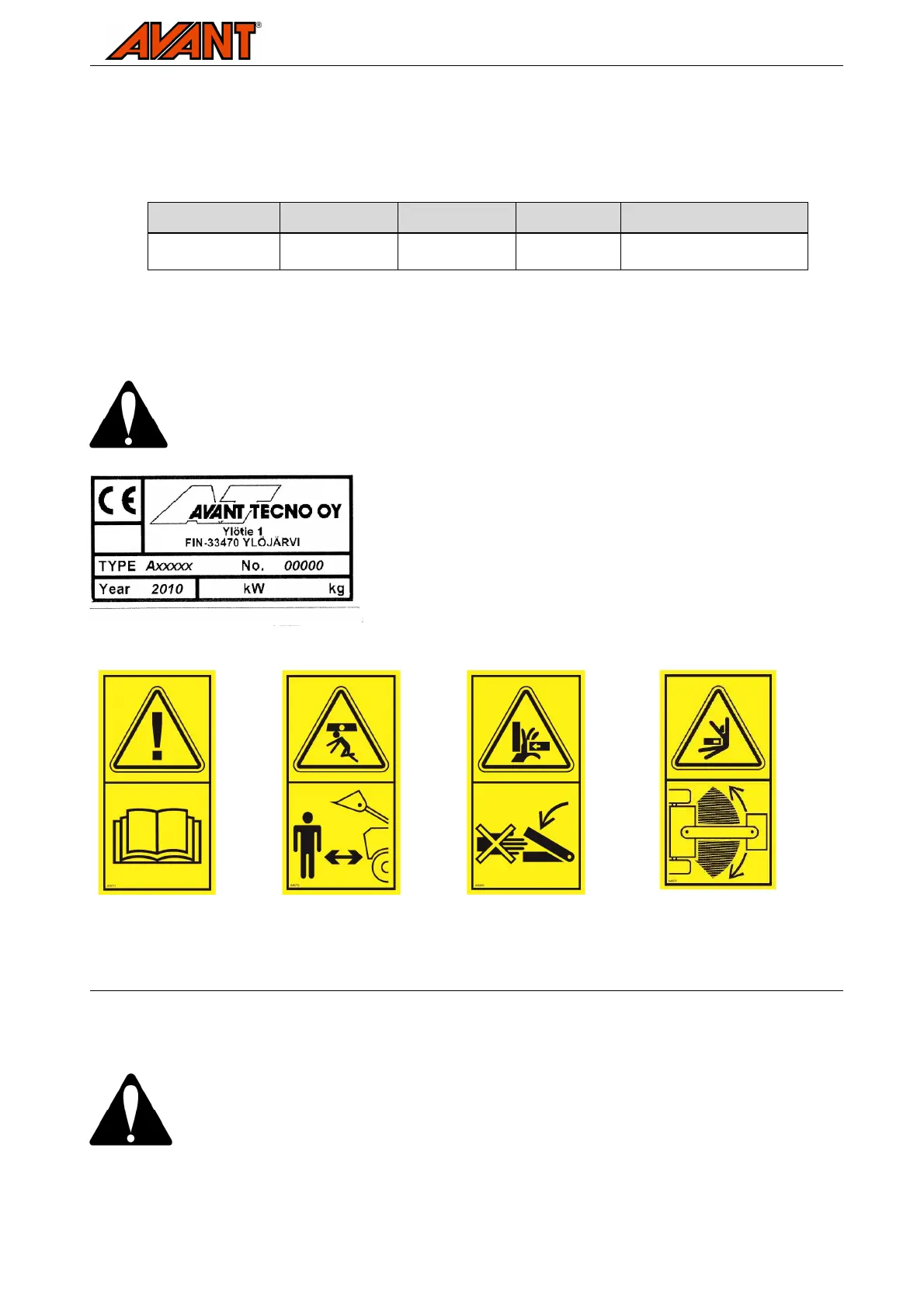

Listed below are the markings and labels fastened to the flail mower, which must be visible on the
equipment. Replace the warning labels, if they have become unclear or detached completely. New labels are
available via your retailer or contact information provided on the cover page.
The warning decals contain important safety information. Replace damaged or
missing decals with new ones.
• A46771 – Read the instructions before use.
• A46772 – Do not go under a raised attachment; keep a safe
distance from raised or freestanding equipment.
• A46803 – Crushing hazard, keep clear of moving parts.
• A46797 – Crushing hazard in the reach area of the backhoe,
keep bystanders away from danger area.
A46771 A46772 A46803 A46797
5. Assembly of the backhoe
The backhoes 220 and 250 are delivered with a loader model dependent installation kit. Before the first use
the installation kit must be mounted on the backhoe and the loader. When the backhoe is ready for use,
mount it on the loader as shown in the next sections, and mount the bucket to the backhoe.
Beware of the hinged control valve support on the loader. Do not remove the valve
unit from its stand until the backhoe is completely mounted to the loader.
Identification plate of the attachment
