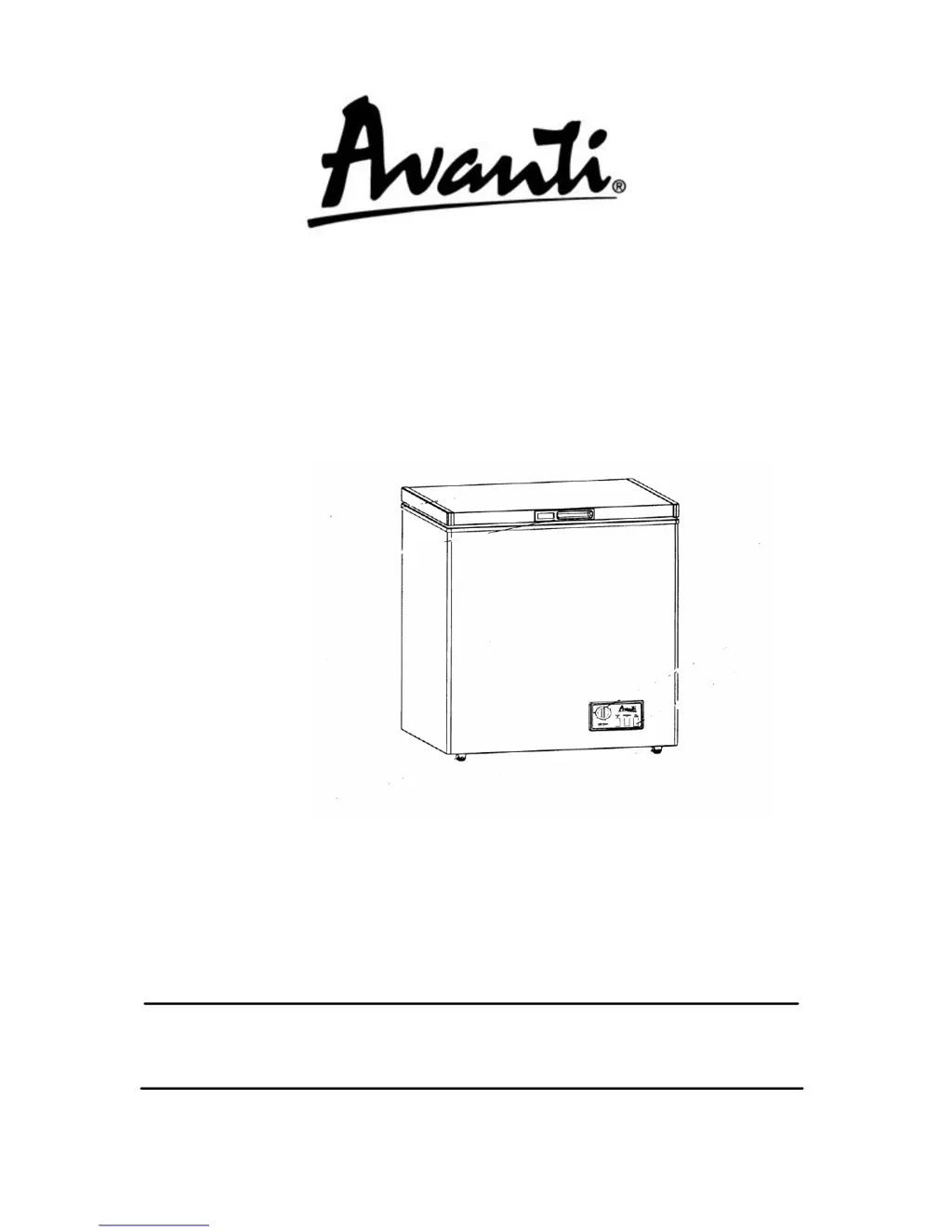

FREEZER
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers/ No. de Modelos: CF97/CF142/CF199
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 16.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

Questions and Answers

  • B
    Brittany WebbAug 15, 2025
    How to troubleshoot Avanti Freezer that does not operate?
    • K
      Karen ClaytonAug 16, 2025
      If your Avanti Freezer isn't operating, make sure it's properly plugged into the power outlet. Also, check the circuit breaker or fuse box to see if a breaker has tripped or a fuse has blown. Finally, ensure that the freezer temperature control is not set to "0/OFF".
  • M
    Melanie JenkinsAug 18, 2025
    What to do if the Avanti CF142 Freezer temperature is too warm?
    • B
      bcochranAug 19, 2025
      If the temperature inside your Avanti freezer is too warm, try the following: * Adjust the temperature control to a cooler setting and allow several hours for the temperature to stabilize. * Avoid keeping the door open for extended periods and reduce how often you open it. * If you've recently stored a large quantity of warm or hot food, give the freezer time to reach the set temperature. * If the freezer has been recently disconnected, allow four hours for it to cool down completely.
  • D
    Dalton MillerAug 21, 2025
    How to fix Avanti CF142 Freezer temperature that is too cold?
    • J
      Julia BautistaAug 22, 2025
      If the temperature inside your Avanti freezer is too cold: 1. Adjust the temperature control to a warmer setting and allow several hours for the temperature to stabilize. 2. Check if the Fast Freeze switch is turned on, as this causes the compressor to run continuously, bypassing the temperature control.
  • H
    huanglauraAug 25, 2025
    Why does my Avanti CF142 compressor turn on and off frequently?
    • H
      Heather SanchezAug 26, 2025
      Several factors can cause your Avanti freezer's compressor to turn on and off frequently. These include a room temperature that is hotter than normal, adding a large amount of food to the freezer, opening the door too often or not closing it completely, an incorrect temperature control setting, a door gasket that doesn't seal properly, inadequate clearances around the freezer, or the freezer having recently been disconnected. If the freezer was recently disconnected, allow four hours to cool down completely.
  • W
    wvasquezAug 27, 2025
    How to stop Avanti CF142 from vibrating?
    • W
      William BrownAug 27, 2025
      If your Avanti freezer is vibrating, ensure that the freezer is on a level surface and that the floor can adequately support it. If the freezer rocks, level it by using wood or metal shims. Also, make sure the freezer isn't touching the wall; if it is, re-level it and move it away from the wall.
  • A
    Anthony LeonAug 30, 2025
    Why is the surface of my Avanti CF142 warm?
    • H
      Heather SmithAug 30, 2025
      It's normal for the external surface of your Avanti freezer to feel warm. The exterior walls can be up to 30°F warmer than the room temperature as the compressor transfers heat from inside the freezer.
  • H
    Heather GuerreroSep 2, 2025
    Why does moisture form on inside Avanti Freezer walls?
    • B
      brookewilliamsSep 2, 2025
      If moisture forms on the inside walls of your Avanti freezer, it's normal if the weather is hot and humid. Also, make sure that the door is not slightly open and avoid keeping the door open too long or too frequently.
  • C
    Curtis KingSep 5, 2025
    Why does moisture form on the outside of my Avanti CF142 Freezer?
    • J
      juliehenrySep 6, 2025
      Moisture forming on the outside of your Avanti freezer can occur if the door is slightly open, preventing it from closing properly. Also, check if the freezer is on a level surface, if the gasket is dirty, or if the storage basket is out of position.
  • C
    Christopher MartinezSep 8, 2025
    What causes popping sound in Avanti CF142?
    • M
      Marcus HughesSep 8, 2025
      The popping or cracking sound you hear when the compressor comes on in your Avanti freezer is normal. Metal parts expand and contract, similar to hot water pipes. The sound should diminish as the freezer continues to run.
  • C
    Catherine EllisSep 12, 2025
    What causes gurgling sound in Avanti CF142 Freezer?
    • A
      antoniogalvanSep 12, 2025
      The bubbling or gurgling sound you hear in your Avanti freezer, like water boiling, is normal. It's caused by the refrigerant circulating throughout the system to cool the freezer.

Summary

Registration Information

Help Us Help You

Important Freezer Safety Warning

This freezer is not designed for storing medicine or other medical products.

Record Model and Serial Numbers

Write down model and serial numbers for future reference and service calls.

If You Need Service

Customer Service Contact Details

Steps to follow if dissatisfied with service, including mailing address.

Parts & Features

Important Safety Instructions

Pre-Operation Checks

Includes unpacking, part verification, standing upright, and interior cleaning before use.

Installation Guidelines

Covers placement, ventilation, power connection, and initial cool-down period.

Electrical Connection

Grounding and Outlet Requirements

Use of grounded plug, three-prong outlet, voltage/frequency, cord safety, no extension cords.

Indicator Lights Explained

Explanation of the 'Green' Power light and 'Compressor On' light.

Operating Your Freezer

Temperature Control Operation

Locating the control, range (1-6), setting '4' recommendation, and turning off.

Operating Notes and Tips

Includes power off, restart delay, food load impact, and thermostat adjustment.

Fast Freeze Switch Function

Function of the amber light, override of thermostat, continuous operation for fast freezing.

Defrosting Procedures

When to defrost (excess frost), choosing a time, and precautions against damage.

Defrosting Caution

Warning against boiling water or sharp tools for defrosting; recommends plastic scraper.

Defrosting Helpful Hint

Tips to speed up defrosting, like leaving door open or using warm water.

Freezer Compartment Storage

Designed for long-term storage (up to 3 months); follow food manufacturer's instructions.

Care and Maintenance

Cleaning Your Freezer

Instructions for cleaning interior, exterior, and condenser coils using recommended solutions.

Vacation Preparation

Steps for short and long vacations, including unplugging and cleaning.

Moving Your Freezer Safely

Procedure for moving, including securing items, taping doors, and maintaining upright position.

Energy Saving Tips

Advice on placement, food cooling, proper wrapping, and reducing door openings.

Troubleshooting Guide

Freezer Not Operating

Possible causes: not plugged in, tripped breaker, or control set to OFF.

Compressor Cycling Issues

Causes for frequent compressor on/off: room temp, food load, door usage, or recent disconnect.

Temperature Too Warm

Causes: control set too warm, frequent door openings, or recent warm food addition.

Temperature Too Cold

Causes: control set too cold or Fast Freeze switch is on.

External Surface Warmth

Normal operation for compressor to transfer heat, making exterior warmer than room temp.

Normal Operating Sounds

Popping, cracking, bubbling sounds are normal due to expansion, contraction, and refrigerant circulation.

Vibration Issues

Check if the freezer is on a level surface; adjust with shims if needed.

Internal Moisture Formation

Caused by hot humid weather or door left slightly open.

External Moisture Formation

Normal in hot/humid weather, or if door is slightly open.

Door Not Closing Properly

Causes: door slightly open, frequent openings, dirty gasket, or storage basket out of place.

Service For Your Freezer

Avanti Customer Service Options

Contact numbers for product information, parts orders, and in-home repair service.

Your Avanti Products Warranty

Limited One-Year Warranty Coverage

Covers repair or replacement of defective parts under normal use for one year.

Limited Compressor Warranty

Covers replacement compressor free of charge for years 2-5; labor is user's responsibility.

Warranty Exclusions

Lists items not covered, such as food loss, cosmetic damage, misuse, and unauthorized repairs.

Wiring Diagram

Avanti CF142 Specifications

General IconGeneral
Capacity13.8 Cu. Ft.
Weight126 Lbs
Energy Star CertifiedNo
Temperature ControlMechanical
ColorWhite
Defrost TypeManual
LockNo
