AVATTO TRV06 - Installation Steps

7

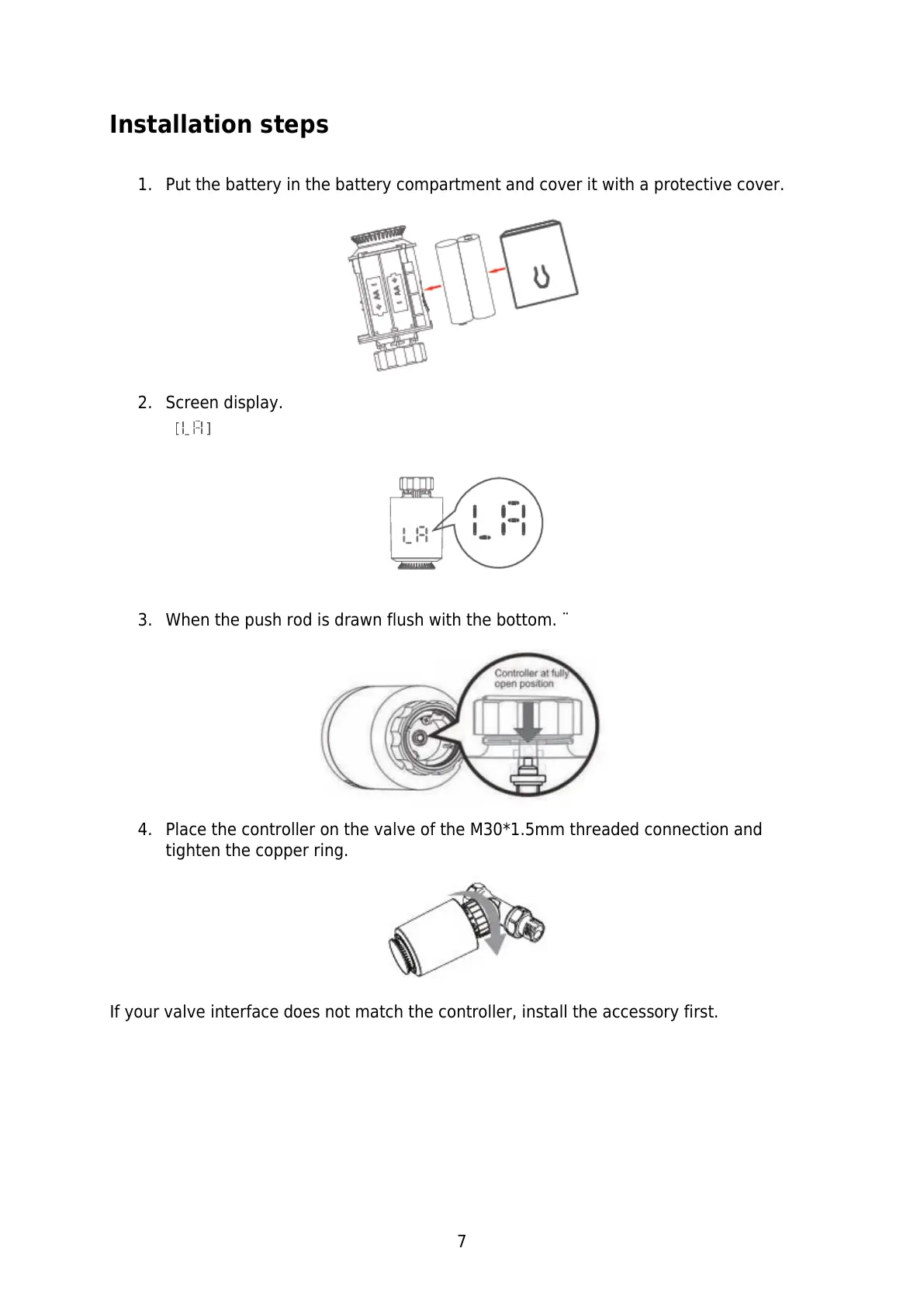

Installation steps
1. Put the battery in the battery compartment and cover it with a protective cover.
2. Screen display.
3. When the push rod is drawn flush with the bottom. ¨
4. Place the controller on the valve of the M30*1.5mm threaded connection and
tighten the copper ring.
If your valve interface does not match the controller, install the accessory first.
