8

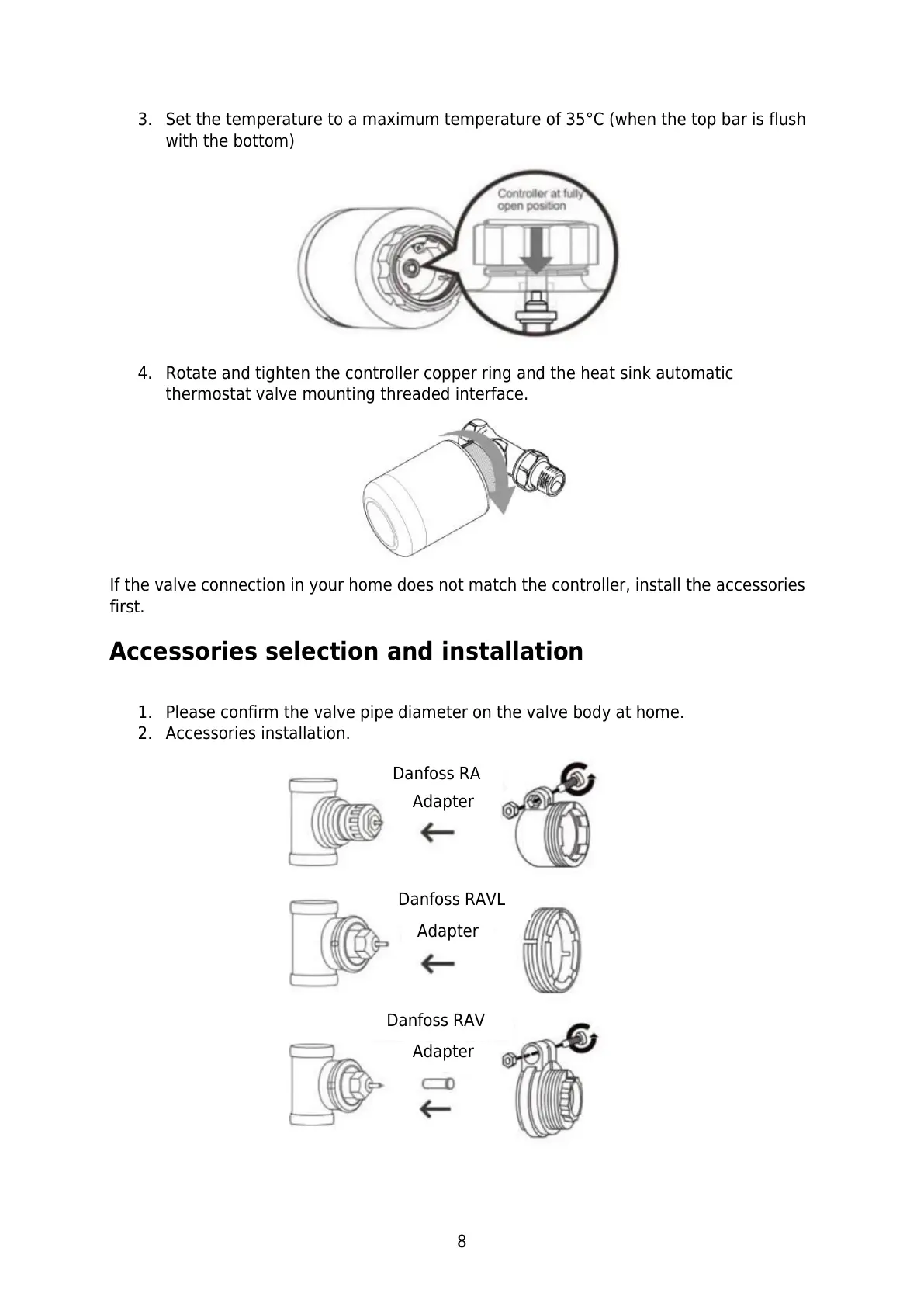

3. Set the temperature to a maximum temperature of 35°C (when the top bar is flush
with the bottom)
4. Rotate and tighten the controller copper ring and the heat sink automatic
thermostat valve mounting threaded interface.
If the valve connection in your home does not match the controller, install the accessories
first.
Accessories selection and installation
1. Please confirm the valve pipe diameter on the valve body at home.
2. Accessories installation.
