AVer H300 - Connect Camera to Main System; Connect Table Hub to Main System

2
Locate the S-VIDEO, VIDEO, or SCART RGB input of the TV/LCD monitor and connect it to AVer H300/H100 using the
appropriate cable.
• Make sure the NTSC/PAL switch is set to the proper TV format.
• For better video quality, we recommend using the S-VIDEO connection if available.

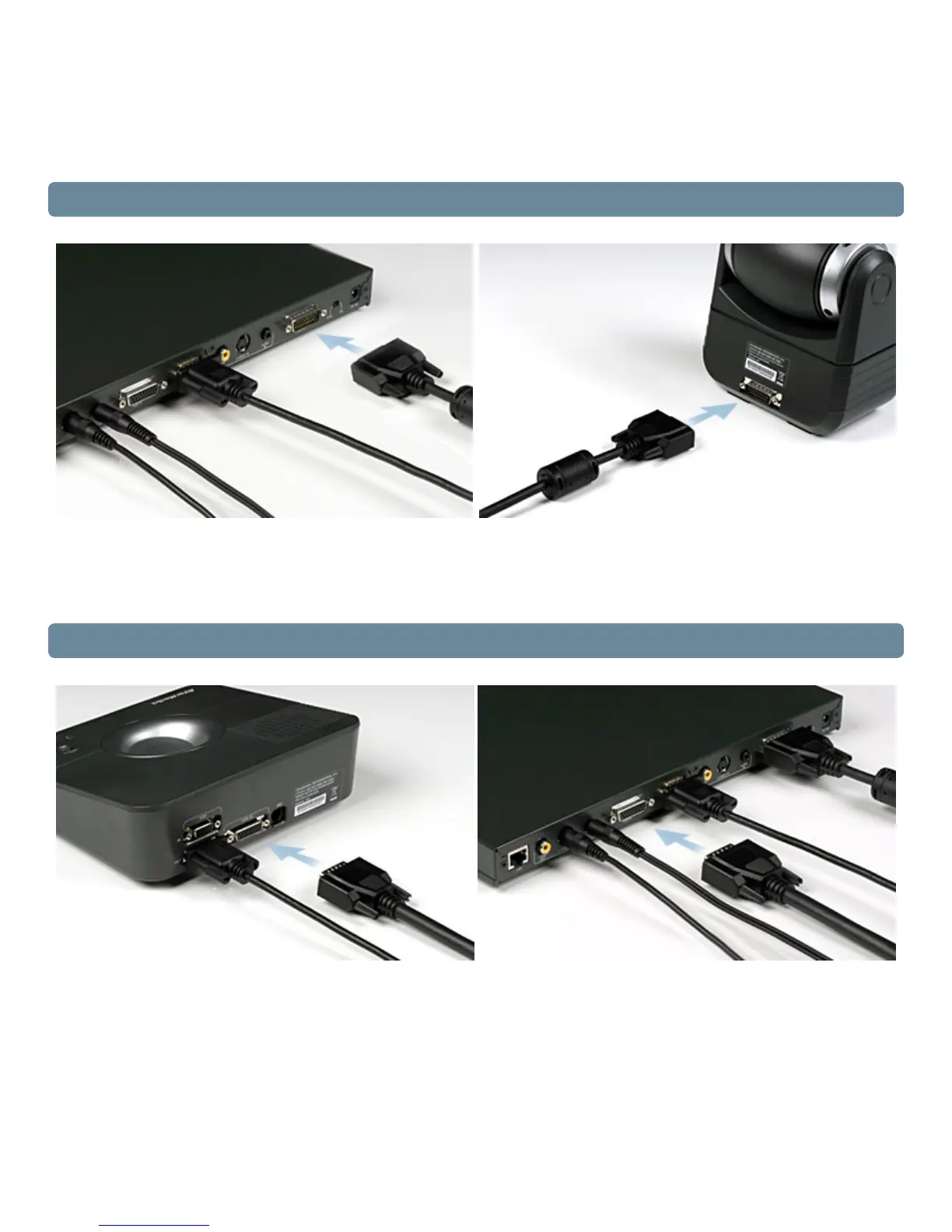

Locate the CAMERA port on the camera and connect it to the CAMERA port of the main system.
• The included 26 Pin-D Sub cable (DB26 female/female) is 5 ft long
Connect the HUB I/O port of the table hub to the HUB I/O port of the main system using the included D-Sub cable.
• The included 26 Pin-D Sub cable (DB26 male/male) is 15 ft long
4. Connecting the Camera and Main System
5. Connecting the Table Hub and Main System
