AVer PTZ310 - Page 4

2

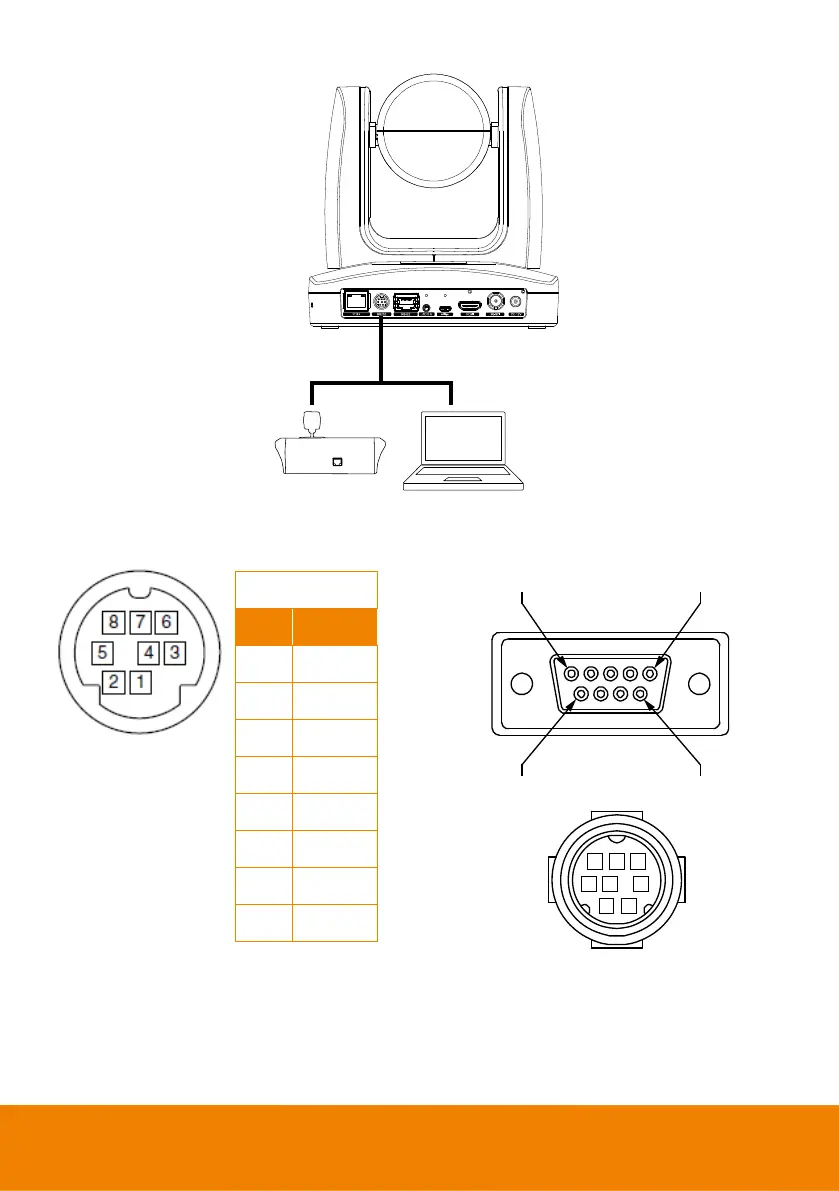

Laptop
Joystick
RS232(VISCA) cable
(Not inculded)
●
RS232 Port Pin definition
●
Din8 to D-Sub9 Cable Pin definition
6 7 8
3 4 5
1 2
15
69
RS232 Pin
No.
Pin
1
DTR
2
DSR
3
TXD
4
GND
5
RXD
6
GND
7
NC
8
NC
