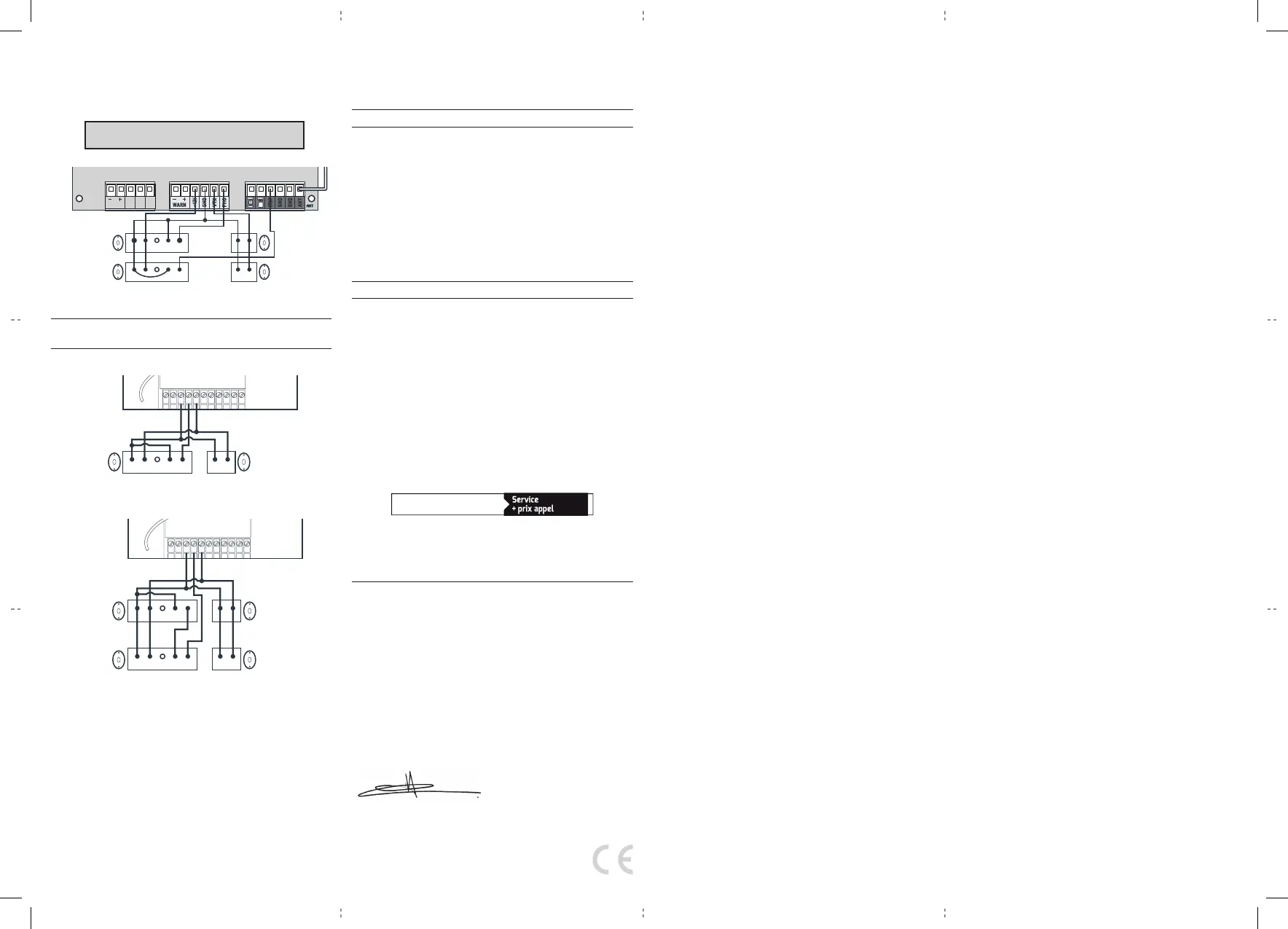

Note: In the previous case, the second set cannot be mounted to protect
the secondary edge of the gate during opening. In this type of set up, the
second set of photocells is to be connected at the “emergency stop” inlet,
as shown below:
+
12V
HALL
GND
M1
~- ~+ NO COM NC
~- ~+ ~+~-NO COM NC
~+~-
Reception pho-
tocell RX1
Transmission
photocell TX1
Reception pho-
tocell RX2
Transmission
photocell TX2
In the event of use at the entrance STOP,
the link between STOP and GND is to be removed
D2 - CONNECTION FOR THE ELECTRIC OPERATION OF
SWING GATES
• 1 set of photocells
GN
GN
PH
M1-
M2-
M1+
M2+
2B
~- ~+ ~+~-NO COMNC
Photocell
TX1
Photocell
RX1
• 2 sets of photocells
GND
GND
PHO
+24V
M1-
M2-
M1+
M2+
warn-
warn+
2B
~- ~+ ~+~-NO COM NC
~- ~+ ~+~-NO COM NC
Photocell
RX1
Photocell
TX1
Photocell
RX2
Photocell
TX2
E - PROCESS FOR ALIGNMENT OF THE
PHOTOCELLS
Ensure that the photocells are precisely aligned; see the relevant section
in the electric operation instructions
F - TECHNICAL AND LEGAL INFORMA-
TION
F1 - TECHNICAL FEATURES
• Type: Presence sensors with modulated infrared beam.
Type D security systems according to EN 12453
• Composition: 1 TX transmitter and 1 RX receiver
• Power supply: 12V DC, 24V DC
• Maximum power allocated: 1W max (for the pair)
• Output: - 1 dry contact output that is normally closed (COM / NC).
- 1 dry contact output that is normally open (COM / NC).
• Angle of transmission / Angle of reception: 10° approximately / 10°
approximately
• Range: 15m maximum (range may be reduced owing to weather-related
disturbances)
• Operating temperature: -20°C / +55°C
• Protection rating: IP44
F2 - ASSISTANCE AND ADVICE
• If, in spite of the care we have taken in designing our products
and drafting these instructions, you do encounter difficulties
when installing your product or you have any questions, we
recommend you contact one of our specialists who will be glad
to help.
• If you encounter operating problems during the installation or a
few days afterwards, it is essential that you are in front of your
installation when contacting us, so that one of our technicians
can diagnose the source of the problem, as it will probably be
the result of a setting that is incorrect or an installation that is
not to specification. If the problem is caused by the product
itself, the technician will give you an RMA number so that you
can return the unit to the shop.
Without this RMA number, the shop may refuse to exchange
your product.
Need advice for the installation or start-up of your product?
Contact our after sales service team technicians:
0,35 €
/ min
Monday to Friday, 9AM to 12PM and 2PM to 6PM CET.
Avidsen undertakes to keep a stock of spare parts for this
product throughout the contractual warranty period.
F3 - EU DECLARATION OF CONFORMITY
Declaration of compliance with the EMC Directive
Avidsen declares, under its sole responsibility, that the equipment with
reference number 114359 complies with the applicable Union harmonisation
legislation 2014/53/EU. Its conformity has been assessed pursuant to the
applicable standards in force:
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 61000-6-2:2005
• EN 61000-6-4:2007+A1:2011
The abovementioned product complies with the RoHS 2011/65/EU
directive.
Signed by Alexandre Chaverot,
CEO, on behalf of Avidsen
19 avenue Marcel Dassault, 37200 Tours, France
Tours, 15/04/2022
