Installing the Pendant Wall Mount
1. Determine where the cables will enter the pendant wall mount.
l
If the cables will be pulled from inside the mounting surface, use the cable entry hole at the rear
of the pendant wall mount.
l
If the cables will be coming out of an external conduit pipe, use the 3/4” NPT pipe entry hole on
the bottom of the pendant wall mount.
2. Use the provided mounting template to drill four mounting holes into the mounting surface.
l
If you are using the rear cable entry hole, also drill the cable entry hole into the mounting
surface.
3. Pull the required cables through the preferred cable entry hole on the pendant wall mount.
l
If you are using the pipe entry hole, pull the cables through the pipe conduit then the wall
mount. Next, apply thread seal tape to the pipe conduit and screw it into the pipe entry hole.

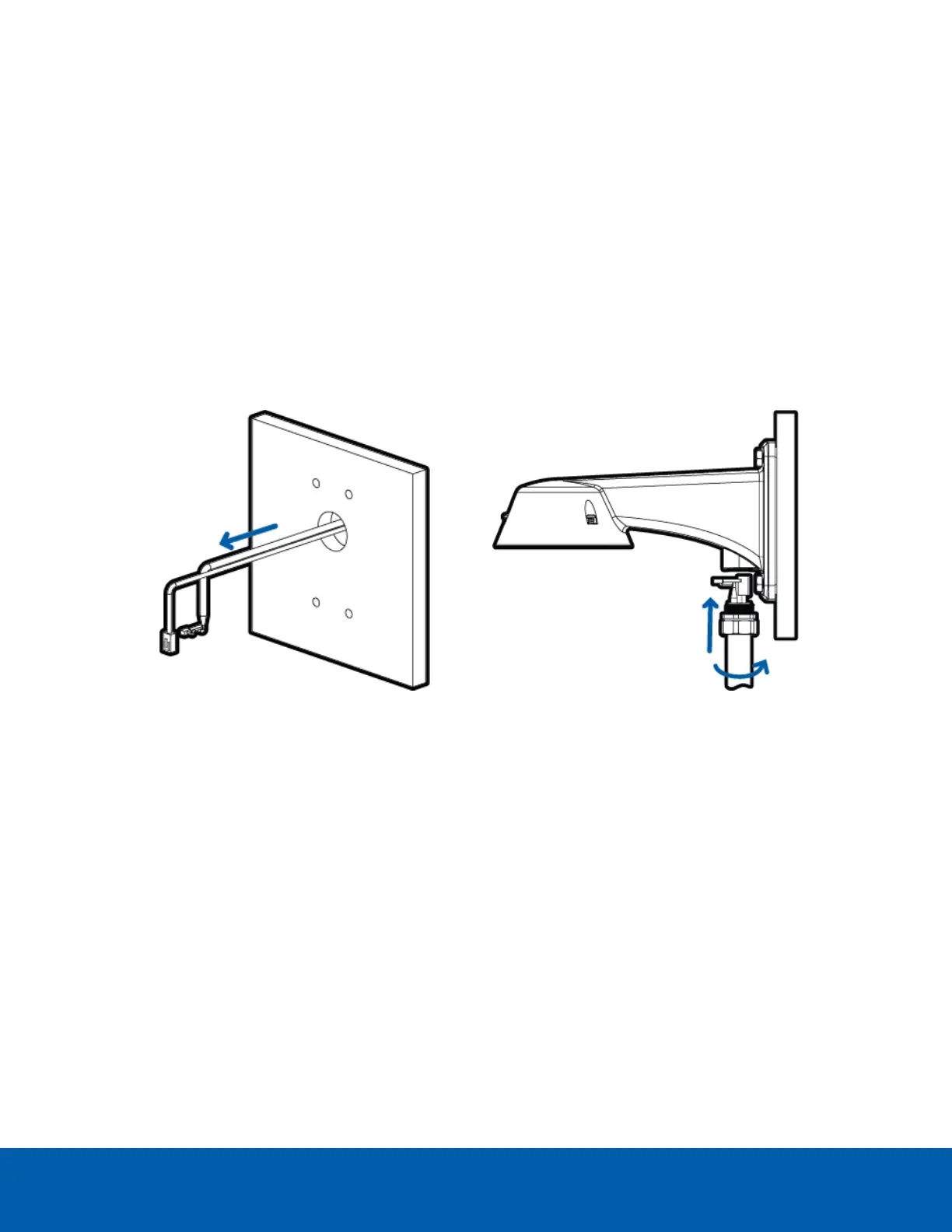

Figure 1: Cables pulled from the back entry hole. Figure 2: Cables pulled from the conduit entry hole.
Installing the Pendant Wall Mount 7
