Pigtail color Short name Full name
Blue and white stripe NO Relay Normally Open*
Orange and white stripe COM Relay Common*
Green and yellow stripe GND Ground (RTN)*
Connections to third-party device (optional)
*Relay is not rated for locking hardware. To power locking hardware, use an Avigilon Smart Hub or third-party
access control panel.
3 - Powering

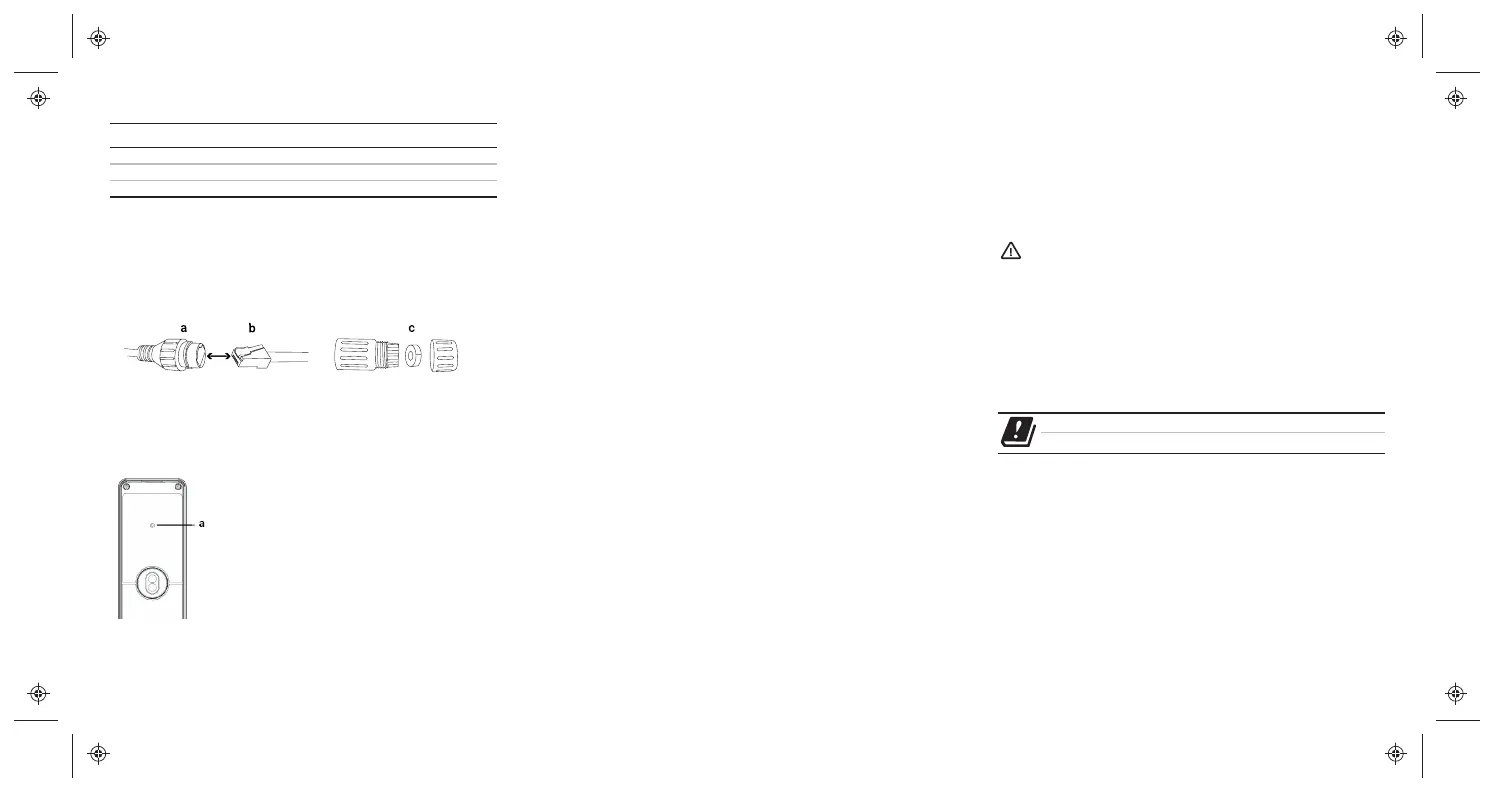

1. Use the provided waterproof coupling (c) to connect the RJ-45 jack (a)
to an Ethernet cable (Cat 5e, 26 AWG or better), which is connected to
a networked Power over Ethernet (PoE) source (b).
2. Optional. Use the NO and COM stripe wires to connect to a third-party
device. Use the WD0 and WD1 wires to connect to an input on the
panel of a legacy access control system.
4-Provisioning
Note: You must first create a Video Intercom
Reader Pro in the Alta Control Center.
1. Open the Open Admin app.
2. Search for org name.
3. Press Admin button (a) on the back of reader.
Note: Remove the back cradle to expose the
Admin button.
4. Tap the serial number of the reader in the Open
Admin app.
5. Tap Provision Device in the Open Admin app
and follow in-app instructions.
FCC Compliance
Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the User will be required to correct the interference at his own expense.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
WARNING: Operation of this equipment in a residential environment could cause radio
interference.
WARNING: This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
Industry Canada Notice & Marking
This device complies with the ISED radiation exposure limit set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance
20cm between the radiator & your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme avec l’exposition aux radiations ISED définies pour un
environnement non contrôlé. Cete équipment doit être installé et utilisé à une distance
minimum de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pas être co-
localisées ou opérant en conjonction avec une autre antenne ou transmetteur
This device contains licence-exempt transmitter(s) that comply with Innovation,
Science and Economic Development Canada’s license-exempt RSS(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and 2) this device must accept any
interference, including interference that may cause undesired operation of the device.
L’émetteur exempt de license contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de license. L’exploitation est autorisée aux deux conditions
suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
The frequency and the maximum transmitted power in EU is listed below.
Bluetooth LE (2402-2480MHz): 2 dBm
Use only the Power Sourcing Equipment certified by UL 60950-1/UL62368-1
(compliant with LPS), or by UL294 (Power-Limited Class2), or power supplied through
PoE output on terminal server.
Certifications
CE, FCC, IC, IMDA, IP65, MET, NOM, RCM, RoHS, UKCA, UL 294*, WEEE
Power rating: 802.3af PoE (48VDC, 0.27A)
*Performance Levels: Attack Level 1, Endurance Level IV, Line Security
Level 1, Standby Power Level 1
BE BG CZ DK DE EE IE EL ES FR HR IT CY LV
LT LU HU MT NL AT PL PT RO SI SK FI SE
