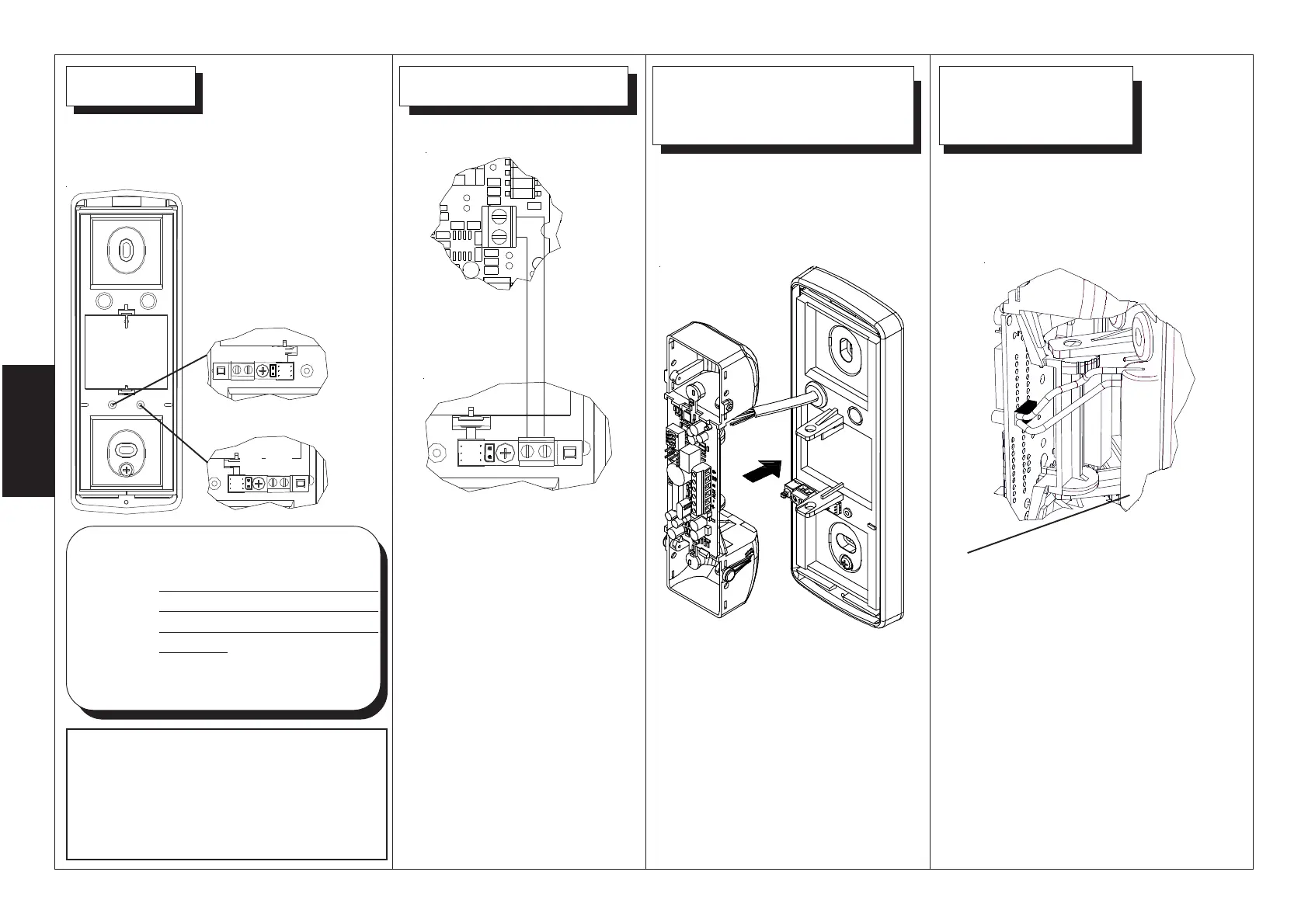

Tamper
SPIDER PA / SPIDER DUAL
Electronic board
Tamper SPIDER PA WS
The two terminals on the
board are used for tamper
signalling , they must be
connected to the tamper
module given within the
detector.
NOTE: When they are not
used a bridge between
them must be made.
Like the wire, tamper module
must be placed on the opposite
side respect to the board.
S1
TT
S1
TT
Click-on the hinge pin of the
board on the lock slot.
The terminals must be on the
right side.
The tamper
contact is brought
out at the C/NC
terminals of the
module
Click-on the hinge pin of the
board on the lock slot.
The dip switch must be on the
right side.
SPIDER PA WS
Electronic board
Note: SPIDER PA WS is delivered
with a lithium battery 3.6 V 2.2 Ah
(mod. BDL22A) complete with cable
in AMP connector.
In order to supply the detector, insert
the AMP connector of the battery to
the proper reference placed on the
rear side of the detector as shown in
the picture and place battery on the
base fixing it with the bi-adhesive
tape given within.
!! PAY ATTENTION !!
With regard to the models SPIDER PA
and SPIDER DUAL, failing to use the
anti-tamper device will cause the IMQ
certifiction to decade.
S4 - OFF TT
Closed
Open
(default)
Anti-tamper not connected
(for SPIDER PA and SPIDER
DUAL models the IMQ
certification varies from 2nd to
1st level)
Anti-tamper connected
E
N
G
Battery
