2.3 TV Set Connections
AUDIO IN
HDMI IN
VIDEO IN
VIDEO
R
L
HDMI

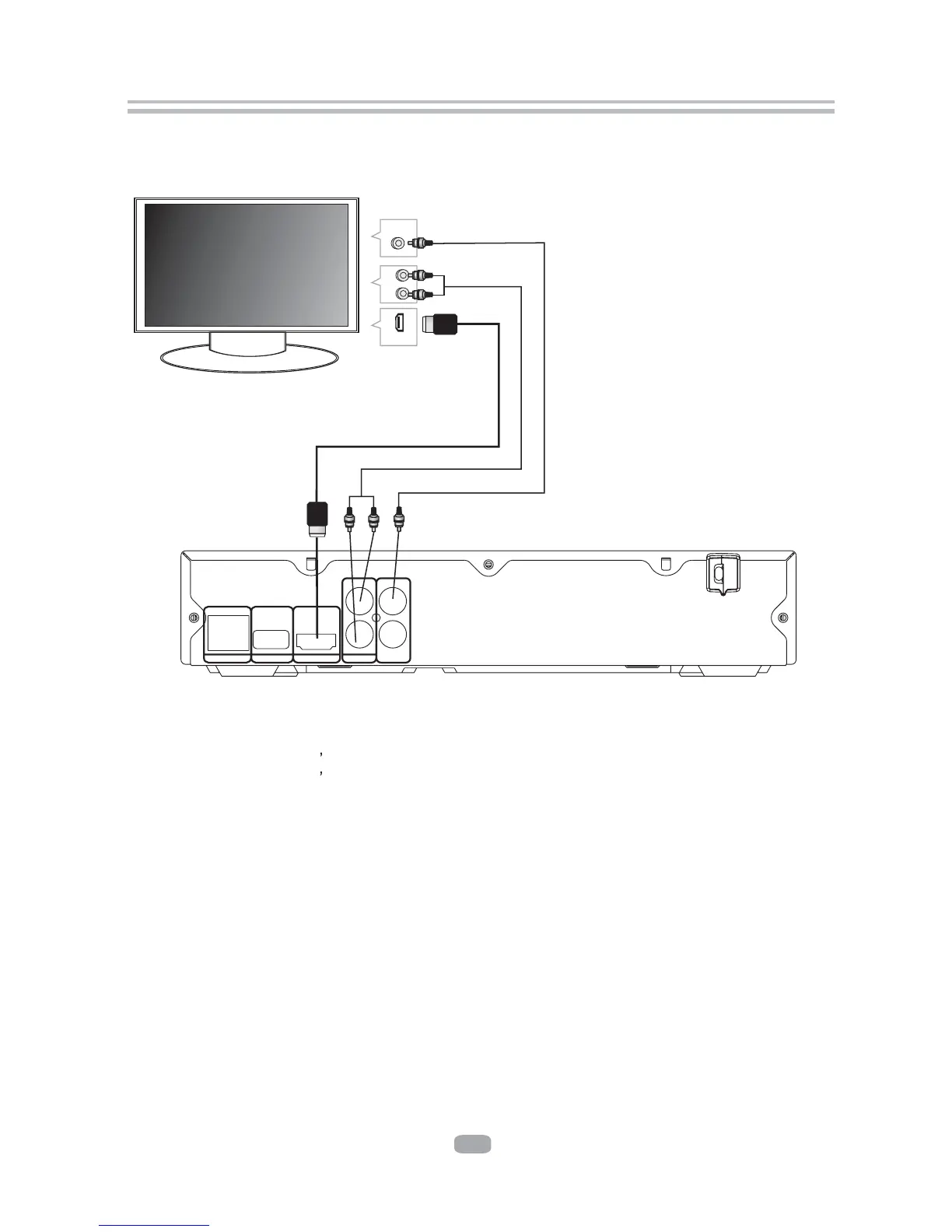

2.3.1 CONNECT BD PLAYER TO TV SET BY AV CABLE
Connect the BD player s L and R jack to the audio input jack on the TV.
Connect the BD player s video out jack to the video input jack of TV.
2.3.2 CONNECT THE BD PLAYER TO TV SET USING THE HDMI OUTPUT
Use the HDMI cable (not supplied) to connect BD player to your TV.
Notes: The player supports video resolution up to 1080p 60Hz on HDMI output.
HDMI OUT
LAN USB
AUDIO OUT
L
R
COAXIAL
VIDEO OUT
