E. Controls, Indicators, and Connectors

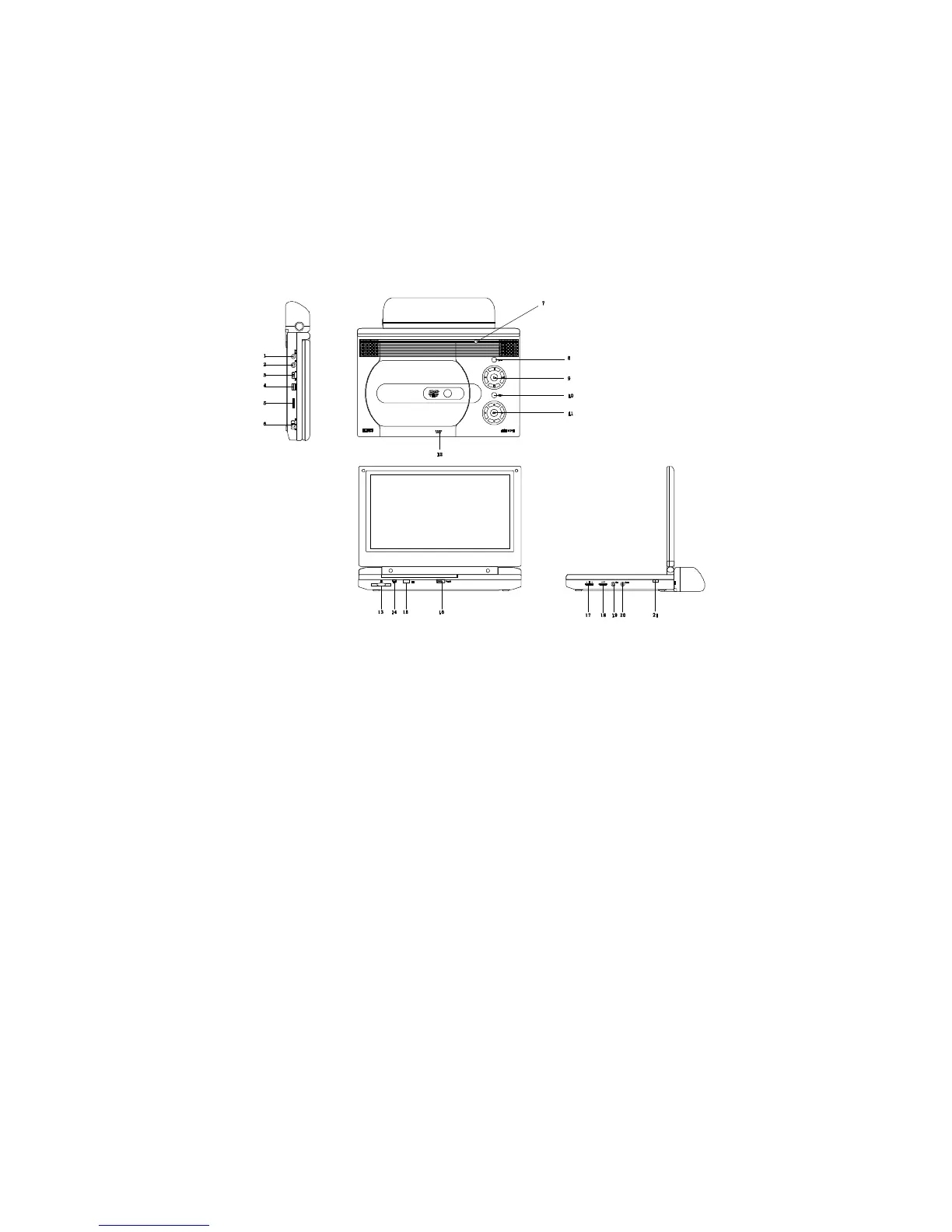

1. Unit View (Refer to Figure 2)
Figure 2
1) DC 9V Input Jack
2) AV Jack
3) AV In/Out SW
4) USB Port
5) E-Port
6) Power on/off SW
7) LCD Panel shut off
8) Wide Button
9) Previous/Next/Pause/Stop/Play
10)Menu Button
11) Up/Down/Left/Right/OK Button
12) Close place
13) SD/MMC/MS Slot
14) Power LED
15) Remote Control Sensor
16) Open Switch
17) Brightness Up/Down Control
18) Volume Up/Down Control
19) Headphone Jack 2
20) Headphone Jack 1
21) Charge LED
