Awoco TZ-6001 - Side Ended Sliding Doors Installation; Sliding Doors Installation; Roll Up Gate Installation; Magnetic Circuit Conversion Kit

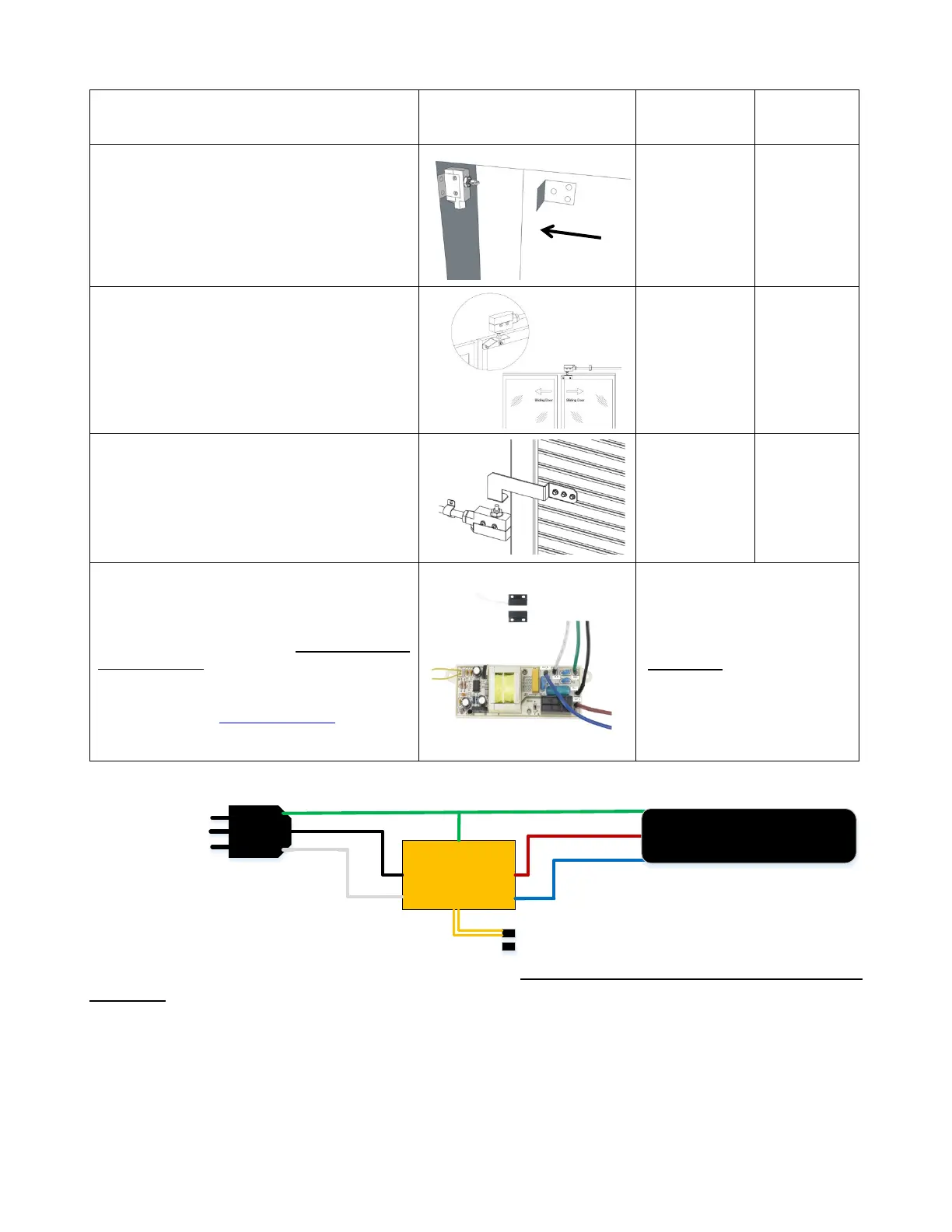

Door Type Installation Diagram
Applicable
Micro Switch
Models
Installation
Difficulty
Rating
Side ended sliding doors
If a sliding door ended in the side
, please
place the plunger micro switch on the side of
the door frame with a metal bracket (not
included) mounted on the door.
TZ-6001
TZ-6002
TZ-6003
Easy
Sliding doors
With a metal bracket (not included), a micro
switch can be mounted on the top of the door
as shown in diagram. .
TZ-6002
Hard
Roll up gate
For roll up warehouse gate, please place the
roller plunger micro switch on the side of the
door frame with a metal bracket (not
included) mounted on the gate.
TZ-6001
TZ-6002
TZ-6003
Hard
If the door closer is defective or the door is
not closed fully, or the window is too light to
press the plunger, micro switch won’t work on
these situations.
Please refer to the Awoco
Magnetic Circuit
Conversion Kit
. It converts the 120VAC to
12VDC and use the magnetic switch.
The magnetic switch can be installed in all
situations. Visit www.awoco.com
for more
detail on magnetic switch EASY installation.
Magnetic Circuit
Conversion Kit
(require electrical connection
technique, but not hard)
WARNING: don’t replace the
120VAC micro switch directly
with a 12VDC magnetic
switch. The magnetic switch
will burn out at 120VAC. Get
the whole conversion kit.
Magnetic Circuit
Conversion Kit
Ground
Hot
Neutral
Hot
Neutral
Magnetic switch
120V AC
Power Input
12VDC
Other Brands
Air Curtain
If you want to buy new air curtains, please consider Awoco Magnetic Switch Controlled Air
Curtains which save you a lot of time on the door switch installation.
