Safety advices:
Switch off all devices befor the Installation
Installation and repairs to the equipment may only be carried out by
technicians observing the current VDE guidelines. No liability will be
assumed in the case of faulty installation and commissioning.
Before opening the equipment remove the power supply, otherwise there
is danger of of short-circuit. This is also valid for cleaning the equipment
or working on the connections.
The equipment may only be operated in dry rooms. In humid rooms or
outdoors there is danger of short-circuit (caution: risk of fire).
Choose the location of installation or mounting such that children may
not play unsupervised near the equipment and its connections. The
location of installation or mounting must allow a safe installation of all
cables connected. Power feeding cables as well as feeder lines may not
be damaged or clamped by objects of any kind. To prevent damage to
your equipment and to avoid possible peripheral damages, the devices
foreseen for wall mounting may only be installed on a flat surface.
Choose the location of installation or mounting so that under no circum-
stances liquids or objects can get into the equipment (e.g. condensation,
water coming from leaking roofs or flowing water, etc.).
Avoid exposure of the equipment to direct sunlight and to other heat
sources (e. g. radiators. other electrical devices, chimney, etc.). Devices
that are equipped with heat sinks or ventilation slots must under no
circum-stances be covered or blocked. Also ensure for a generous air
circulation around the equipment. In this way you avoid possible damage
to the equipment as well as a risk of fire caused by overheating. Abso-
lutely avoid that cables come near any source of heat (e.g. radioators,
other electrical devices, chimney, etc.).
Herewith AXING AG declares that the marked products comply with the valid
guidelines.
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
Technical data:
Type BZU 10-00
Frequency range 188…230 MHz (CH 7...CH 12)
334...374 MHz (S 25...S 29)
Measurement range 60...95 dBµV
Impedance 75 Ohm
RF connectors
Type F-female
General
Operation voltage 9 VDC (PP3)
Power consumption 450 mW
Current consumption 50 mA
Dimensions (W × H × D) appr. 60 x 120 x 26 mm
Weight 0,110 kg
Operation instructions
BZU 10-00
basic-line

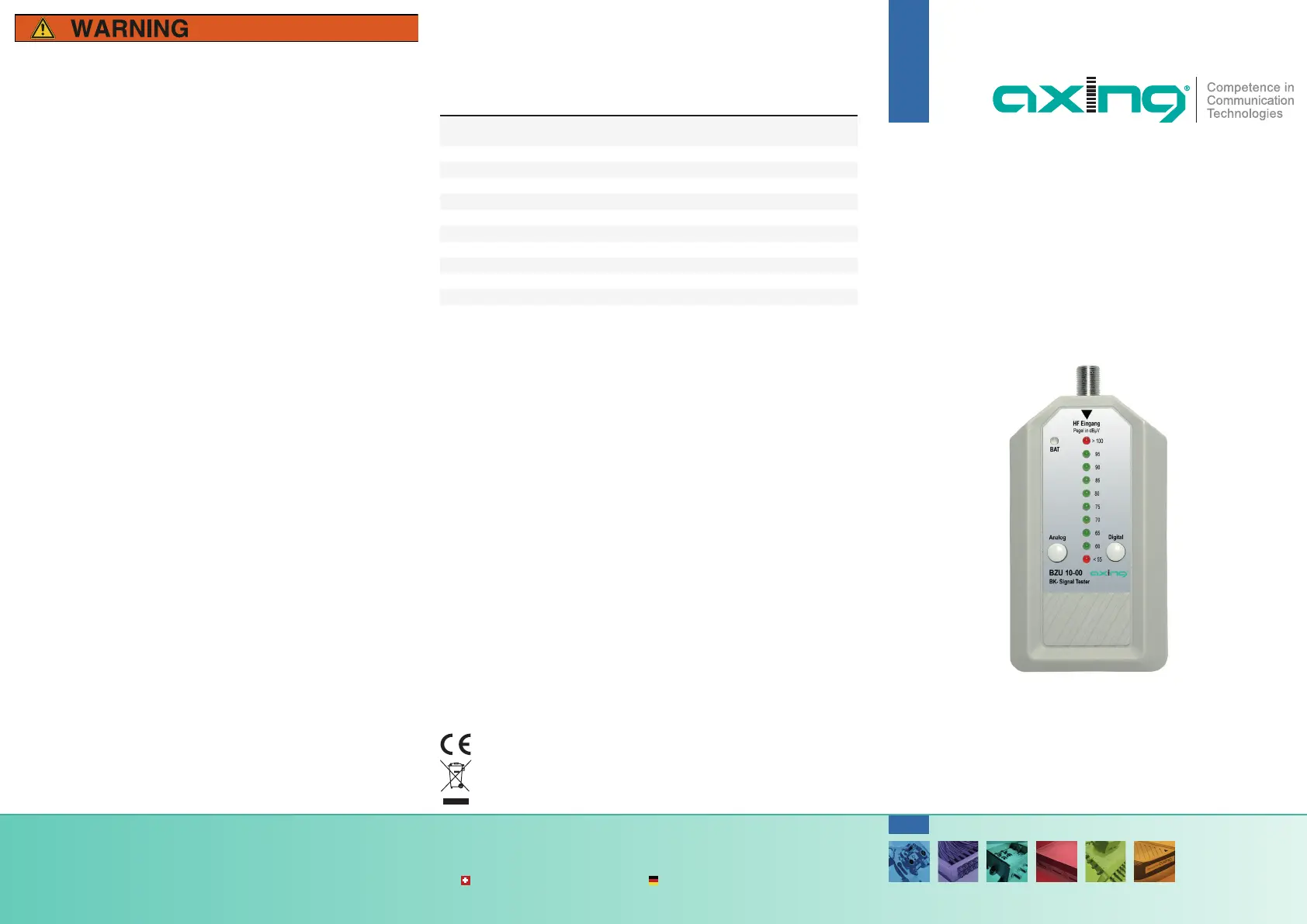

CATV signal tester
