Manufacturer
AXING AG
Gewerbehaus Moskau
8262 Ramsen
EEA contact address
Bechler GmbH
Am Rebberg 44
78239 Rielasingen
State of the art 2019-02-04
Technical improvements, changes in design, printing- and other errors expected.
Safety advices:
Installation and repairs to the equipment may only be carried out by
technicians observing the current VDE guidelines. No liability will be
assumed in the case of faulty installation and commissioning.
To prevent damage to your equipment and to avoid possible peripheral
damages, the devices foreseen for wall mounting may only be installed
on a flat surface.
Choose the location of installation or mounting such that children may
not play unsupervised near the equipment and its connections. The
location of installation or mounting must allow a safe installation of all
cables connected. The mains cable as well as feeder lines may not be
damaged or clamped by objects of any kind.
If possible - please install the Multiswitch underneath the roof or at
any dry location. If installed outdoor, make sure to use watertight
connectors!
Never work on antennas during thunderstorms or when a thunderstorm
is approaching. There is a risk of death!

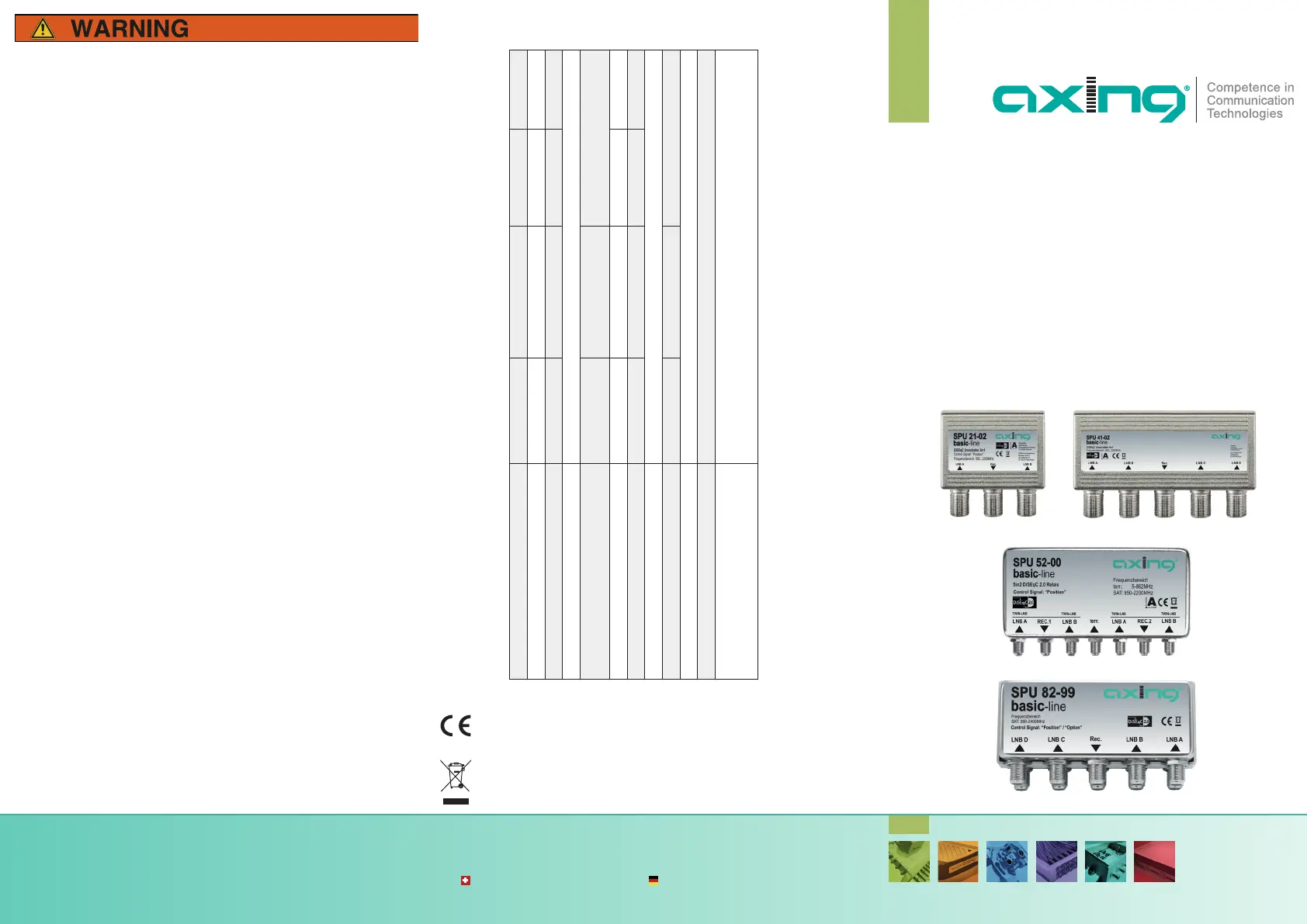

SPU 21-02 | SPU 41-02
SPU 52-00 | SPU 82-00
basic-line
DiSEqC switches
Operation instructions
Technical data:
Article SPU 21-02 SPU 52-00 SPU 41-02 SPU 82-00
Type 2 in 1 2 × 2 in 1 + TERR 4 in 1 2 × 4 in 1
Switching criteria Position Position Position | Option Position | Option
Supported DiSEqC level of the SAT receiver 1.0 | 2.0
Frequency range (upstream | TERR | SAT) – | – | 950…2200MHz
5…65 MHz | 85…862 MHz |
950…2200 MHz
– | – | 950…2200 MHz
Number of inputs 2 5 4 2 × 4
Subscriber ports 1 2 1 2
Through loss SAT ≤ 4 dB
Isolation between LNBs ≥ 20 dB ≥ 30 dB ≥ 30 dB
Max. remote feed current 500 mA
Ambient temperature range (acc. to EN 60065) -20…+50°C
DiSEqC switching criteria:
Position
Option
extension of 2 LNBs
extension of 3-4 LNBs
Herewith AXING AG declares that the marked products comply with the valid
guidelines. You can call up the complete EU declaration of conformity for
download by entering the article in the search field at www.axing.com.
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
