AXIS 200+ Users Manual Appendix D: The Auxiliary IO Port
83
Appendix D The Auxiliary IO Port
A Mini-DIN 8-pole external connector is provided for auxiliary IO
connections to the AXIS 200+. This appendix discusses the additional
functionality that this connector provides.
Physical Connection
The auxiliary IO connector provides the interface to one relay switch
output and two digital inputs.
Pinout

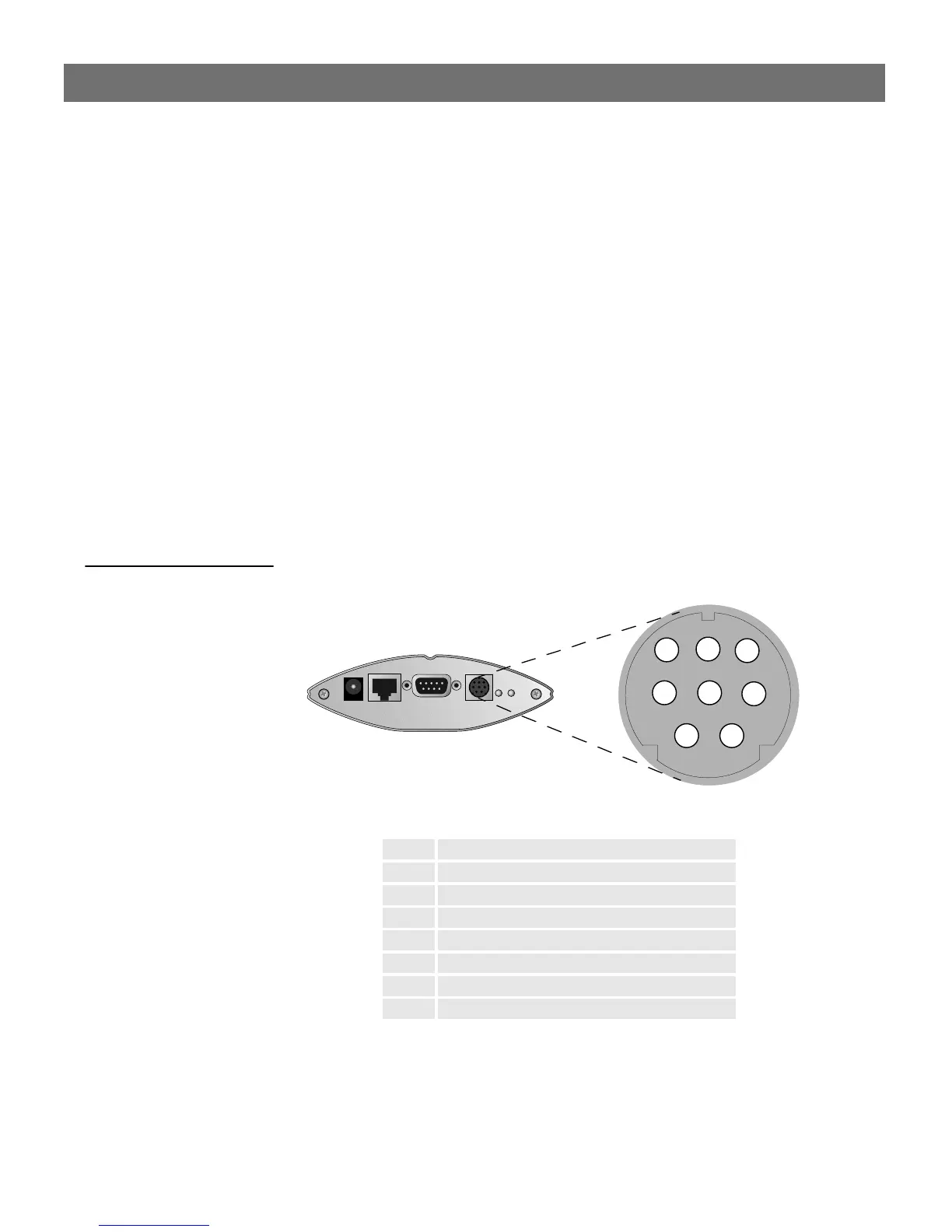

A diagram for the auxiliary IO connector and a pinout table are
detailed below:
Pin Function
1 Relay switch (Max 24V AC/DC, 100mA)
2 Relay switch (Max 24V AC/DC, 100mA)
3 Iris output signal
4 NC
5 Auto Iris Lens power (+12V max 50mA )
6 Input 1
7 Input 2
8 GND
3
2
7
4
1
5
8
6
