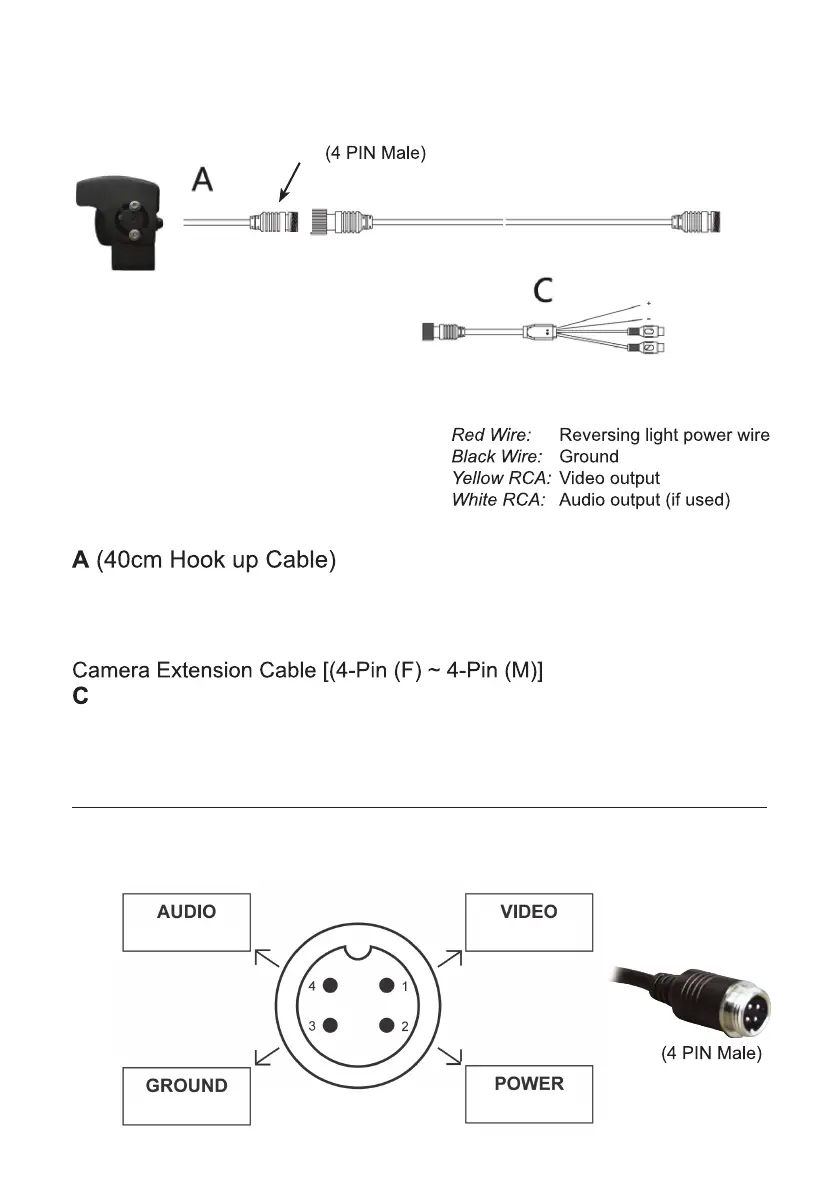

Axis JS7001K - Camera Wiring Diagram; 4-Pin Connector Configuration

5
CCD Camera [Termination to 4-Pin (M)]
Use when connecting to a monitor with RCA input
[AX4P-F/RCA-M]
4 Pin Conguration
(OPTIONAL ADAPTER) - 4-Pin (F) to RCA
4-Pin Locking Socket (Female) Connection 4-Pin Locking Plug (Male) Connection
Denition: Connector Front View Denition: Connector Front View
4-Pin Locking Socket (Female) Connection 4-Pin Locking Plug (Male) Connection
Denition: Connector Front View Denition: Connector Front View
4-Pin Locking Socket (Female) Connection 4-Pin Locking Plug (Male) Connection
Denition: Connector Front View Denition: Connector Front View
[OPTIONAL]
4 PIN to RCA Connection
White (audio)
Red
Black
Yellow (video)
B
B (15 Metre Cable)
CAMERA WIRING DIAGRAM:
