Axis Q7920 - Hardware and Specifications; Hardware Overview and Component Identification

AXISQ7920Chassis

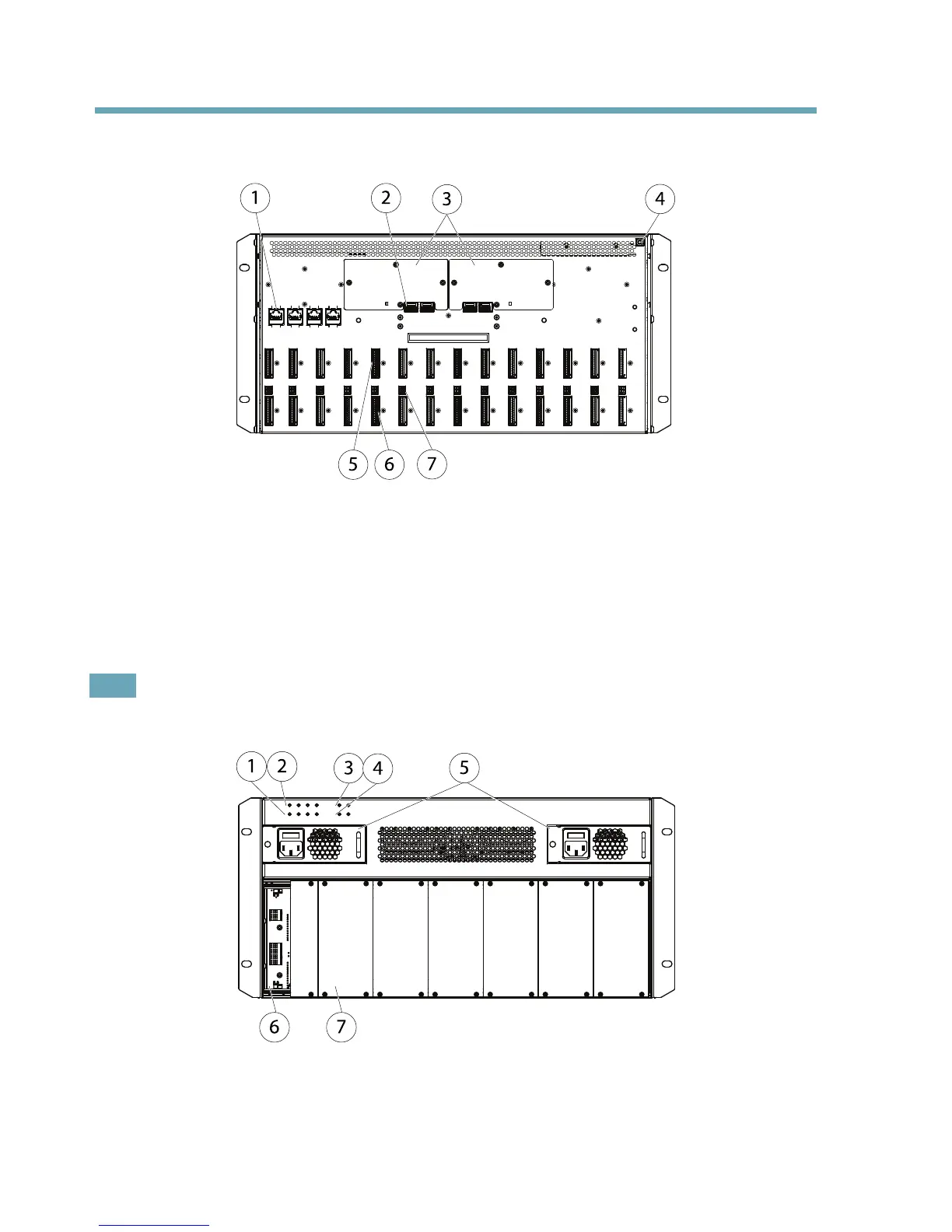

HardwareOverview
1 2
3
5 6
4
7
1
Networkconnector1–4RJ45
2
Networkport1–4SFP
3
Fantraycover
4
Groundingscrew
5
I/Oterminalconnector
6
RS-485connector
7
Powerin/outconnector
Note
SFPmodulesarenotincludedinthedeliveryofAXISQ7920.
1 2
3
4
5
6 7
1
NetworkLED1–4SFP
2
NetworkLED1–4RJ45
3
PSULED1–2
