Axis T8154 60 W SFP User Manual

90 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

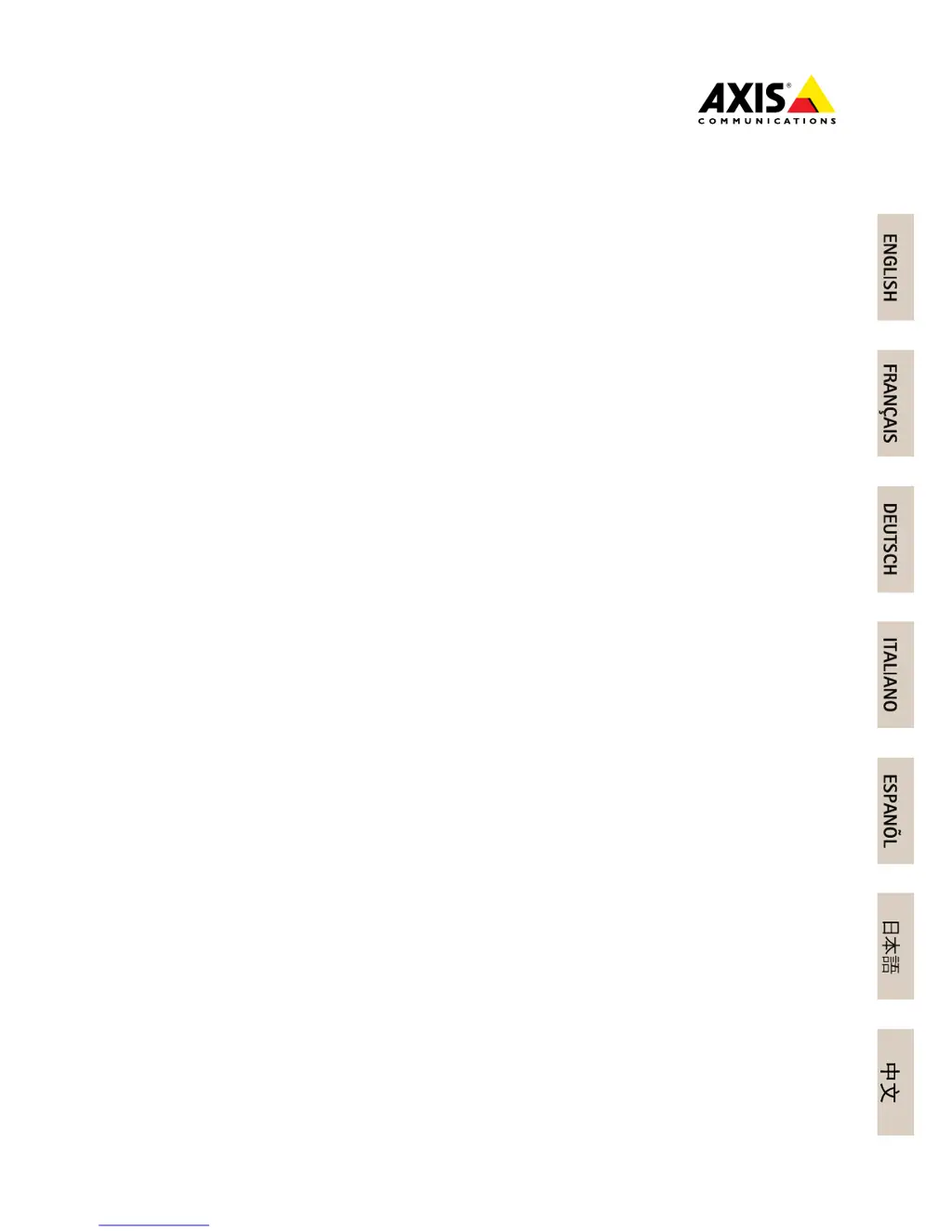

INSTALLATIONGUIDE

AXIST815460WSFPMidspan

InstallationGuide

Table of Contents

Questions and Answers:

A
aalvarezJul 28, 2025
What to do if the remote device connected to the Axis Laboratory Equipment powers up but there is no data link?
- N
  Noah RoyJul 28, 2025
  If your Axis Laboratory Equipment's remote device powers up but lacks a data link, first ensure you're using a standard STP CAT5 or higher, straight-wired network cable with four pairs if you're using an Ethernet RJ45 cable. Check that the cable length between the network switch and the remote device is less than 100 m (330 ft). If you're using an optical fiber cable, confirm that the cable and the SFP module are the correct type and that the cable is intact and functional. If possible, try connecting the remote device to a different midspan.
K
kristenlongAug 6, 2025
What to do if the remote device connected to the Axis Laboratory Equipment midspan does not power up?
- N
  Nicole BrownAug 7, 2025
  If the remote device connected to the Axis Laboratory Equipment's midspan isn't powering up, make sure the remote device is designed for PoE operation. Also, verify that the remote device is connected to the midspan’s DATA PWR OUT port using a standard STP CAT5 or higher, straight-wired network cable with four pairs. If you're using an external power splitter, check that it works. Ensure there isn't a short circuit on the twisted pair cables or RJ45 connectors. As a last step, if possible, connect the remote device to a different midspan.
T
Tyler PriceAug 16, 2025
How to troubleshoot Axis Laboratory Equipment when the midspan does not power up?
- D
  Denise GonzalezAug 17, 2025
  If the Axis Laboratory Equipment midspan isn't powering up, unplug and then re-plug the midspan’s power cable, and observe the power LED indicator during the power-up sequence. Ensure the power inlet voltage is between 100–240 V AC. Also, verify that the power inlet cable is intact and functional.

Axis T8154 60 W SFP Specifications

General

Brand	Axis
Model	T8154 60 W SFP
Category	Laboratory Equipment
Language	English

Summary

Legal Considerations

Liability and Intellectual Property

Covers liability for errors and IP rights.

Equipment Modifications and Trademarks

Deals with unauthorized changes and trademark acknowledgments.

Regulatory Compliance Introduction

Lists compliance with directives like EMC, LVD, RoHS.

Electromagnetic Compatibility (EMC)

EMC Standards by Region

Details EMC compliance for USA, Canada, and Europe.

Specific Regional Regulations

EMC, Safety, and Disposal

Covers AU/NZ, Japan, Korea EMC, safety, and disposal.

EU and China Compliance

Details WEEE and RoHS compliance for EU and China.

Contact and Support Information

Contact Information

Provides Axis Communications AB address and contact details.

Warranty and Support Resources

Links to warranty info and support channels.

Safety Information

Hazard Levels

Explains danger, warning, caution, and notice indicators.

Other Message Levels

Explains important and note message types.

Safety Instructions

General Safety Precautions

Covers installation, usage, storage, and cleaning guidelines.

Transportation

Packaging and Handling

Advises using original packaging for transport.

Package Contents

Included Items

Lists the items included in the product package.

Hardware Overview

Component Identification

Identifies the numbered components of the hardware.

Installation Procedure

Connecting to Network Switch

Describes two alternative ways to connect the midspan.

Installation Steps

Network Cable and Camera Connection

Details using STP cable, connecting to camera, and power.

Further Information

Document and Training Resources

Provides links for latest documents and online training.

Optional Accessories and Warranty

Directs to website for accessories and warranty.

Technical Specifications

LED Indicators

Describes the meaning of LED colors and statuses.

Operating Conditions

Specifies temperature and humidity ranges.

Power and Ethernet Interface Details

Power Consumption Specifications

Lists input voltage, current, output power, and voltage.

Ethernet Interface Ports

Describes RJ45 and SFP slot interfaces.

Troubleshooting Guide

Midspan Power Issues

Provides solutions for when the midspan does not power up.

Remote Device Power Issues

Offers steps for when the connected device doesn't power up.

Connectivity Troubleshooting

No Data Link Issues

Solutions for when a device powers up but has no data link.
