DESCRIPTION

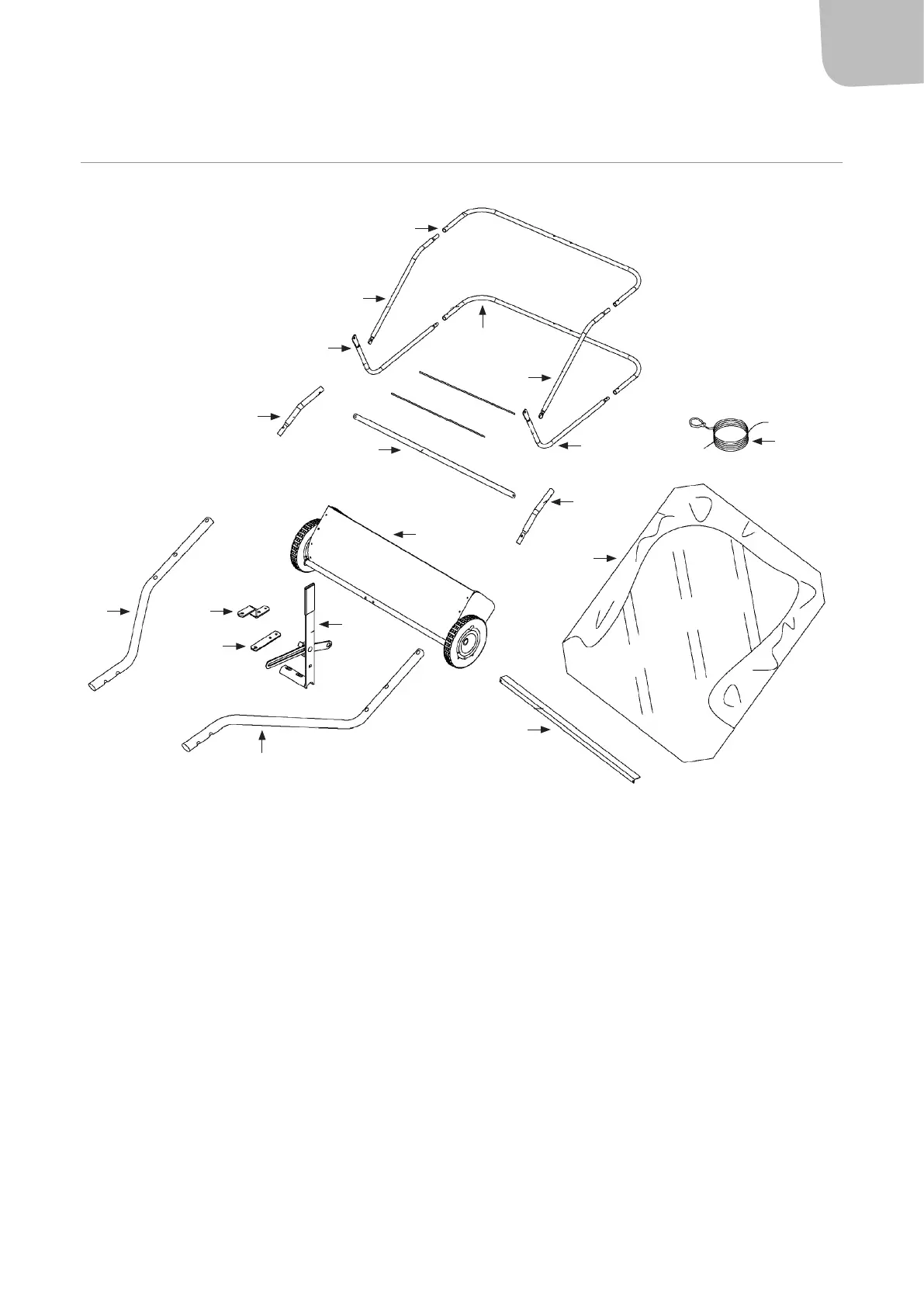

1 Hitch Tube R.H 9 Sweeper Housing Assembly Bag Arm Tube
2 Hitch Tube L.H. 10 Bag Frame Strap
3 Handle Assembly 11 Hopper Support Rod
4 Hitch Bracket (straight) 12 Lower Hopper Side Tube
5 Hitch Bracket 13 Rear Hopper Tube
6 Hopper Bag 14 Upper Hopper Side Tube
7 Connecting Rod 15 Rope
8 Sweeper Housing Assembly
1
13
6
10
9
14
12
11
14
5
3
9
12
8
15
4
7
2
13
