Axon AX1023 Replacement Guide

Axon Body 3 Camera Battery Replacement
Last Updated: September 2019 Page 3 of 7
Torx is a trademark of Acument Intellectual Properties, LLC.  AXON, Axon, and Axon Body 3 are trademarks of Axon Enterprise,
Inc., some of which are registered in the US and other countries. For more information, visit www.axon.com/legal.
All rights reserved. © 2019 Axon Enterprise, Inc. Rev A

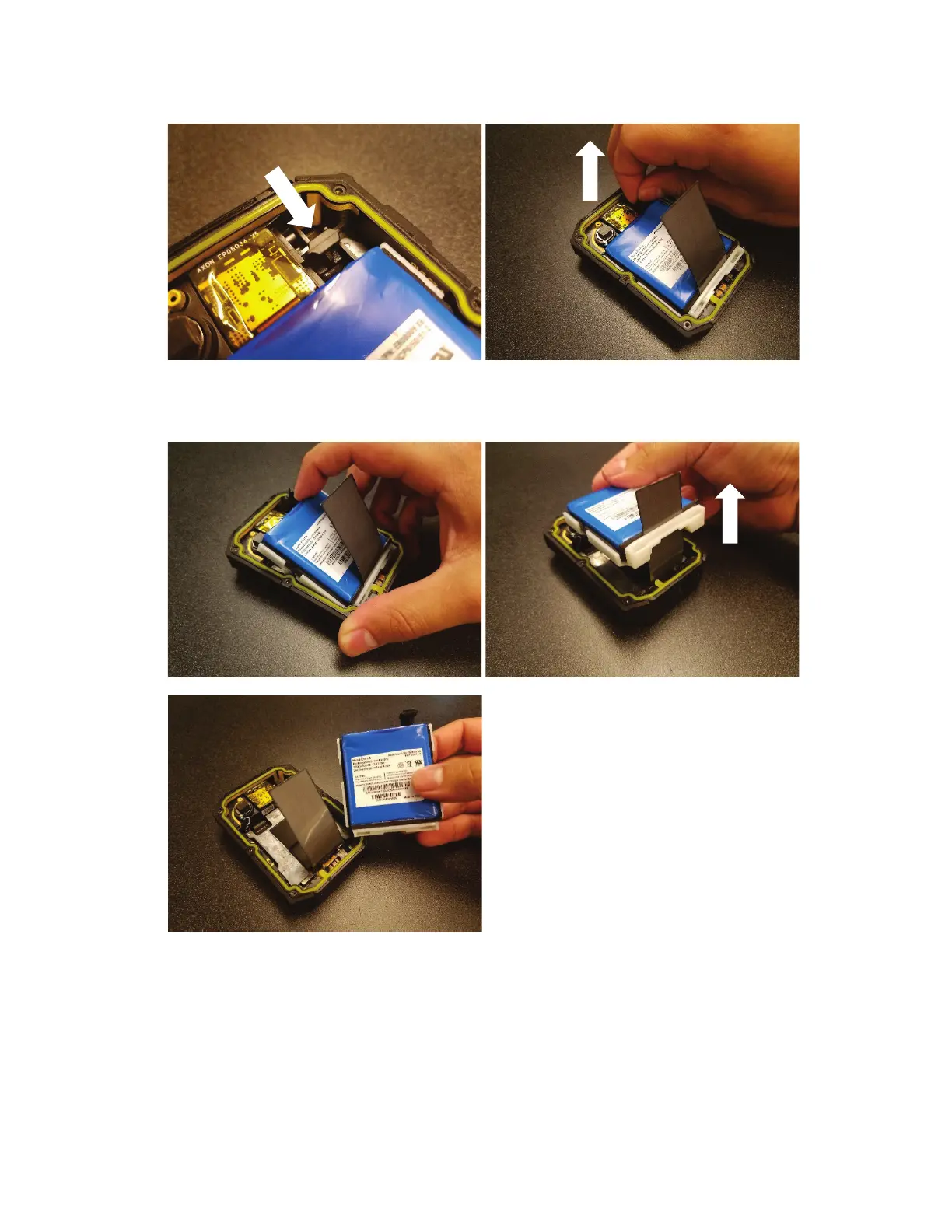

4. Disconnect the battery connector from the main board by lifting it up.
5. Lift battery assembly from top edge and slide the PGS through the slot in the bottom of the
assembly to remove from camera.

Axon AX1023 Specifications

General

Brand	Axon
Model	AX1023
Category	Digital Camera
Language	English
