Axon AX1023 Replacement Guide

Axon Body 3 Camera Battery Replacement
Last Updated: September 2019 Page 4 of 7
Torx is a trademark of Acument Intellectual Properties, LLC.  AXON, Axon, and Axon Body 3 are trademarks of Axon Enterprise,
Inc., some of which are registered in the US and other countries. For more information, visit www.axon.com/legal.
All rights reserved. © 2019 Axon Enterprise, Inc. Rev A

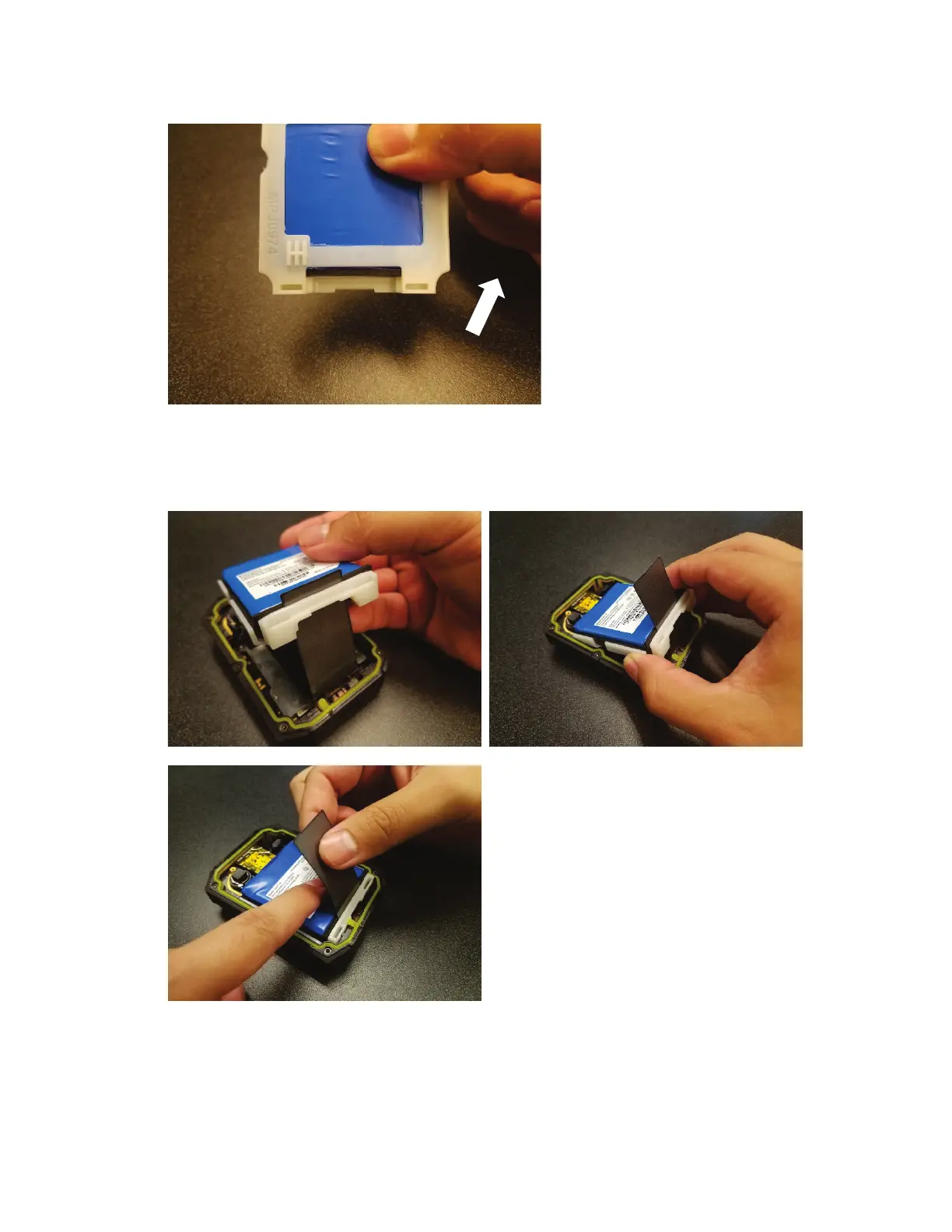

6. Locate the slot between the foam and plastic frame at bottom of new battery assembly.
7. Slide the PGS through the slot at the bottom of the battery assembly, insert top edge of
replacement battery into camera and press down bottom edge to secure. Make sure the PGS is
pulled all the way through the slot at the bottom of the battery assembly.

Axon AX1023 Specifications

General

Brand	Axon
Model	AX1023
Category	Digital Camera
Language	English
