Ayce TH-928T - Technical Drawing and Parts; Technical Drawing; Spare Parts List

1
2
3
4
5
6
7
8
9
Top cover
Rubber key
Tran sparent cover
Led
LCD bracket
LCD
PCB - C
Power plug
Screw
10
11
12
13
14
15
16
17
PCB - A
PCB - B
Bottom cover parts
Bottom cover
Battery
Hardware
Battery cover
Screw
NOTES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

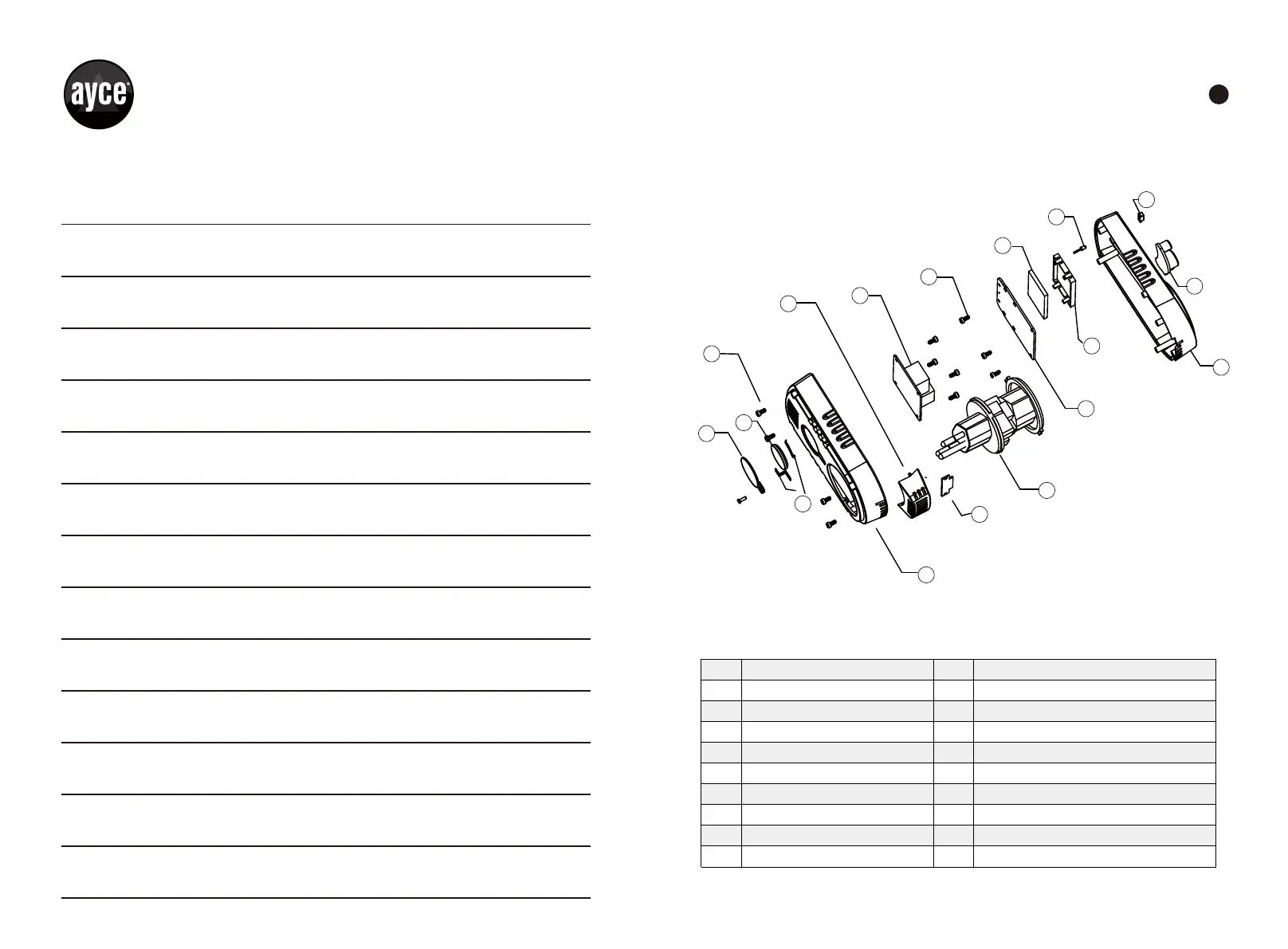

TECHNICAL DRAWING
SPARE PARTS LIST
