Ayon Crossfire - OPERATION AND CONNECTING; Installing Vacuum Tubes

5
Ayon Audio – Hart 18 – 8101 Gratkorn – Austria – Phone: +43 3124 24954
www.ayonaudio.com
（1） volume control knob
（2） remote window
（3） red backlit ayon logo
（4） source input selector with LED indicator
（5） mute LED indicator
（6） bias meter
（7） tube socket
（8） power tube AA62B
（9） output transformer R
（10）power transformer – high voltage
（11）power transformer - filament
（12）output transformer L
ACCESSORIES
Provided with the Ayon Crossfire amplifier are the following accessories:
2 x AA62B power tubes,
4 x 6H30 driver tubes,
1 x AC power cord,
1 x remote control,
1 x owner’s operating manual,
OPERATION
1. Installing the vacuum tubes
Please remove the vacuum tubes and the Crossfire from box and place the Crossfire on a firm,
level surface. Insert the vacuum tubes in accordance with the designated tube numbers into
their relative assigned sockets. Note: It is very important to insert the tubes in the correct
location. Important: Pay close attention to the direction of socket pins and their different
diameter (AA62B) of pins. If the direction is wrong and you force the tube, damage to the
socket pins will occur.
NEVER FORCE A VACUUM TUBE INTO PLACE. Tube should glide right in and have to fit tighten
(good pin contact). Ensure that all of the tubes are fully seated in their sockets.

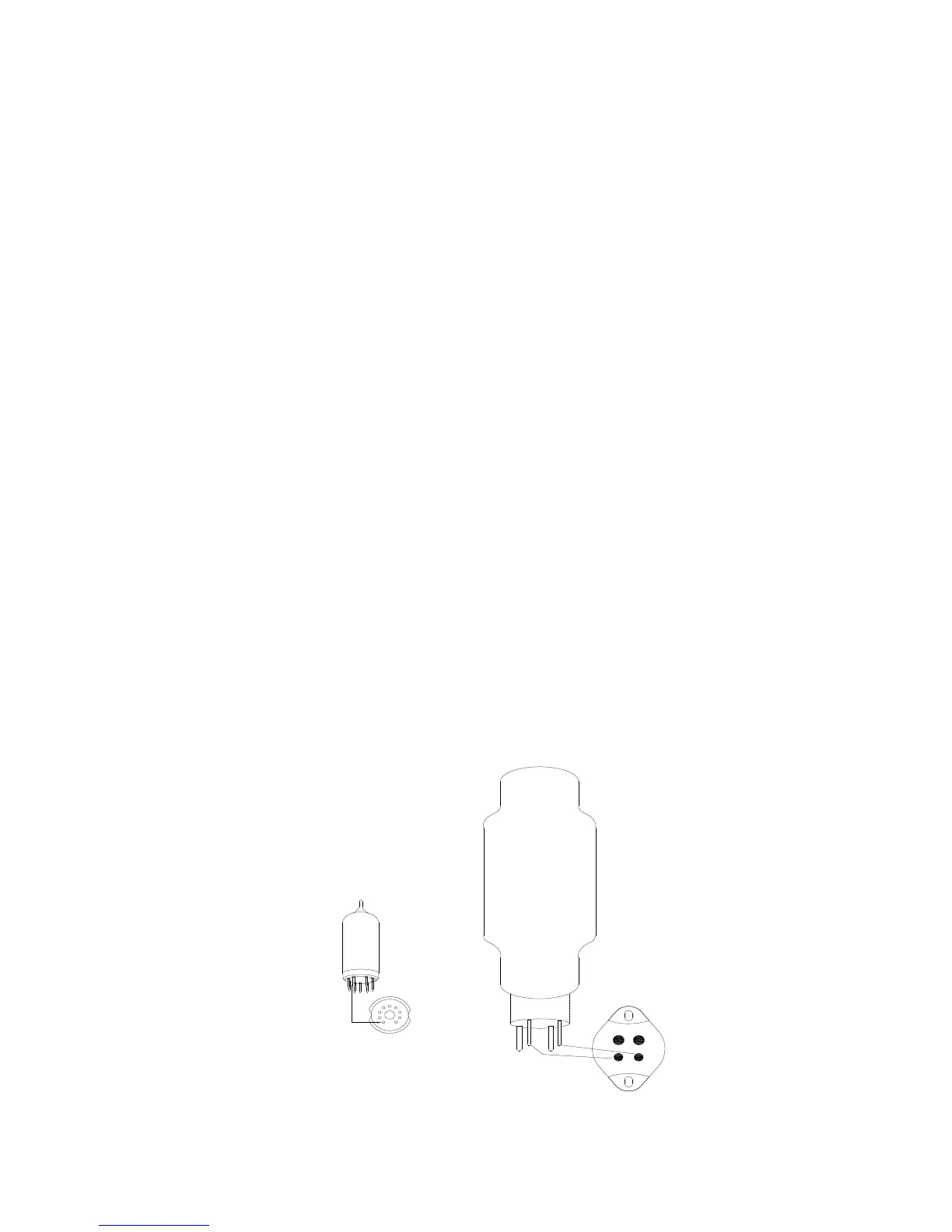

62B
6H30
the tubes
