Guidelines and operation of this device

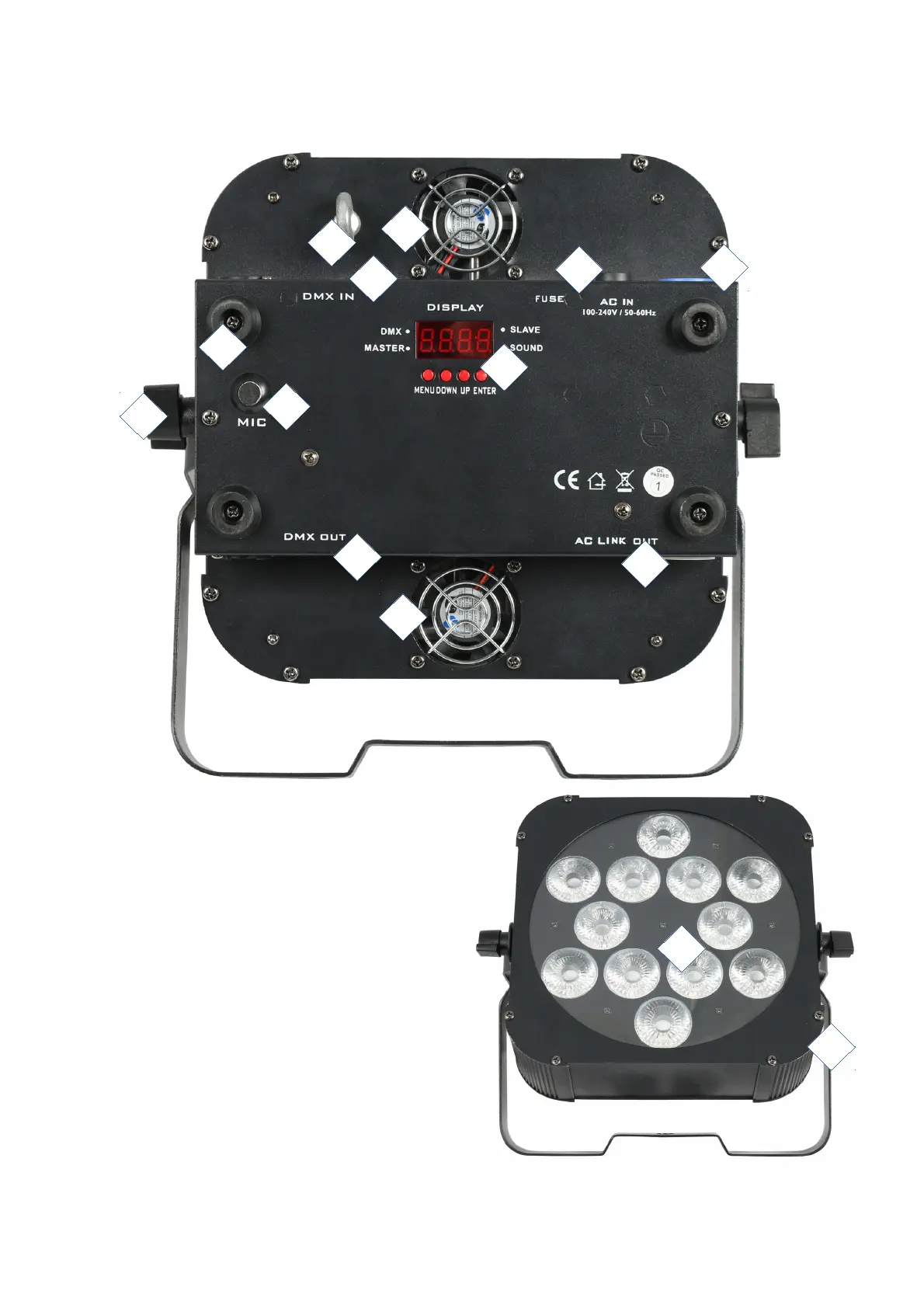

Note: The Compar 60 is shown in the images. The
Compar 50 has the same connectors in virtually the
same place.
1. tightening knob mounting bracket
2. rubber foot for horizontal use
3. microphone
4. fan
5. eyelet for optional safety cable
6. DMX input via 3-pin XLR
7. DMX output via 3-pin XLR
8. device fuse holder
9. Neutrik powerCON power input
10. Neutrik powerCON power output
11. LED display with menu buttons
12. LED projector output
13. bracket for upright and mounted use
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
