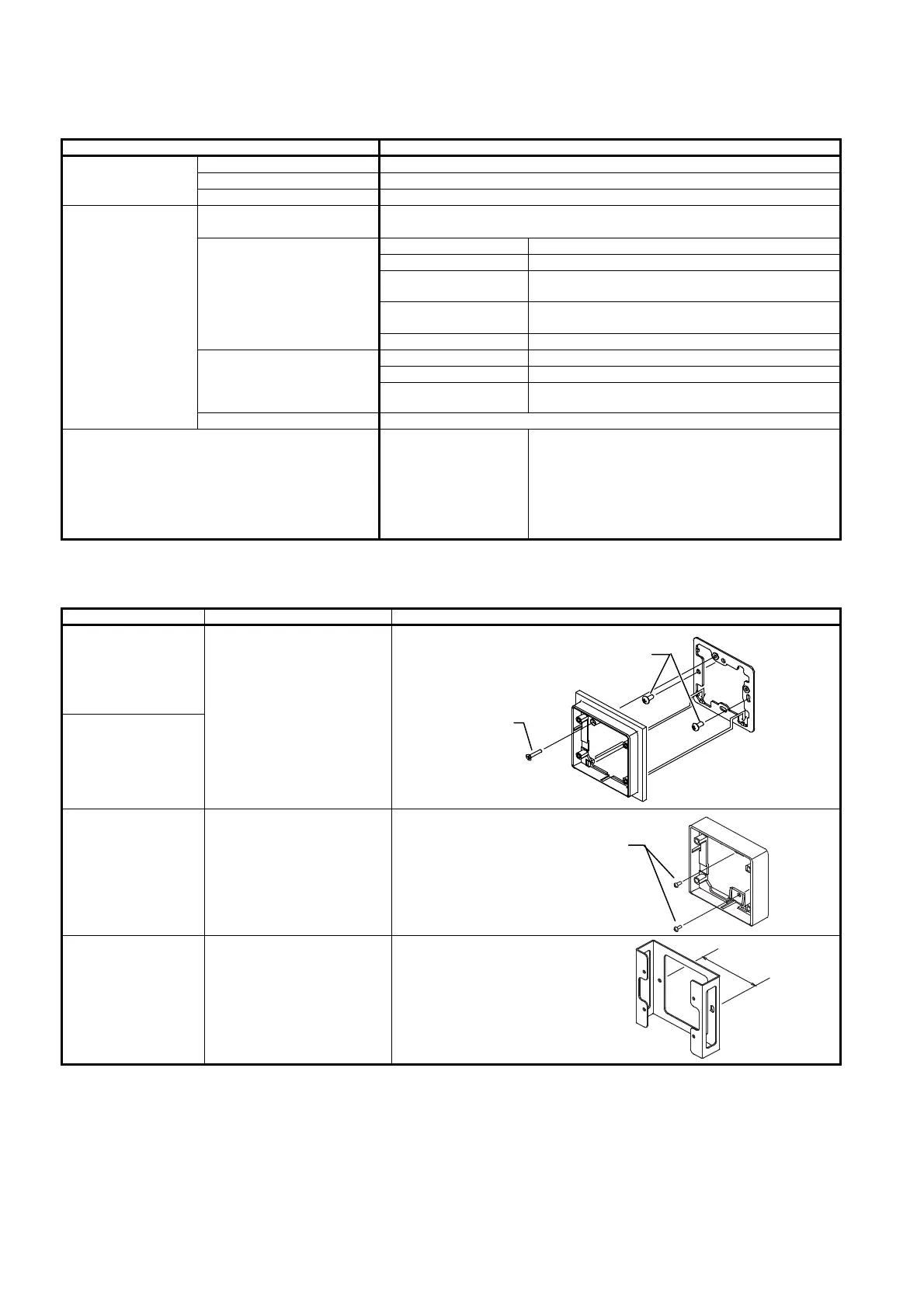

AB-7050
4
Part Numbers of Optional Items
Mount Neosensor with the following optional items (sold separately). Order necessary items.
Item Part number/Model number
Wall-direct mounting kit Part No. 83165803-001
Thermoplate mounting kit Part No. 83165803-011
Dedicated mounting kit
Multi-Thermocase mounting kit Part No. 83165803-021
Thermoplate for individual room
control
Models QY1100C and QY1100D
(with rotary switch)
Part No. DY2000A1022 For mounting one Neosensor, lengthwise
Part No. DY2000A1023 For mounting one Neosensor, crosswise
Part No. DY2000A2023 For mounting two Neosensor in 94mm (H) x 192mm (W)
outlet box, crosswise
Part No. DY2000A2024 For mounting two Neosensor in 106mm (H) x 198mm
(W) outlet box, crosswise
Thermoplate
Part No. DY2000A3022 For mounting three Neosensor, crosswise
Part No. DY2000A1021 For mounting one Neosensor, square
Part No. DY2000A2021 For mounting two Neosensor, crosswise
Thermoplate for open wiring
* Thermoplate for open wiring
is used for open wiring
installation.
Part No. DY2000A3021 For mounting three Neosensor, crosswise
Auxiliary device
Multi-Thermocase Model TY1100Z
LAN cable Part No. DY7210 For modular connection type Neosensor
* Use Part No. DY7210 or the cable that meets the
following:
TIA/EIA-568 Category 3 or over (⌀0.5 x 4 pairs)
* For the wiring length, refer to the
Specifications/Instructions document of the controller
in connection with Neosensor.
TIA/EIA: Telecommunications Industry Association/Electronic Industries Association
Dedicated mounting kits for each mounting method
Mounting method Mounting kit Contents
Mounting directly on a
wall
Mounting onto
Thermoplate for open
wiring
Wall-direct mounting kit
(Part No. 83165803-001)
Mounting onto
Thermoplate
Thermoplate mounting kit
(Part No. 83165803-011)
Mounting in
Multi-Thermocase
Multi-Thermocase mounting kit
(Part No. 83165803-021)
One flat-head machine
screw (M3 × 16)
Main unit
Mounting plate
Two pan-head machine screw (M4
×
8)
Man unit
Two tapping screws (M2.6
×
8)
Main unit
66.7 mm
Mounting screws are supplied with
the Multi-Thermocase (optional).
