Neosensor high sensitive type
Note:
* For wiring, secure more than 12.5 mm clearance from the Thermoplate surface to the inside of the mounting surface when installing
Neosensor with Thermoplate mounting kit.

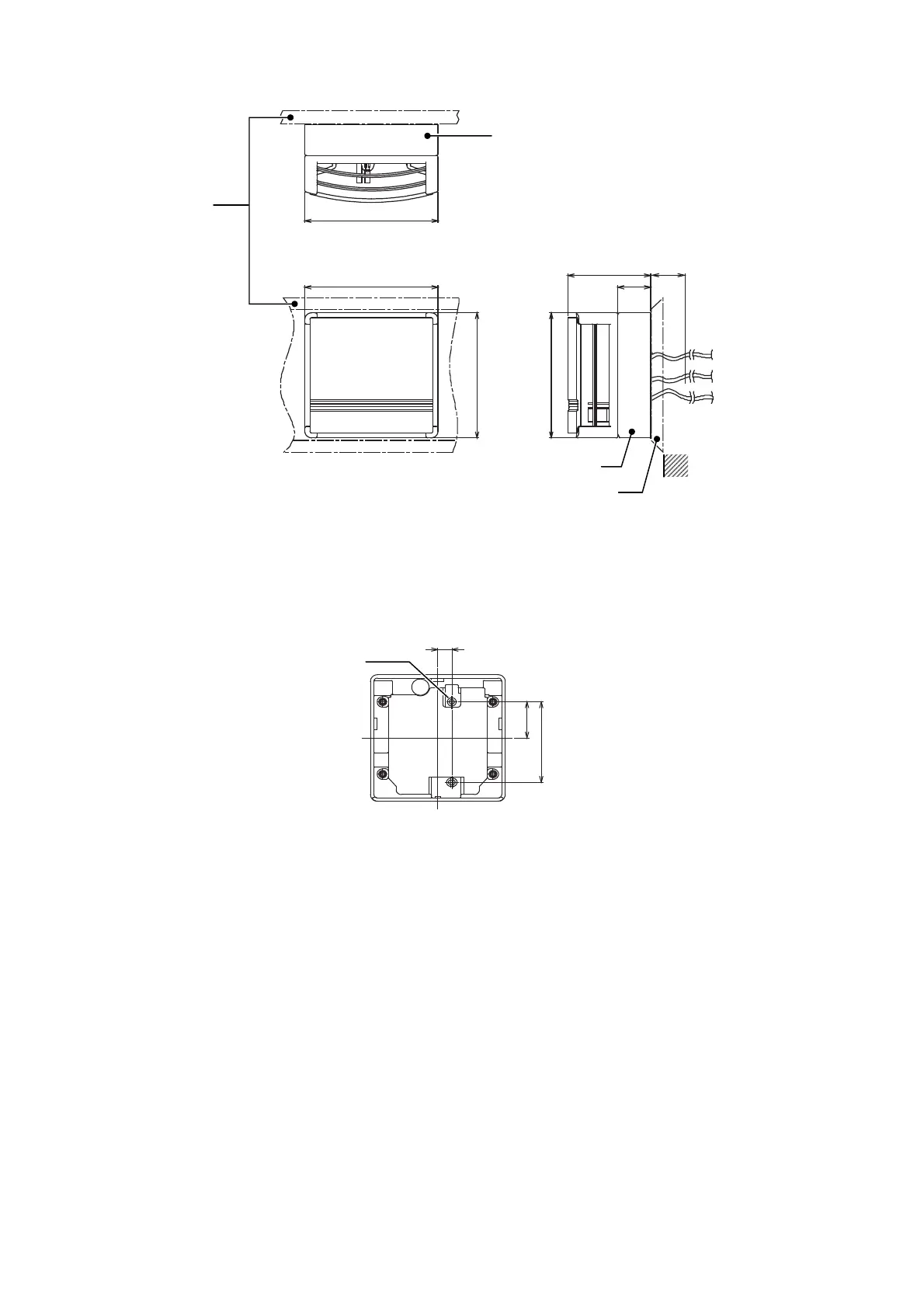

Figure 5. Mounting dimensions (mm): Neosensor high sensitive type with Thermoplate mounting kit on Thermoplate
Thermoplate mounting kit
Figure 6. Dimensions (mm): Mounting plate of Thermoplate mounting kit
8
⌀2.8 mounting hole
22
49
Thermoplate mounting kit
77
77
77
48
19
Thermoplate mounting kit
12.5*
77
Thermoplate
Thermoplate
(optional)
Lead wires
Mounting
surface

Azbil Neosensor Series Specifications

General

Control Mode	PID, ON/OFF
Input Type	Thermocouple, RTD
Output Type	Relay
Display	LED
Power Supply	100 to 240 VAC, 24 VAC/VDC
Communication	RS-485
Ambient Operating Humidity	35 to 85% RH (Non-condensing)
