Azbil Neosensor Series User Manual

AB-7050
7
Mounting plate
Note:
* Use JIS outlet box/box cover (JIS C8340:1999) with 66.7 mm mounting dimension.

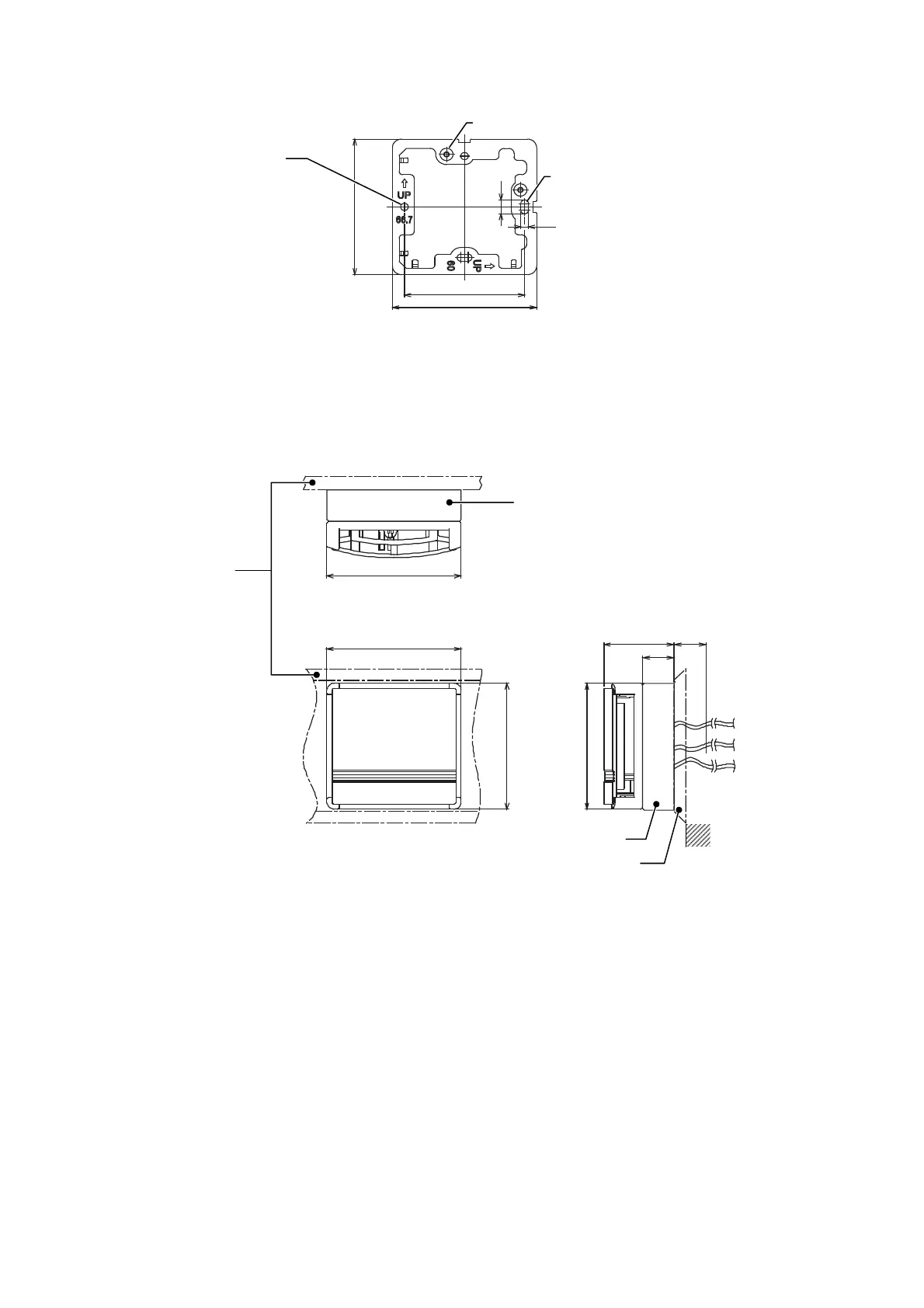

Figure 3. Dimensions (mm): Mounting plate of Wall-direct mounting kit
Dimensions: Neosensor with Thermoplate Mounting Kit (on Thermoplate)
Neosensor
Notes:
*1 For wiring, secure more than 12.5 mm clearance from the Thermoplate surface to the inside of the mounting surface when installing
Neosensor with Thermoplate mounting kit.
*2 The number of lead wires differs depending on the models. Note that the Pt100 temperature sensor model with modular connection has a
modular jack instead of lead wires. (Model TY7043Z0P01(-1))
Figure 4. Mounting dimensions (mm): Neosensor with Thermoplate mounting kit on Thermoplate
80
8.2
4.2
66.7*
80
⌀4.2 mounting hole
Mounting screw (M3)
Mounting hole
77
77
77 77
41
19
Thermoplate mounting kit
Thermoplate
(optional)
Thermoplate mounting kit
12.5*
1
Thermoplate
Lead wires*
2
Mounting
surface
