Azbil Neosensor Series User Manual

AB-7050
6
Dimensions: Neosensor with Wall-Direct Mounting Kit
Neosensor
Notes:
*1 For wiring, secure more than 15 mm clearance inside the mounting surface when installing Neosensor with Wall-direct mounting kit.
*2 The number of lead wires differs depending on the models. Note that the Pt100 temperature sensor model with modular connection has a
modular jack instead of lead wires. (Model TY7043Z0P01(-1))

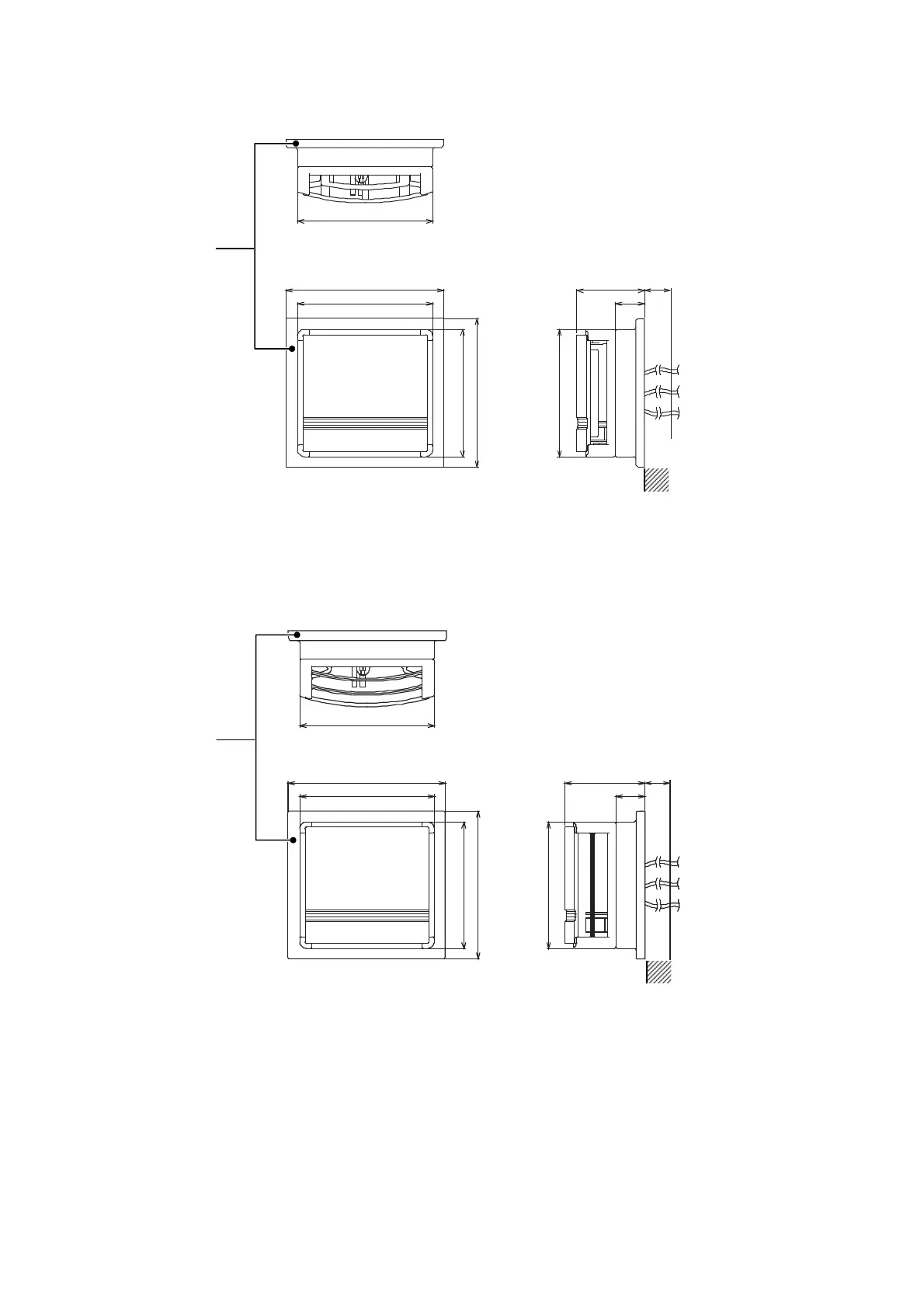

Figure 1. Mounting dimensions (mm): Neosensor with Wall-direct mounting kit
Neosensor high sensitive type
Note:
* For wiring, secure more than 15 mm clearance inside the mounting surface when installing Neosensor high sensitive type with Wall-direct
mounting kit.
Figure 2. Mounting dimensions (mm): Neosensor high sensitive type with Wall-direct mounting kit
Wall-direct mounting kit
77
90
77
77 90
77
38.5 15*
1
16.5
Mounting
surface
Lead wires*
2
Wall-direct mounting kit
77
90
77
77
45.5 15*
16.5
Mounting
surface
77 90
Lead wires
