AB-7051
13
Wiring

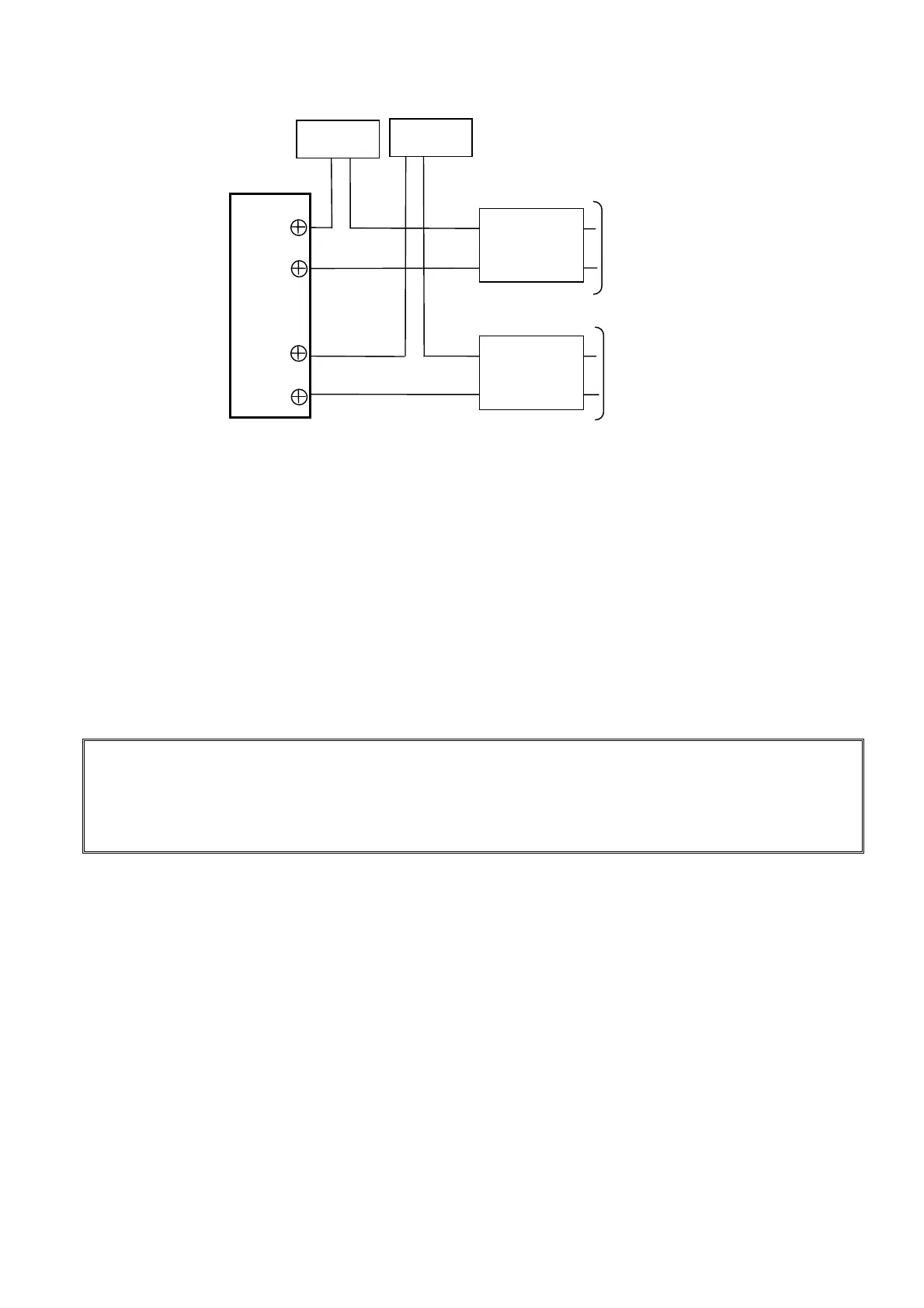

Figure 15. Wire connection: Neosensor (two-wire sensor, 24 V DC power)
Precautions for wiring
1.25 mm
2
or greater shielded multi-core cables (JIS CVV-S) are recommended. Be sure to ground the shielded cable on the
device (connected to the Neosensor) side.
The maximum cable length is 100 m.
Notes for signal line connection
Induction current can flow from the Neosensor (humidity sensor, temperature/humidity sensor models) to the controller input
circuit, and inadequate time constant of the controller can generate noise. To prevent such things, see the following.
No problem will occur for connecting Neosensor to our controller.
Provide a controller with low pass filter (40 dB or higher removal ratio in normal mode) that receives signals from
Neosensor.
For insufficient removal ratio, provide an isolator on the controller input line.
IMPORTANT:
When Neosensor is faulty, reduced output may cause over-humidification. Provide safety measure against
over-humidification.
Corrosive gas or organic solvent can cause sensing error, shorten the service life, or damage the Neosensor.
Before using Neosensor in abnormal atmosphere, consult with our salesperson.
Controller Controller
- + - +
Blue
Black
Red
White
H+
H-
T+
T-
Humidity Temperature
24 V DC
0 V
24 V DC power
Model RYY792D
24 V DC power
Model RYY792D
24 V DC
0 V
Model HTY7043D4400
Model HTY7043D4400-1
Model HY7043D4000
Model HY7043D4000-1
Model HTY7043D4400
Model HTY7043D4400-1
Model TY7043D0400
Model TY7043D0400-1
