Azbil TY7043D User Manual

AB-7051
7
Dimensions: Main Unit with Thermoplate Mounting Kit (on Thermoplate)
Neosensor
Notes:
1 For wiring, secure more than 12.5 mm clearance from the Thermoplate surface to the inside of the mounting surface when installing
Neosensor with Thermoplate mounting kit.
2 Models HY7043D (humidity sensor model) and TY7043D (temperature sensor model) has two wires as shown in the above figure.
Model HTY7043D (temperature/humidity sensor model) has four lead wires.

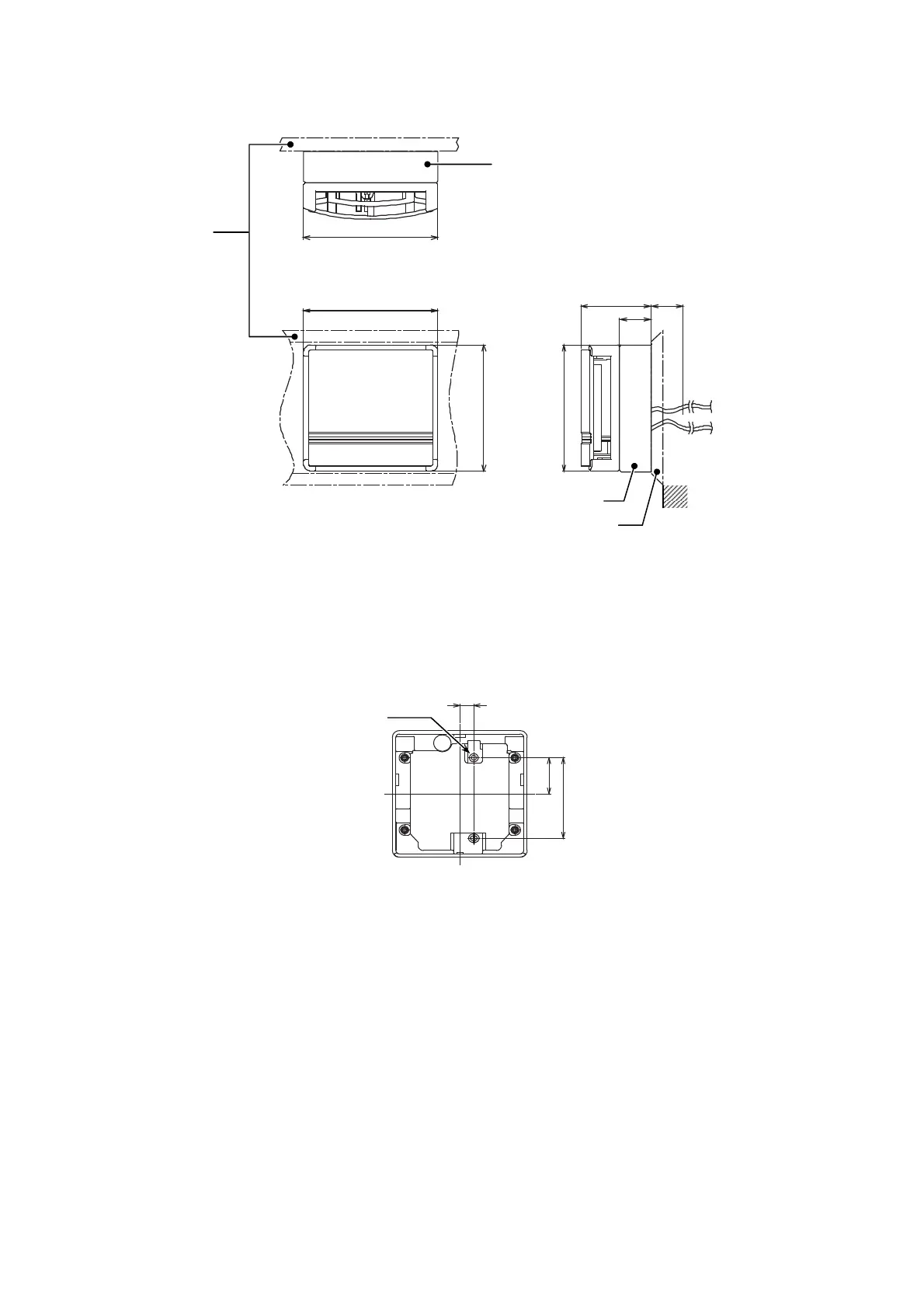

Figure 3. Mounting dimensions (mm): Neosensor with Thermoplate mounting kit
Thermoplate mounting kit
Figure 4. Dimensions (mm): Mounting plate of Thermoplate mounting kit
8

2.8 mounting hole
22
49
77
77
77 77
41
19
Thermoplate mounting kit
Thermoplate
(optional)
Thermoplate mounting kit
12.5*
1
Thermoplate
Lead wires*
2
Mounting
surface
